Daikin 12,000 BTU Oterra Series Ductless Mini Split Condenser | R32 | Heat Pump

The Daikin RXF12AXVJU is a 12,000 BTU Oterra Series outdoor heat pump condenser designed for a compatible single-zone ductless mini-split system. Installed outside the building, it contains the inverter compressor, outdoor heat exchanger, and fan responsible for transferring heat between the indoor zone and outdoor air. When connected to its approved Daikin indoor air handler, the condenser supports both cooling and heating operation.

This listing is for the outdoor condenser only. It does not include the indoor air handler, refrigerant line set, control wiring, mounting equipment, condensate components, or other materials needed to create a complete ductless system.

Key Features

• 12,000 BTU cooling capacity: Provides a nominal one-ton cooling capacity as part of the approved Oterra system
• 13,500 BTU heating capacity: Reverses the refrigeration cycle to deliver heat through the matched indoor unit
• Inverter swing compressor: Varies compressor output to respond to changing heating and cooling demand
• R32 refrigerant: Engineered for a compatible Daikin system using R32 refrigerant
• Single-zone operation: Connects to one approved indoor unit for dedicated control of an individual room or area
• Protected outdoor coil: Features an anti-corrosion treatment intended to help protect the heat exchanger during outdoor operation

Instead of relying only on fixed on-and-off operation, the inverter compressor adjusts its speed as conditions change. This helps the complete system maintain the selected indoor temperature while managing energy use. Automatic defrost supports heating performance when frost forms on the outdoor coil, and automatic restart helps return the system to operation after a power interruption.

When paired with the compatible indoor unit, the system has published efficiency ratings of 21 SEER2, 12.5 EER2, and 10.2 HSPF2. These ratings apply to the complete certified system combination rather than the condenser by itself. The outdoor unit has a published cooling sound level of approximately 46 dB(A).

The cabinet measures approximately 26-1/2 inches wide, 21-11/16 inches high, and 11-3/16 inches deep. Its compact outdoor footprint may be useful for residential properties and other installations where available exterior space is limited.

Compatibility and Installation Notes

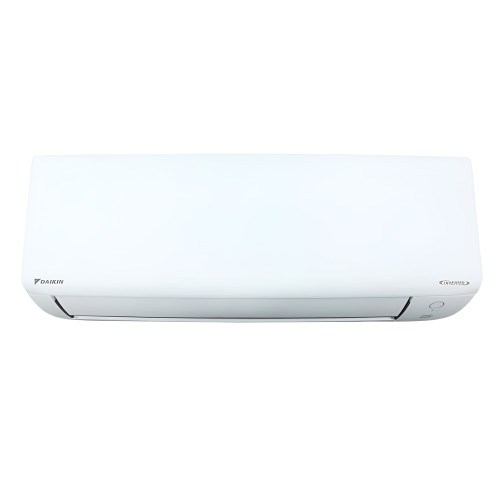

The RXF12AXVJU is designed to pair with the Daikin FTXF12AXVJU Oterra Series wall-mounted indoor air handler. Equipment substitutions should not be made without confirming an approved Daikin match, as compatibility affects operation, certified efficiency, capacity, and warranty coverage.

The condenser requires 208/230V, single-phase, 60 Hz electrical power. Published refrigerant connections measure 1/4 inch for the liquid line and 3/8 inch for the suction line. Maximum overcurrent protection is listed at 15 amps.

Installation should be performed by a qualified HVAC professional according to Daikin instructions and applicable codes. The installer must verify the equipment match, electrical circuit, disconnect, refrigerant piping, communication wiring, mounting surface, required clearances, evacuation, leak testing, and requirements for R32 A2L refrigerant.

A professional load calculation should be completed before selecting capacity. Climate, insulation, windows, room layout, ceiling height, occupancy, and internal heat sources can all influence heating and cooling requirements.

Frequently Asked Questions

Is the indoor air handler included?
No. This product is the RXF12AXVJU outdoor condenser only.

Which indoor unit is compatible?
The approved single-zone match is the Daikin FTXF12AXVJU wall-mounted air handler.

Can this condenser provide heating?
Yes. It operates as a heat pump when connected to the approved indoor unit.

What refrigerant does it use?
The RXF12AXVJU is designed for R32 refrigerant.

Does the condenser require professional installation?
Yes. Professional installation is necessary for proper electrical work, refrigerant handling, system commissioning, and applicable warranty requirements.

Confirm the matching indoor unit and required installation materials before ordering this Daikin Oterra condenser.
