Valves & Access Fittings

Every gauge hookup, every evacuation and every charge adjustment goes through a valve or access fitting. When those small parts leak, a system that was charged correctly slowly loses refrigerant, efficiency drops, and eventually the compressor runs hot and short on oil. A leaking Schrader core or a missing cap is one of the most common and most preventable leak sources a tech will find.

This category covers Supco access valves and fittings: Schrader access fittings and replacement cores, line tap and bullet piercing valves, line service valves, solder-free couplers and flare fittings, access tees, locking refrigerant caps including A2L-identified styles, and vibration absorbers for compressor lines. Service techs use these daily for repairs and upgrades. Appliance technicians rely heavily on piercing valves and access tees for refrigerators, freezers and small sealed systems that never had service ports from the factory.

How Access Valves and Fittings Work

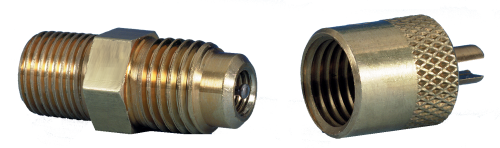

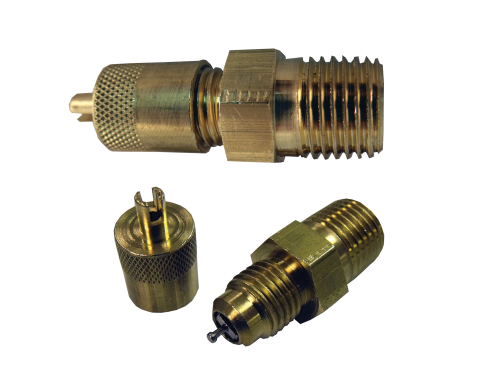

Schrader access fittings and cores

A Schrader access fitting is a threaded port, usually 1/4-inch SAE flare, with a spring-loaded valve core inside. When a hose with a core depressor connects, the pin opens and refrigerant flows. When the hose comes off, the spring and the core's seal close the port. The cap is a secondary seal, and on most fittings it is the more reliable one. Access fittings come as brazed-in stubs, tees and port extensions, and cores come in standard and high-temperature versions.

Line tap and bullet piercing valves

Piercing valves clamp around a section of tubing. Tightening the valve drives a needle through the tube wall, and a gasket seals around the hole. Bolt-on line tap valves use a two-piece saddle, while bullet-style valves use a compact clamp design. They allow access to a sealed system with no brazing, which is why appliance techs use them on refrigerators and freezers. Treat them as service access rather than a permanent fix. Many techs braze in a proper access fitting once the repair is complete, because gaskets can degrade and leak over time.

Line service valves

Line service valves are the liquid and suction valves on a condensing unit or heat pump. They isolate the outdoor unit charge from the line set so a tech can pump down, repair or replace components without losing refrigerant. They come in front-seating and ball valve styles and include a Schrader port for gauge access.

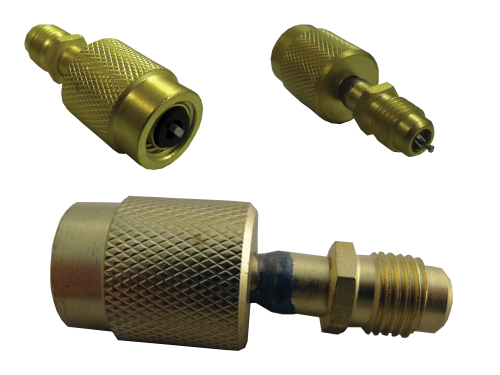

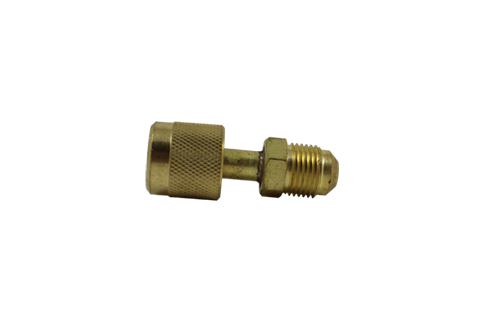

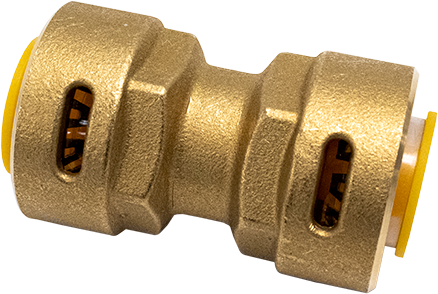

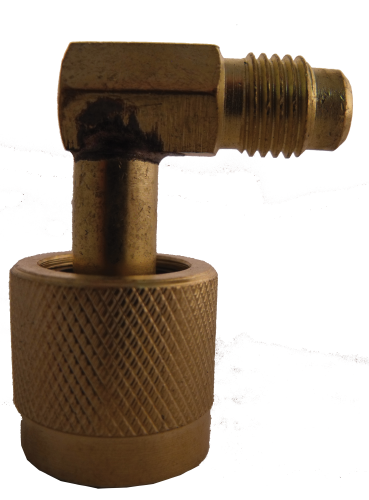

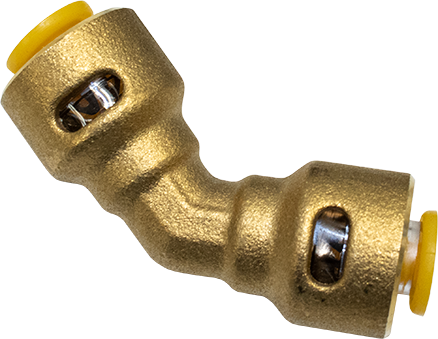

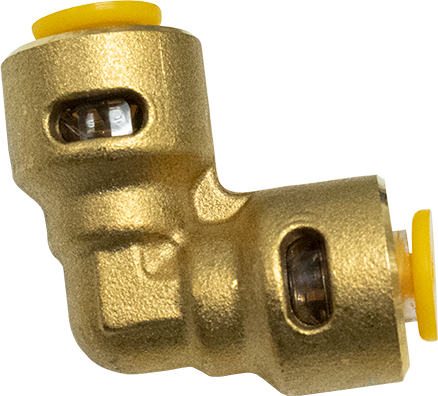

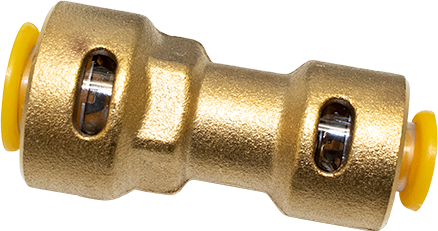

Solder-free couplers and flare fittings

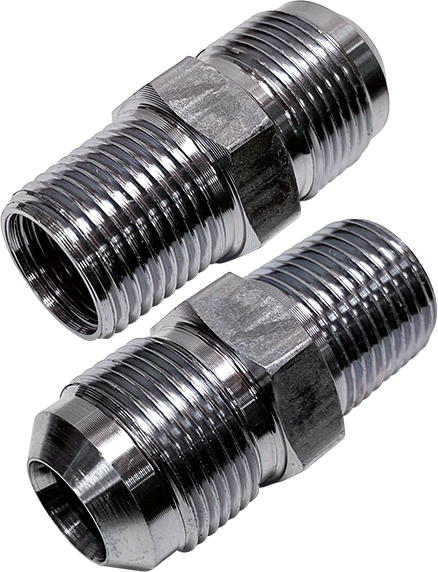

Mechanical couplers and flare fittings join tubing without an open flame. Flare connections use a 45-degree flared tube end compressed against a matching fitting. Other solder-free designs use compression or mechanical sealing. They are useful where brazing is impractical, such as inside cabinets near plastic components, though they must be rated for the refrigerant and pressure and installed exactly to specification.

Locking caps and vibration absorbers

Locking refrigerant caps require a special key to remove, preventing tampering and refrigerant huffing at outdoor service ports. Many mechanical codes require locking or tamper-resistant caps on accessible outdoor ports. A2L-identified caps carry color or markings that alert technicians to a mildly flammable refrigerant such as R-454B or R-32. Vibration absorbers are flexible braided hoses installed in compressor suction and discharge lines to isolate vibration and prevent fatigue cracks in copper tubing.

Signs a Valve or Fitting Needs Replacing

Bubbles at a Schrader core during leak check. A leaking core is a common slow-leak source. Replace the core and install a sealing cap.
Missing or damaged caps. An uncapped port depends entirely on the core. Install new caps, and use locking caps where required.
Oil residue around a fitting or piercing valve. Oily dirt usually marks a refrigerant leak because oil travels with the refrigerant.
Service valve stem or cap leaks. Leaks at the stem packing or under the cap are found with soap bubbles or an electronic detector.
Cracked tubing near the compressor. Repeated cracks at the same point suggest vibration stress and a need for a vibration absorber or better line support.
Stripped or damaged flare threads. A port that will not take a hose or cap securely needs to be replaced.

How to Choose the Right Valve or Fitting

Tube size

Measure the outside diameter of the tubing. Piercing valves are sized to specific tube ODs, commonly 1/4, 5/16, 3/8 inch and larger, and must fit snugly. Access tees and service valves are sized to line set connections.

Connection type

Brazed fittings give the most durable, leak-resistant result. Flare and solder-free fittings save time and avoid flame but demand careful installation. Piercing valves are the fastest and the least permanent.

Refrigerant, pressure and temperature rating

Confirm the part is rated for the refrigerant and the system's working pressure. R-410A and A2L systems run at higher pressures than legacy R-22 systems. For cores and fittings near brazed joints, check temperature ratings, or remove cores before brazing.

Code requirements

Check local mechanical code for locking cap requirements on outdoor or accessible ports. On A2L equipment, follow the manufacturer's instructions for port identification and caps.

Cross-referencing

For line service valves, use the OEM part number from the condensing unit and confirm tube size and valve style. Supco cross-reference data and product specifications help match other fittings by size and thread.

Part	Installation Method	Best Use	Permanence
Brazed access fitting or tee	Brazed into the line	Adding a permanent service port	Permanent
Schrader valve core	Threaded into access fitting with core tool	Replacing leaking or damaged cores	Serviceable
Line tap / bullet piercing valve	Clamped onto tubing, needle pierces wall	Diagnosis and service on systems without ports	Temporary to semi-permanent
Line service valve	Brazed or flared at the outdoor unit	Isolating outdoor unit charge	Permanent
Solder-free coupler / flare fitting	Mechanical or flare connection	Joining tubing where flame is impractical	Permanent when correctly installed and rated
Locking refrigerant cap	Threaded on, removed with key	Tamper resistance and code compliance	Serviceable
Vibration absorber	Brazed into compressor lines	Isolating compressor vibration	Permanent

Installation and Safety Tips

Valve and fitting work opens or accesses the refrigerant circuit. Refrigerant recovery and handling require EPA Section 608 certification, and these jobs should be done by a qualified technician.

Wear safety glasses and gloves. Liquid refrigerant can cause frostbite and eye injury instantly, especially when removing cores under pressure.
Use a core removal tool to replace cores. A proper tool lets you change a core with the system under pressure and minimal loss. Removing cores during evacuation also speeds up pulling a vacuum.
Remove cores before brazing. Heat can damage the core seal. Pull the core, braze with nitrogen flowing, let the fitting cool, then reinstall.
Mount piercing valves on clean, round tubing. Sand the tube lightly, position the valve on a straight section away from bends, and tighten evenly to the manufacturer's instructions.
Make flares correctly. Use a quality flaring tool, cut tube square, deburr, and torque flare nuts to specification. Many A2L and high-pressure applications have specific requirements for flare connections.
Install vibration absorbers as directed. Typically they go close to the compressor and are oriented parallel to the compressor crankshaft. Never install one under tension or compression.
Cap every port. Hand-tighten caps with their seals in place, and install locking caps where code requires.
Leak check your work. Pressure test with dry nitrogen and use bubble solution or an electronic detector on every new connection.

Part Details & Shipping

Supco has made access valves and service fittings for the refrigeration trade since 1945. HVAC365 lists tube sizes, thread types and specifications on each product page, with cross-reference and spec sheet information where available, so you can match the part to the job. Orders ship in 3-5 business days.

Frequently Asked Questions

Are piercing valves a permanent repair?

They can stay on a system, but most experienced techs treat them as temporary. The gasket can harden or loosen over time and start leaking. When possible, replace a piercing valve with a brazed access fitting after the repair.

Why does my Schrader port keep leaking after I replace the core?

Check for damaged threads or a scored seat in the fitting body, debris under the core seal, or an overtightened core. Always install a cap with a good seal. If the fitting body is damaged, replace the fitting.

Are locking caps required by code?

Many jurisdictions using the International Mechanical Code and International Residential Code require locking or tamper-resistant caps on outdoor refrigerant ports that are readily accessible. Requirements vary, so check your local code.

What do A2L locking caps indicate?

They identify service ports on systems using mildly flammable A2L refrigerants such as R-454B and R-32, so the next technician knows what refrigerant and safety procedures apply before connecting gauges.

Can I use solder-free fittings on high-pressure refrigerants?

Only fittings specifically rated for that refrigerant and working pressure, installed exactly per the manufacturer's instructions. Check the product specifications before use.

Where should a vibration absorber go?

Generally as close to the compressor as practical, in both suction and discharge lines when needed, aligned parallel to the compressor crankshaft. Anchor the line on the far side of the absorber so vibration does not pass down the tubing.
