The control transformer is the small, often overlooked part that runs an entire HVAC system. It takes line voltage, typically 120, 208, 240 or 480 volts, and steps it down to the 24 volts AC that powers the thermostat, contactor coil, gas valve, ignition control, zone dampers and relay boards. When it dies, the equipment goes completely quiet even though there is still full power at the disconnect. That is why a failed transformer is one of the most common no-cool and no-heat calls a tech runs in a season.

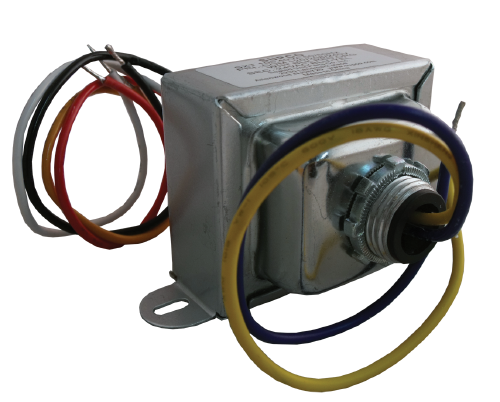

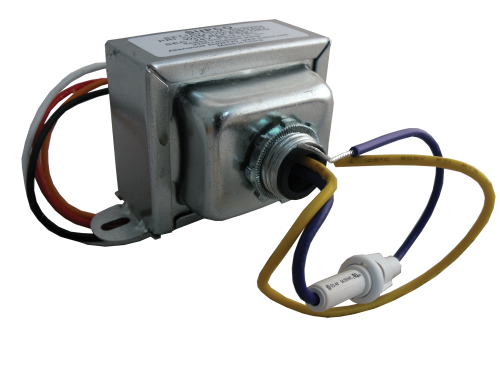

This category carries Supco 24VAC control transformers in common VA ratings, multi-tap primary models that cover several supply voltages with one part, and fan centers that combine a transformer and blower relay. Service techs keep a couple of multi-tap units on the truck because they fit almost any residential job. Homeowners and maintenance staff usually arrive with an OEM part number from a furnace or air handler and need a dependable equivalent.

How a 24VAC Control Transformer Works

A control transformer is two coils of copper wire wound on a laminated steel core. Line voltage feeds the primary winding, and the magnetic field it creates induces a lower voltage in the secondary winding. The ratio of turns between the two windings sets the output. On a typical HVAC unit the primary is wired to the line side of the equipment and the secondary delivers about 24 volts to the R and C terminals of the control board or terminal strip.

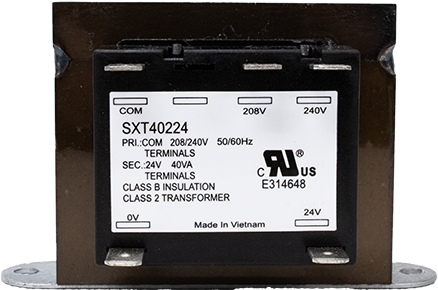

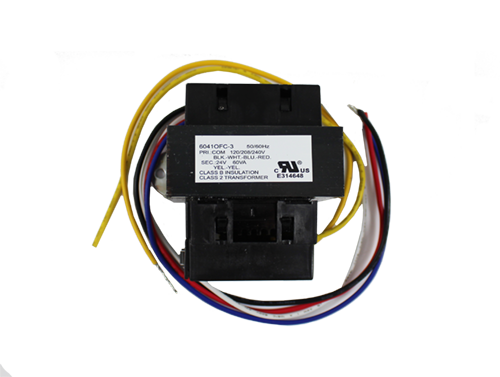

Multi-tap transformers have several primary leads, each matched to a different input voltage. A common color pattern is a black common lead with separate leads for 120V, 208V and 240V, and some models add a 480V tap. You connect the common and the one tap that matches your supply, then cap and insulate the unused leads individually. Always read the label on the transformer you are installing, because lead colors are not standardized across every manufacturer.

The VA (volt-amp) rating tells you how much load the transformer can carry. A 40VA transformer delivering 24 volts can supply roughly 1.67 amps on the secondary. Every device on the control circuit draws from that budget: the contactor coil, the gas valve, the inducer relay, the thermostat, any humidifier solenoid, zone panel or UV light that someone tied into R and C. Exceed the budget and the transformer runs hot, voltage sags, and eventually the winding opens or the internal thermal protection trips.

A fan center mounts a 24V transformer and a relay on one plate or box, so a thermostat signal on G can switch line voltage to the blower motor. They are common on older air handlers, electric furnaces and fan coils with no blower control board.

Signs the Transformer Is Failing

Transformers fail in a few predictable ways. Knowing the pattern saves time at the unit and helps you find the real cause instead of just swapping the part.

  • No 24 volts at R and C with line voltage present on the primary. This is the classic dead transformer. Confirm voltage on the primary leads first, then measure the secondary with the load disconnected.
  • Low secondary voltage under load. Readings that drop well below 24V when the contactor pulls in, or a contactor that chatters, point to a weak transformer or an overloaded circuit.
  • Burnt smell, discolored tape or a swollen case. Overheating from a short or overload usually leaves visible evidence.
  • A blown low-voltage fuse on the control board. The fuse is protecting the transformer. Something on the control circuit shorted. Find that short before you install a new transformer.
  • Thermostat goes blank intermittently. A transformer on the edge of failure, or one with a loose spade connection, can cause random resets and lost thermostat programming.

The most important rule: transformers rarely die on their own. A thermostat wire chewed by a weed trimmer, a failed contactor coil or a wire rubbed through on sheet metal are the usual culprits. Find the short before energizing the new part, or you will be replacing another one tomorrow.

How to Choose the Right Replacement Transformer

Matching a control transformer is straightforward if you work through these specifications in order.

Primary voltage

Match the supply voltage feeding the transformer. A single-voltage 120V transformer installed on a 240V circuit will fail immediately. Multi-tap models give you flexibility, which is why they work well as a universal truck stock part. On 208/230V equipment, use the 208V tap when the measured supply is near 208, and the 240V tap when it is near 240, so the secondary stays close to 24 volts.

Secondary voltage

Nearly all residential and light commercial HVAC controls run on 24VAC. Some refrigeration, commercial and specialty controls use other secondary voltages, so confirm what the equipment calls for before ordering.

VA rating

Match or exceed the original VA rating. Never go lower. Going up one size, from 40VA to 50VA or 75VA for example, is common when accessories such as zone panels, humidifiers or air cleaners have been added to the control circuit. A larger VA rating does not force more current into the circuit; the load only draws what it needs.

Mounting style and footprint

Transformers come in foot-mount, plate-mount, dual-mount and junction-box styles. Plate-mount units often attach directly over a standard 4-inch electrical box knockout. Measure the existing mounting holes and the space available in the cabinet so the new part fits without modification.

Connections and features

Note whether the original used spade terminals, screw terminals or wire leads, and whether it had a built-in secondary breaker, a useful protection on long thermostat wire runs.

Cross-referencing OEM part numbers

Most furnace and air handler manufacturers use generic transformers with their own part numbers. Supco publishes cross-reference data that maps those OEM numbers to its equivalents. Use the OEM number from the old transformer label or the unit's parts list, then confirm primary voltage, secondary voltage, VA and mounting style against the replacement before you order.

VA Rating Approx. Secondary Amps at 24V Typical Application
20VA 0.83 A Single controls, small relays, light-duty accessory circuits
40VA 1.67 A Standard residential furnace, air handler or condensing unit
50VA 2.08 A Residential systems with a humidifier, UV light or extra relay
75VA 3.13 A Zoned systems, heat pumps with added controls, light commercial
100VA and up 4.17 A and up Larger zone panels, multiple dampers, commercial control circuits

Installation and Safety Tips

Transformer replacement involves line voltage, so it should be handled by a qualified technician or electrician. These are the practices experienced techs follow on every job.

  1. Kill the power and verify it. Turn off the disconnect and the breaker, then test with a meter you know is working.
  2. Photograph the wiring before removal. A quick picture of the primary and secondary connections prevents mistakes, especially on boards with several low-voltage terminals.
  3. Find the cause of failure. Check thermostat wire, outdoor unit wiring and accessory loads for shorts to ground or between conductors. Measure contactor and relay coil resistance.
  4. Select the correct primary tap. Use only the tap that matches your measured supply. Cap every unused lead separately with a wire nut or insulated terminal and tuck them away from sharp edges.
  5. Observe phasing on dual-transformer systems. When two transformers feed a shared control circuit, such as some zoning or dual-fuel setups, incorrect phasing can cause shorted secondaries. If you are not sure, isolate the secondaries or use an isolation relay.
  6. Test before closing up. Restore power, confirm 24 to 28 volts at R and C with no call, then run the system through a full cycle and recheck voltage under load.

Part Details & Shipping

HVAC365 stocks Supco control transformers because Supco has been making dependable replacement parts for the HVAC and appliance trade since 1945. Each product page includes the specifications you need to match the part, including primary taps, VA rating and mounting style, along with cross-reference and spec sheet information where available. These items ship in 3-5 business days, so a tech can order for the next service call and a homeowner can get a replacement to their contractor without a long wait.

Frequently Asked Questions

Can I replace a 40VA transformer with a 75VA transformer?

Yes. Going to a higher VA rating with the same primary and secondary voltages is acceptable and often a good idea when accessories have been added. The transformer will run cooler and supply voltage will stay more stable under load. The only limits are physical fit and the rating of any fuse or breaker on the control board, which protects the wiring and should not be oversized.

Why does my new transformer keep burning out?

There is a short or an overload somewhere on the 24V circuit. Common causes include damaged thermostat wire, a shorted contactor coil, chewed wire at the outdoor unit and accessories that draw more than the transformer can supply. Disconnect loads one at a time and measure resistance to ground to locate the problem. Adding a fuse or a transformer with an integral breaker will protect the new part while you troubleshoot.

What do I do with the unused primary leads on a multi-tap transformer?

Cap each unused lead individually with an appropriately sized wire nut or insulated cap, and secure them so they cannot contact each other, the cabinet or any terminal. Never twist unused taps together. They carry voltage when the transformer is energized.

What is the difference between a transformer and a fan center?

A transformer only provides 24V power. A fan center combines a transformer with a relay that switches line voltage to a blower motor when the thermostat calls for fan. If the equipment has no control board to run the blower, a fan center supplies both functions in one part.

My system reads 28 or 29 volts on the secondary. Is that a problem?

Not necessarily. Transformers are rated at full load, so with little or no load on the secondary the voltage normally reads higher than 24. Check the reading again with the system running. If it is still high, confirm the correct primary tap is being used for your actual supply voltage.
