Motors are the parts that move the air and keep everything else in a system working within its limits. A condenser fan motor pulls heat out of the outdoor coil so head pressure stays in range. An evaporator fan motor moves air across the cold coil in a walk-in, reach-in or refrigerator. When a motor slows down, overheats or seizes, the system around it suffers: compressors trip on overload, coils ice up and food or comfort is lost quickly.
This category covers replacement condenser fan motors, evaporator fan motors, shaded pole motors, PSC (permanent split capacitor) motors and unit bearing refrigeration motors. Supco and other universal motor lines are built to replace many OEM motors with a single part, provided the electrical ratings, physical dimensions and rotation are matched correctly.
Most motor failures come from age and heat: bearings dry out, windings break down, capacitors weaken. A motor that has been running for years in a hot condenser cabinet or a frosty evaporator section has earned its replacement. The key is getting the right one the first time, so the new motor spins the right direction, fits the mount and pulls the right amount of air.
Shaded pole motors are the simplest type of single phase motor. A copper shading ring on part of each pole creates a delayed magnetic field that gets the rotor turning in one direction. They need no capacitor, are inexpensive and are common in small evaporator fans, condenser fans on refrigerators and other low wattage applications. They are less efficient than PSC motors and are generally rated in watts or very small fractions of horsepower.
PSC motors use a run capacitor permanently connected in series with an auxiliary winding. The capacitor shifts the current phase to create a rotating field, giving better efficiency and starting torque than a shaded pole design. Most residential condenser fan motors and many blower motors are PSC. The capacitor value, in microfarads (MFD), is specified by the motor manufacturer and should match the motor label.

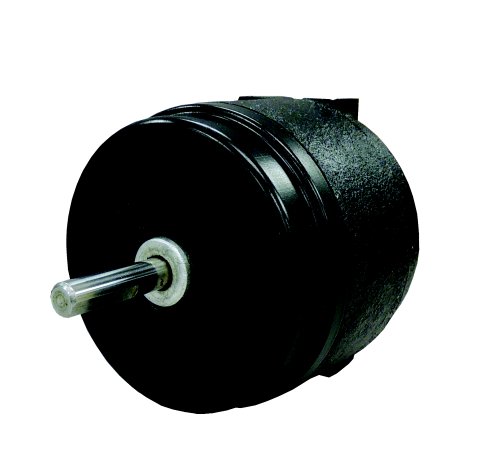

Unit bearing motors are small motors with a single long bearing, commonly used for evaporator and condenser fans in commercial refrigeration such as reach-ins, display cases and ice machines. They typically mount by a bracket or a face and drive a small fan blade directly off the shaft. They are rated in watts and come in shaded pole or other efficient designs depending on the model.
Rotation is how the shaft turns. It is described as clockwise (CW) or counterclockwise (CCW) and is only meaningful if you know which end you are looking at. Most manufacturers describe rotation viewed from the lead end, which is the end where the wires come out, or from the end opposite the shaft. This matters: a motor that turns CW viewed from the shaft end turns CCW viewed from the lead end. Always confirm which reference the label uses. Some motors are reversible by swapping leads, while others are fixed and cannot be changed.
Use a multimeter to check winding resistance with power off, a clamp meter to compare running amps with the nameplate FLA, and a capacitor tester to check the run capacitor. Readings well above nameplate amps usually mean the motor is struggling.

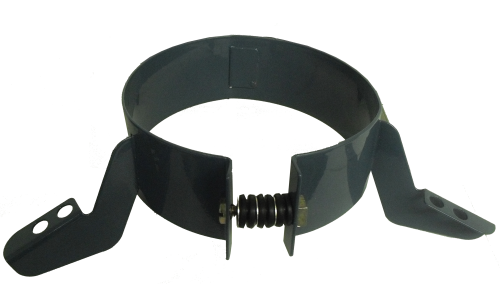

Check the frame or body diameter, shaft diameter, shaft length and mounting style: band mount, stud mount, bracket or face mount. Shaft diameter must fit the fan blade hub, commonly 1/4, 5/16 or 1/2 inch on smaller motors.
Confirm rotation and which end it is viewed from. If a universal motor is reversible, set the rotation according to its wiring instructions before installing.
Outdoor condenser motors are typically totally enclosed and built to handle weather. Evaporator motors in freezers need to handle low temperatures and moisture. Use a motor intended for the location.
The OEM motor number or the equipment model number is the best starting point. Product pages list cross-reference data and specifications so you can compare before buying.
| Motor type | Typical application | Capacitor required | Key specs to match |
|---|---|---|---|
| Shaded pole | Small evaporator and condenser fans, appliances | No | Voltage, watts, RPM, rotation, shaft and mount |
| PSC | Residential condenser fans, blowers | Yes, run capacitor | Voltage, HP, RPM, MFD, rotation, frame and shaft |
| Unit bearing | Commercial refrigeration evaporator and condenser fans | Depends on design | Voltage, watts, RPM, rotation, mounting style, shaft length |
HVAC365 carries Supco motors because Supco has been building replacement parts for HVAC, refrigeration and appliance service since 1945, and its universal motors are designed to cover many OEM applications. Product pages include specifications, rotation details and cross-reference numbers so you can confirm the match before ordering, and these items ship in 3-5 business days.
Look at the motor label first. If it is not marked, note which way the blade turns when the unit runs, and note which end you are viewing from. Then confirm whether the replacement's rotation is stated from the lead end or the shaft end. CW from one end is CCW from the other.
It is best to match the original RPM. A faster motor moves more air but draws more current and may be noisier. A slower motor may not move enough air to keep head pressure or coil temperature in range.
It is good practice. Use the MFD value on the new motor's label. A weak capacitor can shorten the life of a new motor and make it run hot.
The lead end is the end of the motor where the electrical leads exit. Many manufacturers specify rotation as viewed from this end or from the end opposite the shaft. Always check which convention a label uses.
In some applications, yes, if the replacement is designed for it and comes with the proper capacitor and mounting. Match voltage, speed, rotation, shaft and airflow needs, and follow the replacement motor's wiring instructions.
Check the voltage, the capacitor value, the blade size and pitch, and whether the blade is rubbing or the coil is dirty. An oversized or wrong pitch blade overloads a motor, and restricted airflow raises its operating temperature.
