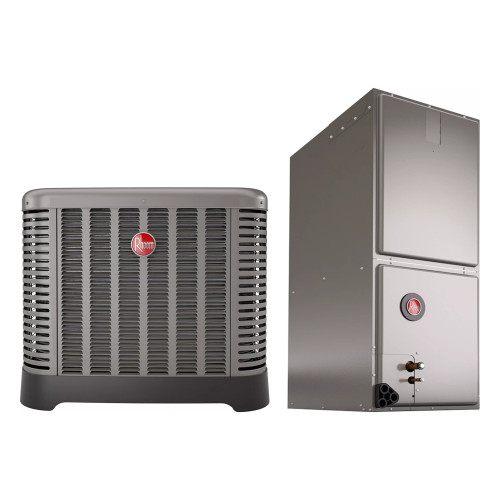

Name: Rheem 3.5 Ton 14.3 SEER2 7.5 HSPF2 Heat Pump Split System, 208/230V 3-Phase Heat Pump, with Multi-Position ECM Constant Torque Air Handler (208/230V 1-Phase), R454B | RP15AY42AC2NA RH2TY4824STANNJ
Brand: Rheem
SKU: RP15AY42AC2NA-RH2TY4824STANNJ
Price: 13094.38 USD
Availability: InStock

Rheem 3.5 Ton 14.3 SEER2 7.5 HSPF2 Heat Pump Split System, 208/230V 3-Phase Heat Pump, with Multi-Position ECM Constant Torque Air Handler (208/230V 1-Phase), R454B | RP15AY42AC2NA RH2TY4824STANNJ

Description

Rheem 3.5 Ton Heat Pump Split System (RP15AY42AC2NA + RH2TY4824STANNJ)

This AHRI-certified Rheem split system pairs the RP15AY42AC2NA heat pump (208/230V 3-Phase) with the RH2TY4824STANNJ multi-position air handler. The air handler blower runs on 208/230V single-phase power, so the system needs a 208/230V 3-Phase circuit for the outdoor unit and a separate 208/230V single-phase circuit for the air handler, a common setup in commercial and multifamily buildings with three-phase service.

The heat pump heats and cools; electric heat can be added inside the air handler for auxiliary, defrost and emergency heat with a Rheem RXBH kit offered on this listing.

System performance

AHRI reference number: 216581217
Rated cooling capacity: 40,000 BTU/h
Efficiency: 14.3 SEER2, 11.7 EER2, 7.5 HSPF2 (AHRI 210/240)
Refrigerant: R-454B (A2L)

Heat pump: RP15AY42AC2NA

Series: RP15AY
Compressor: Scroll, 2-stage
Power supply: 208/230V 3-Phase, 60 Hz
MCA / MOP: 16 A / 25 A
Refrigerant connections: 3/8" liquid, 7/8" suction
Sound rating: 74 dB
Dimensions: 35.75 in W x 35.75 in D x 39.0 in H
Weight: 240 lb operating / 247 lb shipping

Air handler: RH2TY4824STANNJ

Type: RH2TY multi-position (upflow, downflow, horizontal), N-coil with TXV
Blower: Constant-torque ECM, multi-speed, 208/230V 1-phase
Cabinet: 55-1/2 in H x 24-1/2 in W
Filter: 25 x 20 in
Refrigerant connections: 3/8" liquid, 7/8" vapor

Electric heat options

Rheem 208/240V RXBH heater kits approved for the RH2TY4824STANNJ in the Rheem heater table: RXBH-1724A05J-B (4.8 kW), RXBH-1724A07J-B (7.2 kW), RXBH-1724A10J-B (9.6 kW), RXBH-1724A15J-B (14.4 kW), RXBH-1724A18J-B (17 kW), RXBH-24A20J-B (19.2 kW), RXBH-24A25J-B (24 kW). Choose one in the "Add an Electric Heat Strip" option; the kit is sold separately and is not included in the system price.

Warranty

Each component carries its own Rheem limited warranty; see the Rheem warranty documents for the condenser and air handler series. Commercial applications carry Rheem's commercial warranty terms.

White Paper

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Rheem

Weight:

393.00 LBS

AHRI Certified:

Yes

AHRI Reference Number:

216581217

Refrigerant Type:

R-454B

Capacity (Tons):

3.5

Cooling Capacity (BTU):

40,000

SEER2:

14 SEER2

EER2:

11 EER2

HSPF2:

7 HSPF2

Product Category:

Heat Pump Split System

Product Line:

RP15AY / RH2TY

Outdoor Unit Model:

RP15AY42AC2NA

Air Handler Model:

RH2TY4824STANNJ

Voltage / Phase:

208/230V 3-Phase (heat pump), 208/230V 1-Phase (air handler)

Electrical Phase:

3-Phase

Compatible Electric Heat Kits:

RXBH-1724A05J-B (4.8 kW), RXBH-1724A07J-B (7.2 kW), RXBH-1724A10J-B (9.6 kW), RXBH-1724A15J-B (14.4 kW), RXBH-1724A18J-B (17 kW), RXBH-24A20J-B (19.2 kW), RXBH-24A25J-B (24 kW)

Electric Heat Options (kW):

5, 7, 10, 14, 17, 19, 24

Outdoor Unit RP15AY42AC2NA - UPC:

662021694141

Prop 65 Warning:

Yes

Safety Information:

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Heat Pump RP15AY42AC2NA - Nominal Capacity (Tons):

3.5

Heat Pump RP15AY42AC2NA - Refrigerant:

R-454B

Heat Pump RP15AY42AC2NA - Voltage/Phase/Hz:

208/230V 3-Phase / 60 Hz

Heat Pump RP15AY42AC2NA - Minimum Circuit Ampacity (MCA):

16 A

Heat Pump RP15AY42AC2NA - Maximum Overcurrent Protection (MOP):

25 A

Heat Pump RP15AY42AC2NA - Compressor Type:

Scroll, two-stage

Heat Pump RP15AY42AC2NA - Sound Level (dB):

Heat Pump RP15AY42AC2NA - Unit Dimensions:

35.75 in W x 35.75 in D x 39.0 in H

Heat Pump RP15AY42AC2NA - Shipping Weight:

247 lb

Air Handler RH2TY4824STANNJ - Nominal Capacity (Tons):

Air Handler RH2TY4824STANNJ - Blower Motor Type:

ECM Constant Torque

Air Handler RH2TY4824STANNJ - Configuration:

Multi-Position

Air Handler RH2TY4824STANNJ - Coil Type:

N-coil

Air Handler RH2TY4824STANNJ - Metering Device:

TXV

Air Handler RH2TY4824STANNJ - Voltage/Phase/Hz:

208/230V 1-Phase / 60 Hz

Air Handler RH2TY4824STANNJ - Liquid Line Size:

3/8 in

Air Handler RH2TY4824STANNJ - Suction Line Size:

7/8 in

Air Handler RH2TY4824STANNJ - Cabinet Size:

55-1/2 in H x 24-1/2 in W

Air Handler RH2TY4824STANNJ - Filter Size:

25 x 20 in

DOE Regional Compliance:

Nationwide

Electrical Frequency:

60 Hz

Air Handler RH2TY4824STANNJ - UPC:

662021700415

Warranty Information:

10 Years Parts | Registration Required within 60 Days

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
