Commercial Heat Pump Systems

Commercial Heat Pump Systems: Matched Split Heat Pumps for Light Commercial Buildings

A commercial heat pump system pairs an outdoor heat pump unit with a matched indoor air handler to provide both cooling and electric heating from one refrigerant circuit. In summer it works like a split air conditioner. In winter, a reversing valve sends refrigerant the other way, and the system moves heat from outdoor air into the building. Most systems include electric heat in the air handler for cold snaps, defrost, and emergency backup. For light commercial buildings with indoor air handlers and three-phase power, a matched split heat pump is often the simplest way to get efficient electric heat without gas service.

This guide explains why matched systems matter, how cooling and heating ratings work, how to size the system and its electric heat, which climates suit split heat pumps, and what the shift to A2L refrigerants means for system design.

What is a matched commercial heat pump system?

A matched system is a specific outdoor heat pump and indoor air handler combination that the manufacturer has engineered and listed together, with a certified AHRI rating for both cooling and heating. Rheem RPCY commercial heat pump condensers paired with RHCYP belt-drive VFD air handlers are one example. For smaller three-phase applications, Rheem RP14AY and RP15AY three-phase heat pumps are matched with listed Rheem air handlers.

The match covers coil size and circuiting, bidirectional metering, airflow, defrost, and auxiliary heat controls. Mixing components that are not listed together can lead to poor heating capacity, high head pressure in heating, frozen coils in cooling, oil return problems, and ratings that no longer apply.

How are commercial heat pump systems rated?

System size	Cooling metrics	Heating metrics	AHRI standard
Below 65,000 Btu/h (up to about 5 tons)	SEER2, EER2	HSPF2, capacity at 47°F and 17°F	AHRI 210/240
65,000 Btu/h and above	EER, IEER	COP and capacity at 47°F and 17°F	AHRI 340/360

The heating capacity at 17°F is the number to study in colder climates, because it shows how much the heat pump can deliver on a cold day. For many standard designs, 17°F capacity runs roughly 55 to 65 percent of the 47°F capacity. COP describes heating efficiency: a COP of 3.3 means 3.3 units of heat per unit of electricity. Federal minimums for commercial air-cooled heat pumps from 65,000 to under 135,000 Btu/h include a COP of 3.4 at 47°F, and IEER became the federal cooling metric for this class on January 1, 2023.

How do I size a commercial heat pump system?

Run a commercial load calculation for both cooling and heating, including ventilation air, using ACCA Manual N or an equivalent engineering method.
Select the system for the cooling load. In most U.S. climates, the cooling load sets the size. Oversizing for heating can cause short cycling and poor dehumidification in summer.
Check heating capacity at the winter design temperature using the manufacturer's extended heating data.
Find the balance point, the outdoor temperature where heat pump output equals building heat loss.
Size the electric heat kit to cover the gap below the balance point, or the full load if emergency backup is required.
Confirm airflow and static pressure. Design for roughly 350 to 450 CFM per ton and select the air handler drive to deliver it against the duct system's external static pressure.

How much electric heat does a commercial heat pump system need?

Each kilowatt of electric heat provides about 3,412 Btu/h. If a building loses 90,000 Btu/h at its design temperature and the heat pump delivers 55,000 Btu/h at that temperature, the gap is 35,000 Btu/h, or about 10.3 kW, so a 10 kW or 15 kW kit would be considered depending on the margin desired and the kit sizes available. If the owner wants full emergency backup, the kit would need to cover most or all of the 90,000 Btu/h. Account for 208V operation, which reduces the output of 240V-rated heaters to roughly 75 percent, and for the effect of the heater on the air handler's MCA and MOP.

Control the electric heat with outdoor temperature lockouts and staging so it runs only when needed. Electric resistance heat has a COP of 1.0, so letting it run when the heat pump could carry the load significantly increases operating cost.

Which climates suit commercial split heat pumps?

Hot and humid climates (Florida, Gulf Coast): Heating hours are few, and a heat pump provides efficient heat for cool mornings at little cost premium over a cooling-only system with strip heat. Focus selection on dehumidification and cooling efficiency.
Mixed climates (Mid-Atlantic, Southeast, lower Midwest): Heat pumps carry most of the heating season, with modest supplemental heat for the coldest days. This is where they often show the strongest operating cost advantage over electric resistance heat.
Dry climates (Southwest): Mild winters and strong cooling loads make heat pumps a natural fit.
Cold climates (upper Midwest, Northeast, mountains): Standard heat pumps still work but rely more on electric backup. Compare low-temperature capacity carefully and consider cold-climate models or a dual-fuel arrangement where gas is available.

What does the 2025 refrigerant transition mean for heat pump systems?

Under the EPA Technology Transitions rule, new light commercial heat pumps manufactured or imported from January 1, 2025 must use refrigerant with a GWP below 700. Split systems using R-410A components manufactured before 2025 could be installed only until January 1, 2026. Rheem's RPCY, RP14AY, and RP15AY heat pumps and their matched air handlers use R-454B, with a GWP of about 466. Daikin uses R-32, with a GWP of about 675.

Both are A2L refrigerants, meaning lower toxicity and mild flammability. For split heat pump systems:

Both the outdoor unit and the air handler must be listed for the same refrigerant; an R-410A air handler cannot be reused.
Larger charges or smaller rooms may require refrigerant detection in the air handler, which starts the blower if a leak is detected.
Indoor field joints should be brazed or made with listed mechanical connectors.
Line sets must be sized for oil return in both heating and cooling modes, following the manufacturer's tables for length and lift.
Service requires A2L-rated recovery equipment, vacuum pumps, and cylinders.

What electrical service does a commercial heat pump system need?

Most light commercial split heat pumps above 5 tons are three-phase, at 208/230V or 460V, with 575V on some models. The outdoor unit and the air handler each have their own MCA (Minimum Circuit Ampacity) for sizing conductors and MOP (Maximum Overcurrent Protection) for the maximum breaker or fuse. The air handler's MCA depends heavily on the electric heat kit installed. Verify phase rotation on three-phase scroll compressors at startup.

When is a split heat pump better than a heat pump rooftop unit?

Choose a split heat pump when the air handler should be indoors, when the roof cannot carry a packaged unit, or when the building already has a split layout with indoor air handlers. A packaged heat pump RTU is often simpler when the roof and duct layout support it, because there is no field refrigerant piping. Both deliver the same basic benefits of efficient electric heating and cooling.

What commercial heat pump systems are offered here?

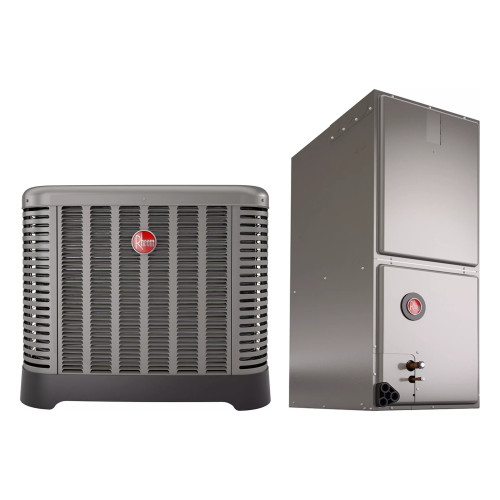

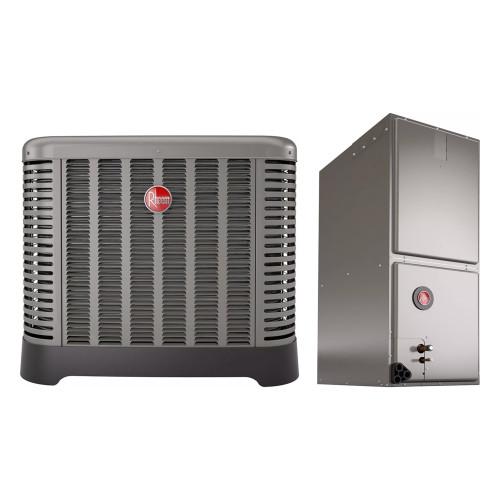

This category includes matched Rheem RPCY heat pump condensers with RHCYP belt-drive VFD air handlers, Rheem RP14AY and RP15AY three-phase heat pump systems for smaller light commercial applications, and matched Daikin commercial heat pump systems where available. Each system listing shows the outdoor and indoor model numbers, cooling and heating capacities, SEER2/HSPF2 or EER/IEER/COP ratings, voltage, and electrical data.

What maintenance keeps a heat pump system efficient?

Clean filters and coils, check belt condition on belt-drive air handlers, verify charge and airflow, test defrost and auxiliary heat lockouts each fall, and confirm thermostat staging so electric heat does not run when the heat pump can carry the load.

Commercial Heat Pump System FAQ

Is a commercial heat pump system cheaper to run than electric strip heat?

Yes, in most conditions. A heat pump with a COP of 2.5 to 3.5 delivers two and a half to three and a half times as much heat per kilowatt-hour as electric resistance heat. The advantage narrows at very low outdoor temperatures.

Do commercial heat pump systems qualify for rebates?

Many utility and state programs offer incentives for commercial heat pumps that meet efficiency thresholds. Programs typically require the AHRI certificate for the matched system.

Can a commercial heat pump system have an economizer?

Split systems can use a ducted economizer section on the air handler side, though it is more common on packaged rooftop units. Check whether your energy code requires one for the system size and climate zone.

What is emergency heat on a heat pump system?

Emergency heat is a thermostat mode that runs the air handler's electric heat without the outdoor unit, used when the heat pump is out of service.

How long do commercial split heat pumps last?

With regular maintenance, commercial split heat pumps commonly last 12 to 18 years. Coastal exposure, poor maintenance, and incorrect charge or airflow shorten that.
