Description

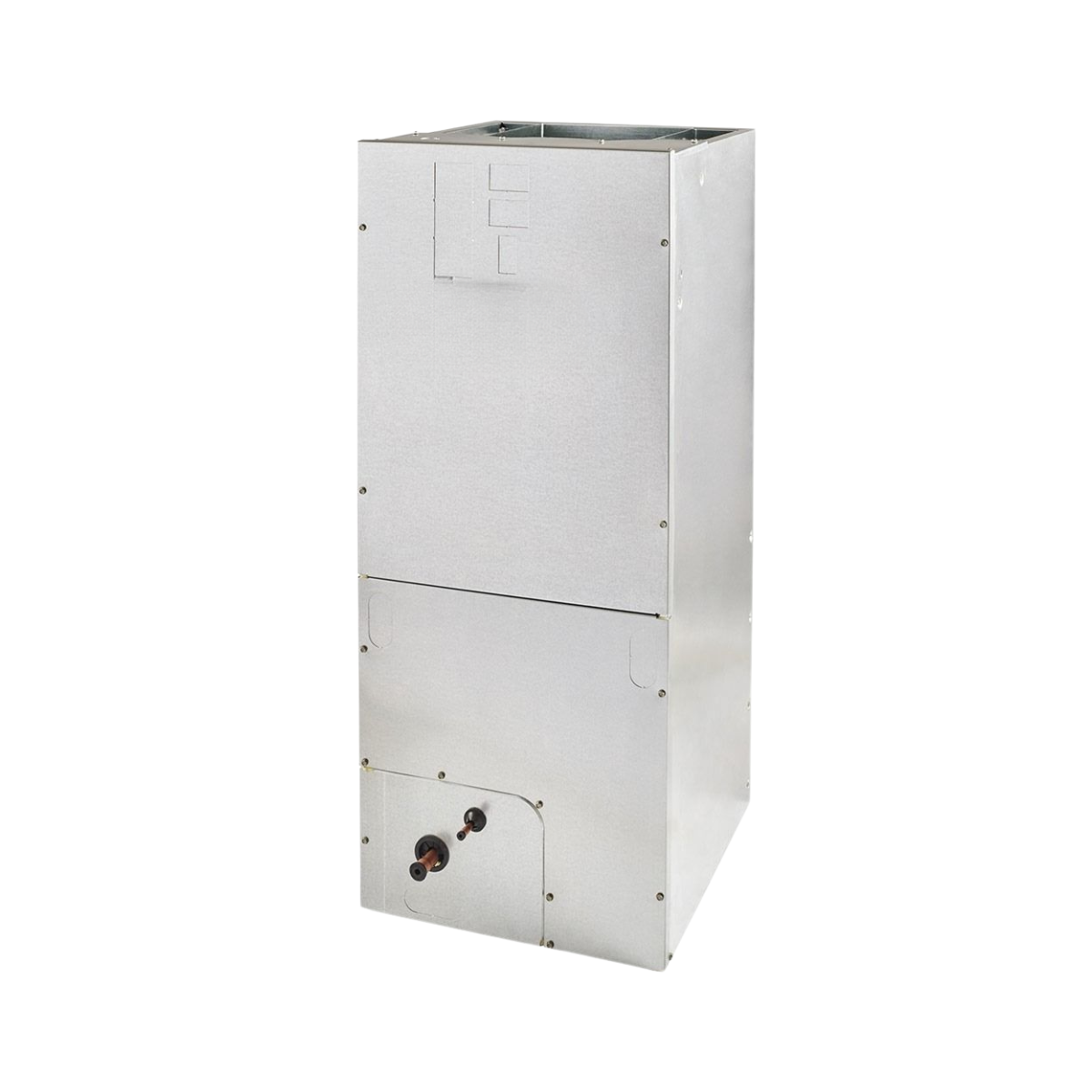

The Ameristar by American Standard 3 to 4 Ton Air Conditioner Air Handler Multi-position Constant Torque with R-454B Refrigerant (A5AHC005A1D3) is a reliable indoor air handler designed to provide efficient airflow management and dependable performance for residential split-system air conditioner and heat pump applications. Built for 3 to 4 ton HVAC systems, this air handler features a constant torque blower motor and multi-position installation capability, offering flexible installation options for various residential configurations.
The A5AHC005A1D3 is designed to pair with compatible Ameristar by American Standard outdoor air conditioner condensers and heat pump units to create a complete HVAC system. With R-454B refrigerant compatibility, this air handler supports modern A2L refrigerant requirements while delivering consistent airflow, reliable operation, and enhanced indoor comfort.
Key Features
- 3 to 4 Ton Capacity Range – Designed for residential HVAC systems requiring 36,000 to 48,000 BTU capacity
- Constant Torque Motor – Provides reliable airflow performance and consistent blower operation
- Multi-Position Installation – Supports flexible installation configurations including upflow, downflow, and horizontal applications
- R-454B Refrigerant Compatible – Designed for modern lower-GWP A2L refrigerant systems
- Efficient Air Distribution – Helps deliver balanced airflow throughout the home
- Split-System Compatible – Designed for use with compatible air conditioners and heat pump systems
- Durable Cabinet Construction – Built for dependable long-term residential HVAC operation
Product Specifications
- Brand: Ameristar by American Standard
- Model: A5AHC005A1D3
- Product Type: Air Handler
- Capacity Range: 3 to 4 Ton
- Nominal Capacity: 36,000 to 48,000 BTU
- Motor Type: Constant Torque
- Installation Type: Multi-Position
- Refrigerant Compatibility: R-454B
- System Type: Residential Split-System Air Conditioner & Heat Pump
- Application: Indoor Air Distribution Unit
Benefits
- Provides dependable airflow for residential cooling and heating systems
- Supports flexible installation with multiple positioning options
- Compatible with modern R-454B refrigerant systems
- Helps maintain consistent indoor temperatures and comfort
- Designed for reliable and efficient HVAC operation
- Works with matched outdoor units for optimized system performance
- Suitable for replacement and new residential HVAC installations
- Supports modern A2L refrigerant system requirements
Compatibility & Installation
The Ameristar A5AHC005A1D3 air handler is designed to pair with compatible Ameristar by American Standard air conditioner condensers and heat pump systems. Proper system matching is required to achieve rated efficiency, capacity, and performance.
Installation considerations:
- Verify the air handler capacity matches the selected outdoor unit
- Confirm compatibility with R-454B refrigerant systems
- Ensure proper airflow requirements and ductwork configuration
- Verify electrical requirements before installation
- Follow A2L refrigerant safety guidelines
- Follow manufacturer installation instructions and local HVAC codes
- Installation should be completed by a qualified HVAC professional
Frequently Asked Questions
What size systems is the Ameristar A5AHC005A1D3 compatible with?
This air handler is designed for 3 to 4 ton HVAC systems with capacities from 36,000 to 48,000 BTU.
What type of motor does this air handler use?
The A5AHC005A1D3 uses a constant torque blower motor for reliable airflow performance.
What refrigerant is this air handler compatible with?
This model is designed for systems using R-454B refrigerant.
Can this air handler be installed in different positions?
Yes. It supports multi-position installation options for flexible residential applications.
Is this a complete HVAC system?
No. This is an indoor air handler only and requires a compatible outdoor condenser or heat pump unit.
