Description
Product Summary

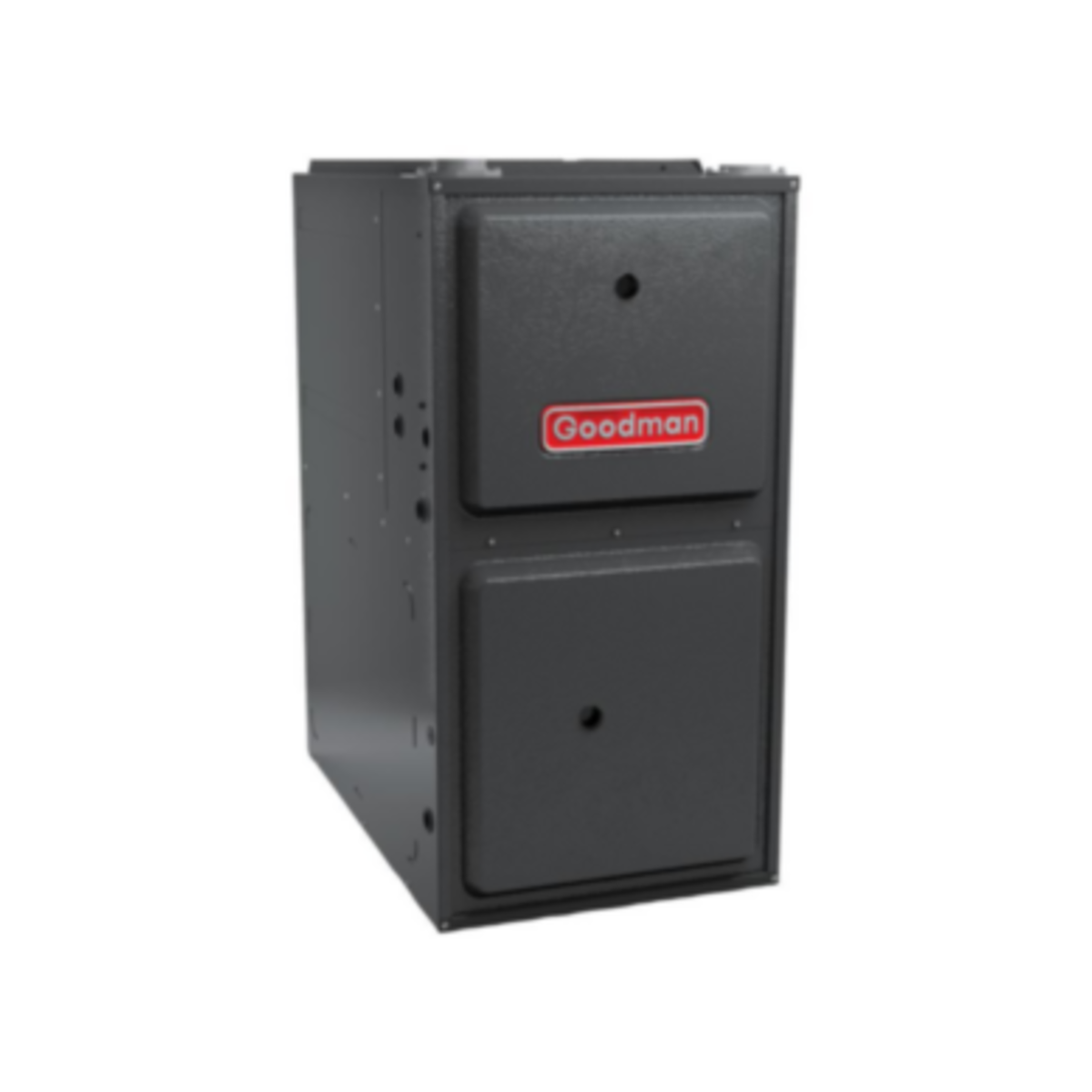

The Goodman GRVT961005CN is a 100,000 BTU/h input, 96% AFUE two-stage gas furnace from the GRVT96 series with a Variable-Speed ECM blower. The 21-inch cabinet installs upflow or horizontal.
It delivers about 96,100 BTU/h of heat at high fire and supports up to 5 tons (2,200 CFM) of matched cooling airflow. As a condensing furnace it vents with 2- or 3-inch PVC in 2-pipe direct vent or 1-pipe configurations.
Key Features
- 96% AFUE: high-efficiency condensing heat exchanger.
- Variable-Speed ECM: quiet, efficient airflow for heating and cooling.
- Two-Stage gas valve: low and high fire stages for longer, steadier run cycles.
- Upflow/Horizontal installation: flexible placement in basements, closets, crawlspaces and attics.
- 21-inch cabinet: matches coils and plenums of the same width.
- Gas conversion ready: Goodman LP and high-altitude kits are available.
Specifications
| Brand | Goodman |
|---|---|
| Model | GRVT961005CN |
| Series | GRVT96 |
| Heating Input | 100,000 BTU/h |
| Heating Output (high fire) | 96,100 BTU/h |
| AFUE | 96.1% |
| Max Cooling Capacity | 5 tons (2,200 CFM) |
| Blower Motor | 1 HP Variable-Speed ECM |
| Gas Valve | Two-Stage |
| Configuration | Upflow/Horizontal |
| Cabinet Width | 21 in |
| Nominal Max Airflow Code | 2,000 CFM |
| NOx | Standard |
| Venting | 2-pipe direct vent or 1-pipe, 2-3 in PVC |
| Electrical | 115V, 60 Hz, 1-Phase |
| Fuel | Natural gas (LP conversion kit available) |
Ideal Applications
- Residential furnace replacements
- New construction homes
- Systems paired with R-32 or R-410A air conditioners and heat pumps (dual fuel)
- Light commercial spaces
Frequently Asked Questions
What size coil does it match?
Choose a cased coil with a 21-inch matching width; Goodman CHPEA or CAPEA coils are common matches. Verify AHRI combinations.
Can it run on propane?
Yes, with the correct Goodman LP conversion kit installed by a qualified technician.
How much cooling can it support?
The spec sheet lists up to 5 tons (2,200 CFM) of cooling airflow.
What venting does it use?
2- or 3-inch PVC in 2-pipe direct vent or 1-pipe configurations, depending on length.
Is it compliant in California?
Check local NOx rules; ultra-low NOx versions are sold separately where required.
