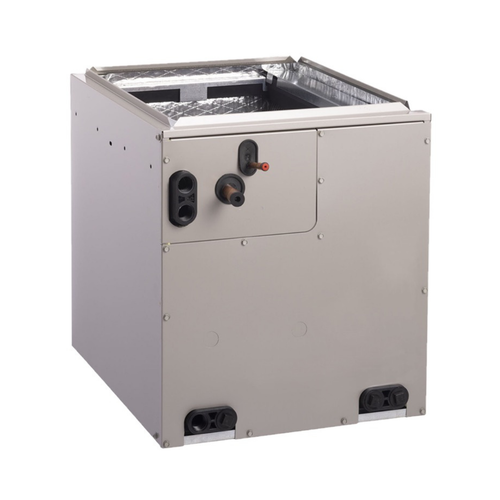

The Ameristar by American Standard 3 to 5 Ton 24.5" W Evaporator Cased Coil Multi-Position with R-454B Refrigerant (5MXCC009AC6HCA) is a versatile indoor evaporator coil designed for residential split-system air conditioner and heat pump applications. Built for 3 to 5 ton HVAC systems, this cased coil provides flexible installation options with multi-position capability and reliable heat transfer performance using advanced R-454B refrigerant technology.
The 5MXCC009AC6HCA features a durable cased cabinet design, optimized coil construction, and compatibility with properly matched Ameristar by American Standard HVAC systems. Its 24.5-inch wide cabinet and multi-position configuration provide installation flexibility while supporting efficient system performance for larger residential applications.
Key Features
- 3 to 5 Ton Capacity Range – Designed for larger residential HVAC systems requiring 36,000 to 60,000 BTU capacity
- 24.5" Wide Cased Coil Design – Provides compatibility with wider HVAC cabinet configurations
- Multi-Position Installation – Supports upflow, downflow, and horizontal installation options
- R-454B Refrigerant Compatible – Designed for modern lower-GWP A2L refrigerant systems
- Efficient Heat Transfer Performance – Helps support reliable cooling and heating operation
- Durable Cased Construction – Protects internal coil components and simplifies installation
- Split-System Compatible – Designed for use with compatible air conditioners and heat pumps
Product Specifications
- Brand: Ameristar by American Standard
- Model: 5MXCC009AC6HCA
- Product Type: Cased Evaporator Coil
- Capacity Range: 3 to 5 Ton
- Cabinet Width: 24.5 Inch
- Refrigerant: R-454B
- Installation Type: Multi-Position
- Application: Residential Split-System Air Conditioner & Heat Pump Systems
- Coil Type: Indoor Cased Evaporator Coil
Benefits
- Provides flexible installation options for larger residential HVAC applications
- Compatible with next-generation R-454B refrigerant systems
- Supports efficient heat exchange for improved system performance
- Allows multiple installation orientations for easier system integration
- Durable cabinet design helps protect coil components
- Suitable for replacement and new HVAC installations
- Designed to work with properly matched Ameristar HVAC equipment
Compatibility & Installation
The Ameristar 5MXCC009AC6HCA evaporator coil is designed for use with compatible outdoor air conditioner condensers, heat pumps, and residential split-system equipment. Proper system matching is required to achieve rated capacity, efficiency, and performance.
Installation considerations:
- Verify the coil capacity matches the selected outdoor condenser or heat pump
- Confirm cabinet dimensions and airflow requirements
- Ensure compatibility with R-454B refrigerant systems
- Verify refrigerant line connections and installation requirements
- Follow A2L refrigerant safety procedures
- Installation should be completed by a qualified HVAC professional
Frequently Asked Questions
What size systems is the Ameristar 5MXCC009AC6HCA compatible with?
This evaporator coil is designed for 3 to 5 ton HVAC systems with capacities ranging from 36,000 to 60,000 BTU.
What refrigerant does this coil use?
The coil is designed for systems using R-454B refrigerant.
What installation positions are supported?
This model supports multi-position installation, including upflow, downflow, and horizontal configurations.
Is this a complete HVAC system?
No. This is an indoor evaporator coil only and must be paired with a compatible outdoor condenser or heat pump unit.
