Description

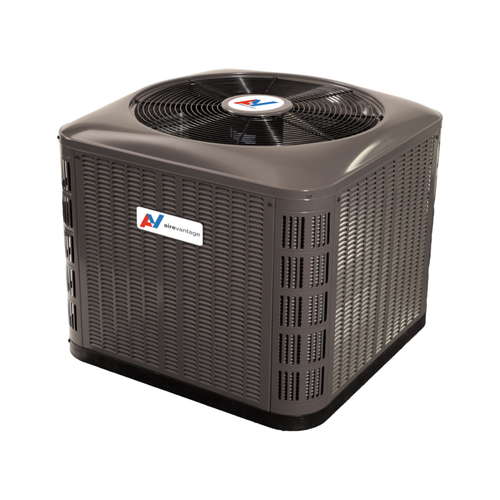

AireVantage USA4BE5M1SN60K is the largest air conditioner condenser in the USA4BE lineup, built for maximum residential cooling demand while staying serviceable and straightforward. At this size, the outdoor unit is expected to run hard—so cabinet durability, protection features, and access matter just as much as capacity.
This model uses R-454B refrigerant (model code “5”) and includes a Copeland Scroll compressor as standard equipment. The cabinet is powder-coated galvanized steel and tested to 950 hours salt spray per ASTM B117, and the coil construction is all-aluminum for corrosion resistance. The composite base pan is designed to absorb sound and resist corrosion, and the jacket panels are designed for easier remove/replace during service.
Matched-system performance is listed at 13.8 SEER2 / 11.2 EER2 with 55,500 BTUH cooling capacity and 1,545 CFM (certified combinations vary by indoor match). If you’re replacing a larger condenser and want durable construction with a clean service layout, this is built to be a stable, no-drama choice.
Key Features
-
Copeland Scroll compressor (standard): Proven residential compressor platform
-
R-454B refrigerant (model code “5”): Current refrigerant platform
-
All-aluminum coil: Corrosion-resistant coil construction
-
Powder-coated galvanized cabinet: 950-hour salt spray per ASTM B117
-
High-pressure switch (auto-reset): Protection against abnormal system pressures
-
Composite base pan: Sound absorption and corrosion resistance
-
Servicer-friendly jacket: Side panels remove/replace without removing top grille
-
Removable top grille: Easier service access without disconnecting fan motor leads
-
Easy compressor and control access: Side panels provide access to controls and compressor
