Description

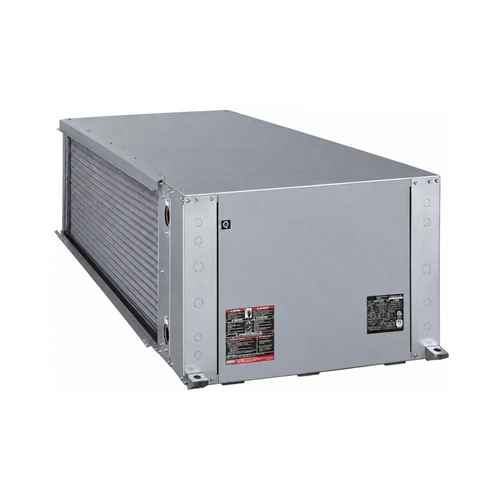

The Comfort-aire MBL072BKC30C01S is a 6-ton, 14.1 EER belt-driven water source heat pump package unit built for horizontal installation in commercial and multi-family applications where a centralized water loop handles the heat exchange. If you've been hunting for a high-capacity, three-phase water source unit that ships ready to drop into an existing hydronic system, this is it. Running on 230V/3-phase power with a left-return, straight-supply airflow configuration, the MBL072BKC30C01S fits the mechanical room layouts and riser closet geometries that split systems simply can't handle.
Key Features
- 6-Ton Capacity: Delivers 72,000 BTU of heating and cooling — enough to condition large open floors, commercial suites, or multi-zone residential spaces served by a shared water loop.
- 14.1 EER Efficiency: A 14.1 EER rating means lower operating costs compared to lower-efficiency water source units, which adds up fast at 6-ton scale running commercial hours.
- Belt-Driven Blower: Belt-drive gives you adjustable blower speed at commissioning, so you can dial in airflow to match duct static pressure without swapping motors.
- Horizontal Package Format: The self-contained horizontal cabinet puts everything — compressor, coil, blower — in one unit, eliminating the refrigerant line sets and separate equipment rooms that split systems require.
- Left Return / Straight Supply: The fixed duct orientation simplifies rough-in planning for closet or above-ceiling installs where duct routing is already determined.
- 5-Year Compressor Warranty: Comfort-aire backs the compressor for five years and parts for one year, so the highest-cost component is covered through the most failure-prone period of the unit's life.
Is this the right unit for your project?
A 6-ton water source heat pump handles roughly 2,400–3,000 square feet of commercial space or a large residential floor plate, but actual sizing depends on building envelope, internal loads, and water loop design — run a Manual J or equivalent load calculation to confirm. This unit is sized for buildings that already have, or are being built with, a central water loop: multi-tenant office, hotel guest rooms at larger scale, or mid-rise residential. Don't put a 6-ton unit in a 1,200 sq ft apartment; oversizing kills humidity control and compressor longevity. Undersizing for a large open floor plan with high glass exposure is equally costly. Match the unit to the load, not the other way around.
Water source heat pump vs. split system for commercial installs
A water source heat pump like the MBL072BKC30C01S moves heat to and from a shared water loop rather than directly to outdoor air. That means no outdoor condenser unit per zone — the building's central cooling tower or boiler handles the loop. The payoff: quieter operation, no exposed outdoor equipment, and better efficiency at scale because the loop stays at a moderate temperature year-round. The tradeoff is infrastructure dependency — you need a functioning water loop, water treatment, and loop pumping capacity before this unit does anything. Split systems are easier to retrofit in buildings without hydronic infrastructure, but they lose efficiency in extreme outdoor temperatures and require outdoor condenser placement. If the building has a loop, water source almost always wins on operating cost and equipment longevity.
Where it fits best
- Multi-family mid-rise buildings with a central water loop riser system
- Commercial office suites and tenant fit-outs in buildings with existing WSHP infrastructure
- Hotel guest room corridors and larger single-zone commercial spaces
- School or institutional buildings with four-pipe or two-pipe loop systems
- Retrofit replacements for aging 6-ton horizontal water source units in mechanical closets
Why 3-phase power matters at 6-ton scale
The MBL072BKC30C01S runs on 230V/3-phase — and at 6 tons, that's the right call. Three-phase power distributes the compressor load evenly across all three legs, which means lower peak inrush current, less wear on the compressor at startup, and a unit that plays well with a commercial building's electrical infrastructure. Single-phase power at this capacity would demand oversized wiring and breakers and would stress the compressor motor more on every start cycle. If your building panel is three-phase — as most commercial and multi-family properties are — this unit is sized and powered to match.
Installation & what else you’ll need
The MBL072BKC30C01S requires a 230V/3-phase electrical supply — confirm panel capacity and run a dedicated circuit sized to the unit's minimum circuit ampacity before scheduling delivery. Water source connections need supply and return lines plumbed to the building loop, with shutoff valves and a flush/purge procedure completed before startup; verify water flow rates against the unit's design parameters. The belt-driven blower requires tension and alignment check at commissioning — don't skip this step or you'll chase noise and premature belt wear. Duct connections follow the left-return, straight-supply layout, so confirm your rough-in matches before the unit arrives. A low-voltage thermostat or building automation control wired to the unit's control board handles heating/cooling staging. Water source heat pump work at this scale requires licensed mechanical and electrical contractors; refrigerant work requires EPA Section 608 certification.
Frequently Asked Questions
How many tons is the Comfort-aire MBL072BKC30C01S?
The MBL072BKC30C01S is a 6-ton unit, which equals 72,000 BTU of heating and cooling capacity. It's designed for large commercial suites, multi-family floors, or institutional spaces served by a central water loop — not residential single-family applications at typical sizes.
What is the EER rating of the Comfort-aire MBL072BKC30C01S?
The MBL072BKC30C01S carries a 14.1 EER rating. At 6-ton scale running commercial hours, that efficiency level translates to meaningful energy savings compared to lower-EER water source units over the life of the equipment.
What voltage and phase does the MBL072BKC30C01S require?
This unit runs on 230V, 3-phase power. Three-phase is standard in commercial and multi-family buildings and is the correct choice for a 6-ton compressor — it reduces inrush current and distributes the motor load evenly. Confirm your panel before ordering.
What does 'left return straight supply' mean on a horizontal water source heat pump?
Left return means the return air duct connects on the left side of the unit; straight supply means the conditioned air exits straight out the opposite end. This orientation is fixed — it determines how the unit fits into a mechanical closet or above-ceiling space, so verify your duct layout matches before installation.
What warranty does the Comfort-aire MBL072BKC30C01S come with?
Comfort-aire covers the compressor for 5 years and parts for 1 year. The compressor is the highest-cost component in any heat pump, so five years of coverage is meaningful protection through the period when manufacturing defects are most likely to surface.
What type of buildings use water source heat pump package units?
Water source heat pumps are standard in mid-rise multi-family buildings, commercial office towers, hotels, and institutional facilities that have a central hydronic loop. They're not a fit for standalone residential homes without loop infrastructure — the unit depends entirely on that shared water system to reject or absorb heat.
