Description
Product Summary

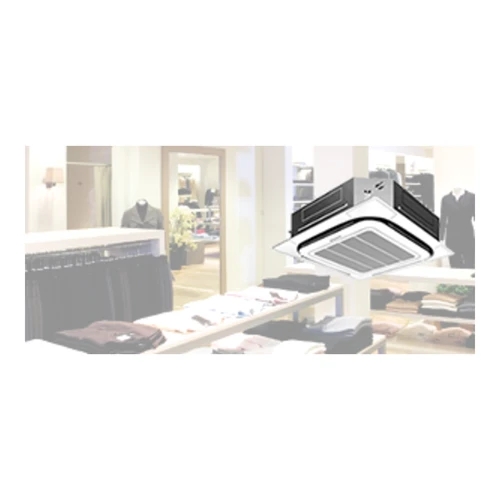

The Daikin FCA48AAVJU is a 48,000 BTU (4 ton) SkyAir series round flow ceiling cassette indoor unit for single-zone ductless and mini split systems using R-32 refrigerant. It recesses into the ceiling grid.
Paired with the RZA48AAVJU outdoor unit the system is rated at 48,000 BTU/h cooling, 18 SEER2, 8.8 EER2, 9.7 HSPF2.
SkyAir indoor units serve light commercial and larger residential zones that need higher capacity from a single outdoor unit.
Key Features
- Ceiling cassette: multi-direction airflow from a flush ceiling panel
- Inverter matched system: works with the Daikin RZA48AAVJU inverter outdoor unit
- R-32 refrigerant: lower-GWP refrigerant platform
- Airflow: 1,253 / 971 / 741 CFM
- Efficiency: 18 SEER2 with the matched outdoor unit
- Daikin quality: designed and supported by Daikin
Specifications
| Model Number | FCA48AAVJU |
|---|---|
| Series | Daikin SkyAir |
| Unit Type | Round Flow Ceiling Cassette indoor unit |
| Nominal Capacity | 48,000 BTU/h (4 ton) |
| System Type | Heat pump |
| Rated Cooling Capacity (matched) | 48,000 BTU/h with RZA48AAVJU |
| SEER2 (matched) | 18 |
| EER2 (matched) | 8.8 |
| HSPF2 (matched) | 9.7 |
| Power Supply | 208/230V 1-Phase, 60 Hz |
| Airflow (CFM, H / M / L) | 1,253 / 971 / 741 |
| Refrigerant | R-32 |
| Unit Net Weight | 58 lb |
| Matching Outdoor Unit | RZA48AAVJU |
Ideal Applications
- Offices, retail shops and restaurants dining areas
- Additions, finished basements and bonus rooms
- Homes without existing ductwork
- Light commercial zones such as small offices and clinics
Frequently Asked Questions
Which outdoor unit pairs with the Daikin FCA48AAVJU?
It pairs with the Daikin RZA48AAVJU outdoor unit in the SkyAir R-32 lineup. HVAC365 can confirm AHRI-matched combinations.
Is the outdoor unit included?
No. This listing is the indoor unit only. The outdoor unit, line set, and any required panel or controller are sold separately.
What refrigerant does it use?
R-32. Use it only with R-32 Daikin outdoor units.
What size room is the 48K unit for?
A 48,000 BTU unit is typically chosen for a single zone needing about 4 ton of capacity. Ask HVAC365 for a load-based sizing recommendation.
