Description
Product Summary

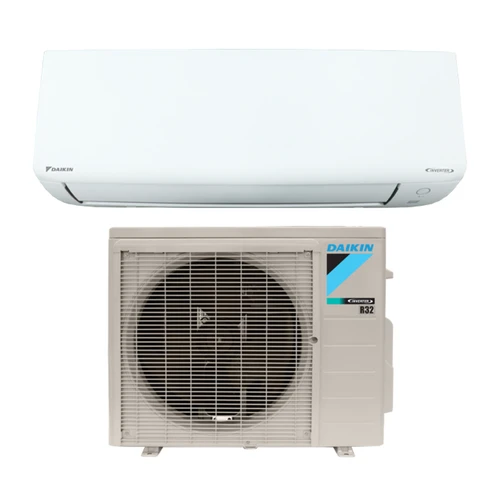

The Daikin RXV12AVJU9 is a 12,000 BTU (1 ton) Vista series single-zone ductless heat pump outdoor unit with an inverter compressor and R-32 refrigerant, powered by 208/230V 1-Phase.
Matched with the FFA12AVJU9 indoor unit it is rated at 10,800 BTU/h cooling, 13,500 BTU/h heating, 19.5 SEER2, 11.5 EER2, 9 HSPF2.
It heats down to 5°F outdoor temperature, making it a fit for homeowners, remodelers and contractors who need efficient zoned comfort without ductwork.
Key Features
- Inverter compressor: variable-speed operation matches output to the load for steady comfort and lower energy use
- R-32 refrigerant: lower-GWP refrigerant used in the current Daikin single-zone lineup
- High efficiency: up to 19.5 SEER2 and 9 HSPF2
- Low ambient heating: heating operation down to 5°F
- Quiet operation: outdoor sound pressure of 50 dBA in cooling
- Flexible piping: 66 ft total, 49 ft vertical maximum
- Daikin quality: engineered by Daikin, a global leader in ductless systems
Specifications
| Model Number | RXV12AVJU9 |
|---|---|
| Series | Daikin Vista |
| Unit Type | Single-zone outdoor unit, inverter heat pump |
| Nominal Capacity | 12,000 BTU/h (1 ton) |
| Rated Cooling Capacity | 10,800 BTU/h (with FFA12AVJU9) |
| Rated Heating Capacity (47°F) | 13,500 BTU/h |
| SEER2 | 19.5 |
| EER2 | 11.5 |
| HSPF2 | 9 |
| Power Supply | 208/230V 1-Phase, 60 Hz |
| Minimum Circuit Ampacity (MCA) | 14.6 A |
| Maximum Overcurrent Protection (MOP) | 15 A |
| Minimum Heating Operating Temp | 5°F |
| Refrigerant | R-32 |
| Line Set (Liquid x Gas) | 1/4 x 3/8 in |
| Max Piping Length | 66 ft total, 49 ft vertical |
| Outdoor Sound Pressure (dBA) | 50 |
| Unit Net Weight | 63 lb |
| Matching Indoor Unit | FFA12AVJU9 |
Ideal Applications
- Bedrooms, living rooms and home offices
- Additions, sunrooms, garages and bonus rooms
- Homes without ductwork or with failing window units
- Small offices and light commercial spaces
Frequently Asked Questions
What indoor unit pairs with the Daikin RXV12AVJU9?
The RXV12AVJU9 is part of the Daikin Vista line and pairs with the FFA12AVJU9 indoor unit. HVAC365 can confirm the AHRI-matched combination.
What refrigerant and line set does it use?
It uses R-32 refrigerant. The line set is 1/4 x 3/8 in.
How cold can it heat?
Daikin lists heating operation down to 5°F outdoor temperature.
What power does it need?
208/230V 1-Phase, 60 Hz. MCA is 14.6 A and MOP is 15 A.
Does the outdoor unit include the indoor unit?
No. This listing is the outdoor unit only. The indoor unit, line set and controls are sold separately.
