Description
The Goodman 2.5 Ton 14.5 SEER2 7.5 HSPF2 80% AFUE 80,000 BTU Hybrid Dual Fuel Heat Pump & Gas Furnace Split System Downflow R-32 with Dual Fuel Kit (GLZS5BA3010 / GD9S800805CX / CAPTA3026C3 / AFE18-60A) is a complete dual fuel heating and cooling system that pairs an electric heat pump with a gas furnace. This AHRI-matched system combines a 2.5-ton R-32 heat pump, 80% AFUE single-stage gas furnace, and cased evaporator coil so the heat pump handles cooling and mild-weather heating, while the furnace takes over when outdoor temperatures drop.
Designed for downflow installation, the system uses the furnace's multi-speed ECM blower motor to move air for both the heat pump and the gas burners. With a dual-fuel thermostat or outdoor temperature control, the system switches to gas heat below a set balance point, which keeps homes comfortable in cold snaps and lets you choose the more economical fuel for your local utility rates.
Key Features
-
2.5 Ton Cooling Capacity – AHRI-rated 28,600 BTU/h of cooling
-
14.5 SEER2 / 12 EER2 – Certified matched-system cooling efficiency
-
7.5 HSPF2 Heat Pump Heating – 28,600 BTU/h at 47°F and 17,400 BTU/h at 17°F
-
80,000 BTU Gas Furnace – Single-stage heating with 80% AFUE efficiency
-
Dual Fuel Operation – Heat pump for efficient mild-weather heat, gas furnace for cold-weather backup
-
Dual Fuel Kit Included – Goodman AFE18-60A control keeps the heat pump and furnace from running at the same time
-
Downflow R-32 System – Uses lower-GWP R-32 refrigerant

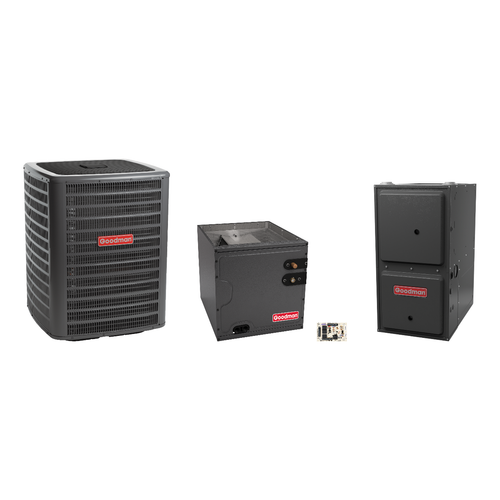

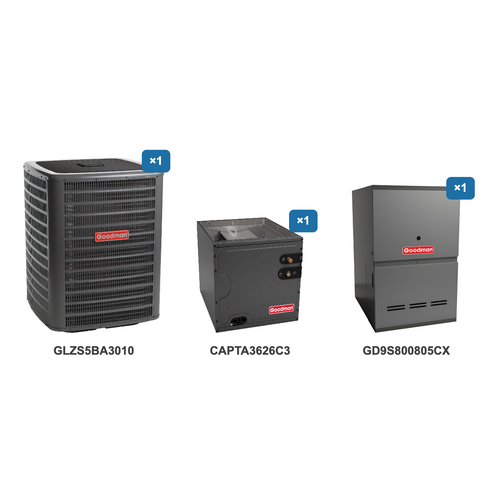

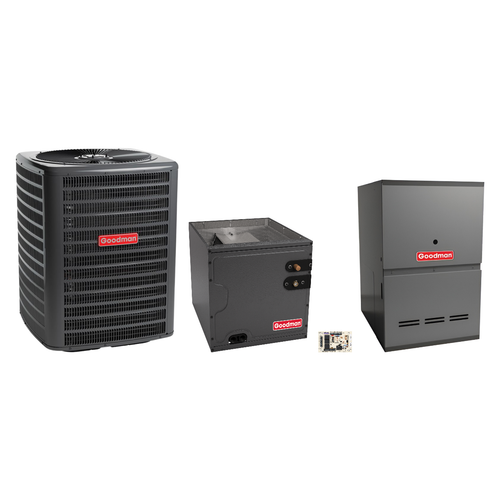

System Components Included
-
Goodman GLZS5BA3010 2.5 Ton R-32 Heat Pump
-
Goodman GD9S800805CX 80,000 BTU 80% AFUE Single-Stage Gas Furnace
-
Goodman CAPTA3026C3 Cased Upflow/Downflow R-32 Evaporator Coil
-
Goodman AFE18-60A Dual Fuel (All Fuel) Control Kit
Compatibility & Installation Notes
The GLZS5BA3010 / GD9S800805CX / CAPTA3026C3 system is AHRI certified under reference number 215382498 and is designed for residential downflow applications. Compatibility with the property's ductwork, electrical service, gas supply, refrigerant lines, condensate drainage, and furnace venting must be confirmed before installation. The included Goodman AFE18-60A dual fuel kit turns the heat pump off whenever the furnace runs (except during defrost) and adds a 3-minute compressor anti-short-cycle delay. Use a heat pump thermostat. An optional Goodman OT18-60A outdoor thermostat, or a dual fuel thermostat with an outdoor sensor, sets the switchover temperature.
Specifications
-
System Type: Hybrid Dual Fuel Heat Pump & Gas Furnace Split System
-
AHRI Reference Number: 215382498
-
Cooling Capacity: 28,600 BTU/h
-
Heat Pump Heating Capacity: 28,600 BTU/h at 47°F / 17,400 BTU/h at 17°F
-
Cooling Efficiency: 14.5 SEER2 / 12 EER2
-
Heating Efficiency: 7.5 HSPF2
-
Furnace Input / Output: 80,000 / 64,000 BTU/h
-
Furnace Efficiency: 80% AFUE
-
Refrigerant / Orientation: R-32 / Downflow
Installation Notes
-
Verify compatibility with the existing downflow ductwork
-
Confirm electrical service and natural gas connection requirements
-
Check the required refrigerant line sizes before installation
-
Ensure proper metal flue venting (Category I) for the 80% AFUE furnace
-
Mount the included AFE18-60A on the furnace near the 24 VAC control wiring and follow its wiring instructions
-
Use a heat pump thermostat and set the switchover (balance point) temperature
-
Installation should be completed by a qualified HVAC professional
Frequently Asked Questions
What is included in this Goodman HVAC system?
The package includes the GLZS5BA3010 heat pump, GD9S800805CX gas furnace, CAPTA3026C3 cased evaporator coil, and AFE18-60A dual fuel kit.
How does a dual fuel system work?
The heat pump cools in summer and heats in mild weather. When the outdoor temperature falls below the balance point set on the thermostat, the gas furnace takes over heating, so the system always runs on the more effective heat source.
What is the heating rating of the heat pump?
This matched system is rated at 7.5 HSPF2, with 28,600 BTU/h of heat pump heating at 47°F.
What is the cooling capacity of this system?
The system provides 2.5 tons with an AHRI-rated 28,600 BTU/h of cooling.
Is the furnace single-stage or two-stage?
The Goodman GD9S800805CX is a single-stage gas furnace.
What does 80% AFUE mean?
It means approximately 80% of the furnace's fuel is converted into usable heating energy.
Does this system use R-32 refrigerant?
Yes. The heat pump and evaporator coil are designed for R-32 refrigerant.
