Goodman 2.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4BA3010 GD9S800804BX CHPTA3630B3

Goodman 2.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4BA3010 GD9S800804BX CHPTA3630B3

Name: Goodman 2.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4BA3010 GD9S800804BX CHPTA3630B3
Brand: Goodman
SKU: GLXS4BA3010-GD9S800804BX-CHPTA3630B3
Price: 4560 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS4BA3010-GD9S800804BX-CHPTA3630B3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

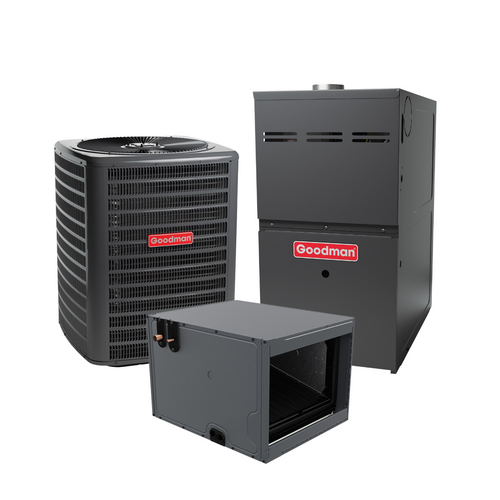

Goodman 2.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32, model GLXS4BA3010 GD9S800804BX CHPTA3630B3 - view 5

UPC:
Condition:: New
Width:: 48.00 (in)
Height:: 46.00 (in)
Depth:: 40.00 (in)

Questions about Goodman 2.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4BA3010 GD9S800804BX CHPTA3630B3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$4,560.00

Overview

Goodman 2.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4BA3010 GD9S800804BX CHPTA3630B3

Product details

Description

The Goodman 2.5 Ton 15.2 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4BA3010 GD9S800804BX CHPTA3630B3 (GLXS4BA3010 / GD9S800804BX / CHPTA3630B3) is a complete residential heating and cooling system built for reliable year-round comfort, pairing efficient R-32 cooling with dependable gas heating. This matched split system combines a 2.5-ton R-32 air conditioner condenser, cased evaporator coil, and 80% AFUE gas furnace to deliver consistent climate control in residential applications.

The included CHPTA3630B3 cased evaporator coil is designed for matched Goodman split-system operation and supports horizontal installation configurations. Working together with the condenser and furnace, it provides efficient refrigerant flow, dependable heat transfer, and consistent system performance.

Built with Goodman’s proven HVAC components, ECM blower technology, R-32 refrigerant compatibility, and horizontal installation flexibility, the GLXS4BA3010 / GD9S800804BX / CHPTA3630B3 system is a strong choice for replacement projects and new installations that need dependable heating and cooling performance.

Key Features

Complete Heating & Cooling System – Includes outdoor condenser, evaporator coil, and gas furnace
2.5 Ton Cooling Capacity – Provides 30,000 BTU cooling performance for residential applications
15.2 SEER2 Efficiency Rating – Helps improve cooling efficiency and reduce energy consumption
80,000 BTU Gas Furnace – Provides reliable heating capacity for residential comfort
80% AFUE Furnace Efficiency – Provides dependable fuel-to-heat performance
Single Stage Gas Furnace Operation – Delivers reliable heating operation
ECM Constant Torque Blower Motor – Helps improve airflow control and indoor comfort
R-32 Refrigerant Compatible – Uses modern, lower-GWP refrigerant technology

System Components Included

Goodman GLXS4BA3010 Air Conditioner Condenser

Capacity: 2.5 Ton / 30,000 BTU
Efficiency: 14 SEER2
Operation: Single Stage
Refrigerant: R-32
Compressor Type: Rotary
Voltage: 208/230V 1-Phase
Liquid Line: 3/8 in
Suction Line: 3/4 in
Application: Split Air Conditioning System

Goodman CHPTA3630B3 Evaporator Coil

Type: Cased Evaporator Coil
Capacity: 3 Ton
Configuration: Horizontal
Cabinet Width: 30"
Refrigerant: R-32
Metering Device: TXV
Line Sizes: 3/8 in liquid / 7/8 in suction
Application: Matched Indoor Coil

Goodman GD9S800804BX Gas Furnace

Heating Input: 80,000 BTU
Efficiency: 80% AFUE
Operation: Single Stage
Blower Motor: ECM Constant Torque
Configuration: Downflow / Horizontal
Heating Output: Approximately 64,000 BTU
Airflow: 1,600 CFM
Venting: Chimney / Category I
Fuel Type: Natural Gas (Propane Convertible)
Application: Residential Heating

Compatibility / Installation Notes

The Goodman GLXS4BA3010 GD9S800804BX CHPTA3630B3 System is designed for:

Residential Cooling Applications
Residential Gas Heating Applications
Horizontal Furnace Installations
Downflow Installation Options
Split HVAC System Applications
R-32 Refrigerant Systems
Replacement and New Construction Projects

Installation Notes

Verify compatibility with existing ductwork, electrical requirements, and gas connections before installation
Confirm airflow direction and furnace orientation before installation
Check refrigerant line sizing requirements
Ensure proper furnace venting according to local building codes
Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?
This package includes the GLXS4BA3010 air conditioner condenser, CHPTA3630B3 evaporator coil, and GD9S800804BX gas furnace.

What is the cooling capacity of this system?
The system provides 2.5 tons (30,000 BTU) of cooling capacity.

What is the furnace heating capacity?
The furnace provides 80,000 BTU input with 80% AFUE efficiency, producing approximately 64,000 BTU heating output.

What refrigerant does this system use?
The air conditioning system uses R-32 refrigerant.

Can this system be installed in a horizontal configuration?
Yes. This system is designed for horizontal installation applications with compatible indoor components.

Is this a complete HVAC system?
Yes. It includes the outdoor condenser, indoor evaporator coil, and gas furnace required for a complete gas-electric heating and cooling system.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

48.00 (in)

Height:

46.00 (in)

Depth:

40.00 (in)

Weight:

403.00 LBS

EER2:

12 EER2

Heating Stages:

Single Stage

Heating Input (BTU):

70,000 - 99,000 BTU

Airflow (CFM):

1,600

SEER2:

15 SEER2

Capacity (Tons):

2.5

Refrigerant Type:

R-32

AFUE:

80%

Unit Weight:

273 lb

Configuration:

Horizontal

Electrical Phase:

1-Phase

Electrical Frequency:

60 Hz

AHRI Certified:

Yes

Product Category:

Gas Heating & Air Conditioner Bundle

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Liquid Line Size:

3/8 in

Line Set Connection Type:

Braze

Vent Type:

Chimney / Category I

Shipping Weight:

343 lb

Prop 65 Warning:

Yes

Color:

Gray

Blower Motor Type:

ECM Constant Torque

AHRI Reference Number:

215214868

Cabinet Width (in):

17.5

Cooling Capacity (BTU):

30,000

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS4BA3010 - Nominal Capacity (Tons):

2.5

Condenser GLXS4BA3010 - Cooling Capacity (BTU/h):

30,000

Condenser GLXS4BA3010 - Refrigerant:

R-32

Condenser GLXS4BA3010 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS4BA3010 - Minimum Circuit Ampacity (MCA):

15.0 A

Condenser GLXS4BA3010 - Maximum Overcurrent Protection (MOP):

25 A

Condenser GLXS4BA3010 - Compressor Type:

Rotary

Condenser GLXS4BA3010 - Compressor Stages:

Single Stage

Condenser GLXS4BA3010 - Liquid Line Size:

3/8 in

Condenser GLXS4BA3010 - Suction Line Size:

3/4 in

Condenser GLXS4BA3010 - Sound Level (dB):

Condenser GLXS4BA3010 - Unit Weight:

115 lb

Condenser GLXS4BA3010 - Shipping Weight:

170 lb

Furnace GD9S800804BX - Input (BTU/h):

80,000

Furnace GD9S800804BX - Output (BTU/h):

64,000

Furnace GD9S800804BX - AFUE:

80%

Furnace GD9S800804BX - Heating Stages:

Single Stage

Furnace GD9S800804BX - Blower Motor Type:

ECM Constant Torque

Furnace GD9S800804BX - Maximum Cooling Capacity (Tons):

Furnace GD9S800804BX - Configuration:

Downflow/Horizontal

Furnace GD9S800804BX - Cabinet Width:

17.5 in

Furnace GD9S800804BX - Vent Type:

Chimney / Category I

Furnace GD9S800804BX - Gas Type:

Propane Convertible

Furnace GD9S800804BX - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GD9S800804BX - Unit Dimensions (W x D x H):

17.5 in x 28 in x 33.375 in

Furnace GD9S800804BX - Shipping Weight:

107 lb

Evaporator Coil CHPTA3630B3 - Nominal Capacity (Tons):

Evaporator Coil CHPTA3630B3 - Cased/Uncased:

Cased

Evaporator Coil CHPTA3630B3 - Configuration:

Horizontal

Evaporator Coil CHPTA3630B3 - Cabinet Width:

30 in

Evaporator Coil CHPTA3630B3 - Metering Device:

TXV

Evaporator Coil CHPTA3630B3 - Refrigerant:

R-32

Evaporator Coil CHPTA3630B3 - Liquid Line Size:

3/8 in

Evaporator Coil CHPTA3630B3 - Suction Line Size:

7/8 in

Model Combination:

GLXS4BA3010 / GD9S800804BX / CHPTA3630B3

System Type:

Gas Electric Split System

Cooling Capacity:

2.5 Ton (30,000 BTU)

Heating Output:

Approximately 64,000 BTU

Cooling Efficiency:

15.2 SEER2

Heating Efficiency:

80% AFUE

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
