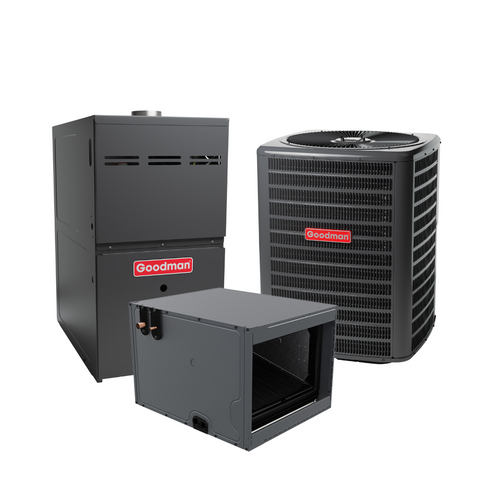

The Goodman 2 Ton 14.5 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS4BA2410 / GR9S800604BN / CHPTA2426B3) is a complete residential heating and cooling solution designed to provide reliable comfort throughout the year. This matched split system combines a 2-ton R-32 air conditioner condenser, horizontal cased evaporator coil, and 80% AFUE gas furnace to deliver efficient cooling and dependable heating performance for residential applications.

The included CHPTA2426B3 horizontal cased evaporator coil is designed for horizontal installation applications and features a matched TXV expansion device for improved refrigerant management and system performance. The coil works together with the condenser and furnace combination to provide reliable heat transfer and consistent indoor comfort.

Built with Goodman’s dependable HVAC components, R-32 refrigerant technology, ECM blower performance, and horizontal installation flexibility, the GLXS4BA2410 / GR9S800604BN / CHPTA2426B3 system is an excellent choice for residential replacement projects and new HVAC installations requiring reliable heating and cooling performance.

Key Features

• Complete Heating & Cooling System – Includes outdoor condenser, horizontal evaporator coil, and gas furnace
• 2 Ton Cooling Capacity – Provides 24,000 BTU cooling performance for residential comfort
• 14.5 SEER2 Efficiency Rating – Helps improve cooling efficiency and energy performance
• 60,000 BTU Gas Furnace – Provides reliable heating capacity for residential applications
• 80% AFUE Furnace Efficiency – Delivers dependable heating performance
• Single-Stage Gas Furnace Operation – Provides reliable and consistent heating output
• ECM Multi-Speed Blower Motor – Helps improve airflow control and indoor comfort
• R-32 Refrigerant Compatible – Uses modern refrigerant technology
• Single-Stage Cooling Operation – Provides dependable cooling performance

System Components Included

Goodman GLXS4BA2410 Air Conditioner Condenser

• Capacity: 2 Ton / 24,000 BTU
• Efficiency: 14.5 SEER2
• Operation: Single Stage
• Refrigerant: R-32
• Compressor Type: Single Stage
• Voltage: 208/230V, 1 Phase
• Application: Split Air Conditioning System

Goodman CHPTA2426B3 Horizontal Evaporator Coil

• Type: Horizontal Cased Evaporator Coil
• Capacity: 2 Ton Application
• Configuration: Horizontal
• Refrigerant: R-32 Compatible
• Expansion Device: Factory Installed TXV
• Cabinet Width: 26"
• Height: 17.5"
• Application: Matched Indoor Coil

Goodman GR9S800604BN Gas Furnace

• Heating Input: 60,000 BTU
• Efficiency: 80% AFUE
• Operation: Single Stage
• Blower Motor: ECM Multi-Speed
• Configuration: Upflow / Horizontal Compatible
• Heating Output: Approximately 48,000 BTU
• Fuel Type: Natural Gas
• Application: Residential Heating

Compatibility / Installation Notes

The Goodman GLXS4BA2410 GR9S800604BN CHPTA2426B3 System is designed for:

• Residential Cooling Applications
• Residential Gas Heating Applications
• Horizontal HVAC Installations
• Split System Applications
• R-32 Refrigerant Systems
• Replacement and New Construction Projects

Specifications:

• Brand: Goodman
• Model Combination: GLXS4BA2410 / GR9S800604BN / CHPTA2426B3
• System Type: Gas Electric Split System
• Cooling Capacity: 2 Ton (24,000 BTU)
• Heating Input: 60,000 BTU
• Heating Output: Approximately 48,000 BTU
• Cooling Efficiency: 14.5 SEER2
• Heating Efficiency: 80% AFUE

Installation Notes

• Verify compatibility with existing ductwork, electrical requirements, and gas connections before installation
• Confirm horizontal airflow direction before installation
• Check refrigerant line sizing requirements
• Ensure proper metal flue venting for the 80% AFUE furnace
• Verify local installation code requirements
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?
This package includes the GLXS4BA2410 air conditioner condenser, CHPTA2426B3 horizontal evaporator coil, and GR9S800604BN gas furnace.

What is the cooling capacity of this system?
The system provides 2 tons (24,000 BTU) of cooling capacity.

What is the furnace heating capacity?
The furnace provides 60,000 BTU input with 80% AFUE efficiency, producing approximately 48,000 BTU heating output.

What refrigerant does this system use?
The air conditioning system uses R-32 refrigerant technology.

Can this system be installed horizontally?
Yes. The system includes a horizontal evaporator coil and furnace configuration designed for horizontal installation applications.

Is this a complete HVAC system?
Yes. It includes the outdoor condenser, indoor evaporator coil, and gas furnace required for a complete gas-electric heating and cooling system.
