Goodman 3.5 Ton 14 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4BA4210 GD9T801005CX CHPTA4830C3

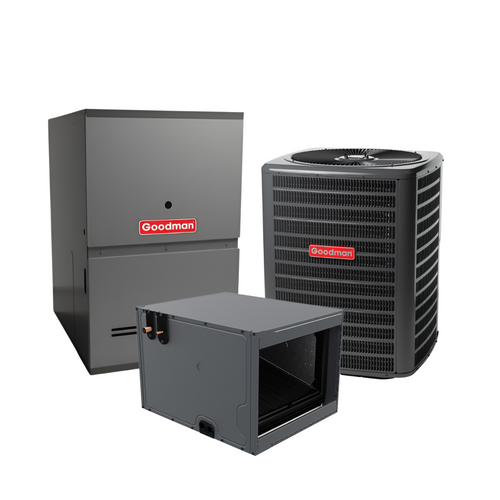

The Goodman 3.5 Ton 14 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Horizontal with R-32 Refrigerant (GLXS4BA4210-GD9T801005CX-CHPTA4830C3) is a matched residential HVAC system designed to provide reliable cooling and gas heating for year-round indoor comfort. This configuration combines the GLXS4BA4210 outdoor air conditioner, GD9T801005CX two-stage gas furnace, and CHPTA4830C3 horizontal cased evaporator coil for horizontal installation applications.

With a nominal 3.5-ton / 42,000 BTU cooling capacity, 14 SEER2 efficiency, and a 100,000 BTU furnace rated at 80% AFUE, this system provides dependable residential performance. The cooling circuit uses R-32 lower-GWP refrigerant, while the two-stage furnace supports improved heating comfort and temperature consistency.

Key Features

• 3.5 Ton Cooling Capacity – Provides approximately 42,000 BTU of nominal cooling capacity
• 14 SEER2 Efficiency – Designed for efficient seasonal cooling performance
• 100,000 BTU Gas Furnace – Provides substantial residential heating capacity
• 80% AFUE Rating – Delivers dependable gas heating performance
• Two-Stage Gas Heating – GD9T furnace supports staged operation for improved comfort control
• Horizontal R-32 System – Horizontal configuration with lower-GWP R-32 refrigerant in the cooling circuit

Product Specifications

• Brand: Goodman
• Outdoor Condenser Model: GLXS4BA4210
• Gas Furnace Model: GD9T801005CX
• Evaporator Coil Model: CHPTA4830C3
• Cooling Capacity / Efficiency: 3.5 Ton / 14 SEER2
• Heating Capacity / Efficiency: 100,000 BTU / 80% AFUE
• Configuration / Refrigerant: Horizontal / R-32

Benefits

• Provides both electric air conditioning and gas heating for year-round comfort
• Two-stage furnace operation helps provide more consistent indoor heating
• Horizontal configuration supports applications with limited vertical installation space
• Matched Goodman components simplify equipment selection for compatible residential installations

Compatibility & Installation

The Goodman GLXS4BA4210-GD9T801005CX-CHPTA4830C3 package combines the primary components required for a horizontal gas/electric split-system installation. Proper sizing, airflow setup, refrigerant installation, and professional commissioning are necessary to achieve the listed system performance.

Installation considerations:

• Verify the 3.5-ton cooling and 100,000 BTU furnace capacities against the home's calculated loads
• Confirm the ductwork and installation space support the required horizontal configuration
• Verify gas supply, combustion air, furnace venting, electrical, and condensate requirements
• Follow applicable R-32 A2L refrigerant handling and installation safety requirements
• Install according to Goodman instructions and applicable local HVAC codes

Frequently Asked Questions

What cooling capacity does this Goodman system provide?
The system provides a nominal 3.5-ton cooling capacity, equivalent to approximately 42,000 BTU.

What is the cooling efficiency rating?
This matched configuration is listed at 14 SEER2.

What is the furnace capacity and efficiency?
The GD9T801005CX furnace has a 100,000 BTU input capacity and an 80% AFUE rating.

Is the furnace single-stage or two-stage?
The GD9T801005CX is a two-stage gas furnace, providing staged heating operation for improved comfort control.

What refrigerant does this system use?
The air-conditioning circuit uses R-32, a lower-GWP A2L refrigerant.

What installation orientation is this system designed for?
This package is configured for horizontal installation, making it suitable for applications requiring horizontal airflow.
