Goodman 3 Ton 14.5 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4MA3610 GD9S801005CX CHPTA4230C3

Goodman 3 Ton 14.5 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4MA3610 GD9S801005CX CHPTA4230C3

Name: Goodman 3 Ton 14.5 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4MA3610 GD9S801005CX CHPTA4230C3
Brand: Goodman
SKU: GLXS4MA3610-GD9S801005CX-CHPTA4230C3
Price: 5233 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS4MA3610-GD9S801005CX-CHPTA4230C3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

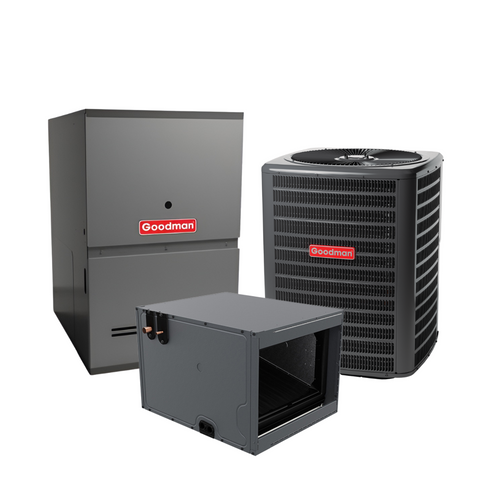

Goodman 3 Ton 14 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32, model GLXS4MA3610 GD9S801005CX CHPTA4230C3 - view 5

UPC:
Condition:: New
Width:: 48.00 (in)
Height:: 46.00 (in)
Depth:: 40.00 (in)

Questions about Goodman 3 Ton 14.5 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4MA3610 GD9S801005CX CHPTA4230C3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$5,233.00

Overview

Goodman 3 Ton 14.5 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4MA3610 GD9S801005CX CHPTA4230C3

Product details

Description

The Goodman GLXS4MA3610 split system delivers 3 tons of cooling capacity with a 14.5 SEER2 efficiency rating for dependable residential comfort. Its 100,000 BTU gas furnace provides reliable heating with an 80% AFUE rating, making it suitable for homes with higher heating requirements.

Designed for horizontal installation, this matched system includes an R-32 air conditioner, a single-stage gas furnace, and a cased horizontal evaporator coil. The furnace features a nine-speed ECM blower motor for consistent airflow and efficient operation.

Key Features

3-ton cooling capacity
14.5 SEER2 cooling efficiency
100,000 BTU single-stage gas furnace
Nine-speed ECM blower motor
Horizontal design with R-32 refrigerant

System Specifications

Cooling Capacity: 36,000 BTU
Heating Input Capacity: 100,000 BTU
Cooling Efficiency: 14.5 SEER2
Furnace Efficiency: 80% AFUE
Refrigerant Type: R-32
Installation Orientation: Horizontal

System Components Included

Goodman GLXS4MA3610 3 Ton 14.5 SEER2 R-32 Air Conditioner
Goodman GD9S801005CX 100,000 BTU 80% AFUE Single-Stage Gas Furnace
Goodman CHPTA4230C3 Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

This system requires compatible horizontal ductwork, gas and electrical connections, refrigerant lines, condensate drainage, and approved furnace venting. Professional installation and proper HVAC load calculations are recommended.

Frequently Asked Questions

Does this system provide heating and cooling?

Yes. It includes an air conditioner for cooling and a gas furnace for heating.

Is the furnace single-stage or two-stage?

The GD9S801005CX is a single-stage gas furnace.

What does 80% AFUE mean?

It means approximately 80% of the furnace’s fuel is converted into usable heating energy.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.

Is the horizontal evaporator coil included?

Yes. The Goodman CHPTA4230C3 cased horizontal evaporator coil is included

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

48.00 (in)

Height:

46.00 (in)

Depth:

40.00 (in)

Weight:

408.00 LBS

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

AHRI Certified:

Yes

Capacity (Tons):

Configuration:

Horizontal

Shipping Weight:

358 lb

Vent Type:

Chimney / Category I

AFUE:

80%

Airflow (CFM):

2,000

AHRI Reference Number:

214860427

Cabinet Width (in):

EER2:

12 EER2

Electrical Frequency:

60 Hz

Color:

Gray

Electrical Phase:

1-Phase

Blower Motor Type:

ECM Constant Torque

Refrigerant Type:

R-32

Line Set Connection Type:

Braze

SEER2:

14 SEER2

Heating Input (BTU):

100,000 - 149,000 BTU

Unit Weight:

328 lb

Heating Stages:

Single Stage

Prop 65 Warning:

Yes

Product Category:

Gas Heating & Air Conditioner Bundle

Liquid Line Size:

3/8 in

Cooling Capacity (BTU):

36,000

EER:

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS4MA3610 - Nominal Capacity (Tons):

Condenser GLXS4MA3610 - Cooling Capacity (BTU/h):

36,000

Condenser GLXS4MA3610 - Refrigerant:

R-32

Condenser GLXS4MA3610 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS4MA3610 - Minimum Circuit Ampacity (MCA):

17.8 A

Condenser GLXS4MA3610 - Maximum Overcurrent Protection (MOP):

30 A

Condenser GLXS4MA3610 - Compressor Type:

Scroll

Condenser GLXS4MA3610 - Compressor Stages:

Single Stage

Condenser GLXS4MA3610 - Liquid Line Size:

3/8 in

Condenser GLXS4MA3610 - Suction Line Size:

7/8 in

Condenser GLXS4MA3610 - Sound Level (dB):

Condenser GLXS4MA3610 - Unit Dimensions (W x D x H):

29 in x 29 in x 39.5 in

Condenser GLXS4MA3610 - Unit Weight:

158 lb

Condenser GLXS4MA3610 - Shipping Weight:

173 lb

Furnace GD9S801005CX - Input (BTU/h):

100,000

Furnace GD9S801005CX - Output (BTU/h):

80,000

Furnace GD9S801005CX - AFUE:

80%

Furnace GD9S801005CX - Heating Stages:

Single Stage

Furnace GD9S801005CX - Blower Motor Type:

ECM Constant Torque

Furnace GD9S801005CX - Maximum Cooling Capacity (Tons):

Furnace GD9S801005CX - Configuration:

Downflow/Horizontal

Furnace GD9S801005CX - Cabinet Width:

21 in

Furnace GD9S801005CX - Vent Type:

Chimney / Category I

Furnace GD9S801005CX - Gas Type:

Propane Convertible

Furnace GD9S801005CX - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GD9S801005CX - Unit Dimensions (W x D x H):

21 in x 28 in x 33.375 in

Furnace GD9S801005CX - Shipping Weight:

115 lb

Evaporator Coil CHPTA4230C3 - Nominal Capacity (Tons):

3.5

Evaporator Coil CHPTA4230C3 - Cased/Uncased:

Cased

Evaporator Coil CHPTA4230C3 - Configuration:

Horizontal

Evaporator Coil CHPTA4230C3 - Cabinet Width:

30 in

Evaporator Coil CHPTA4230C3 - Metering Device:

TXV

Evaporator Coil CHPTA4230C3 - Refrigerant:

R-32

Evaporator Coil CHPTA4230C3 - Liquid Line Size:

3/8 in

Evaporator Coil CHPTA4230C3 - Suction Line Size:

7/8 in

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
