Goodman 3 Ton 19 SEER2 Heat Pump Air Conditioner Split System | GZV7SA3610 AHVE60DP1300

Goodman

5 Star RatingLeave a review

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
GZV7SA3610-AHVE60DP1300
Your Price $0.00

Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Condition:
New
Width:
37.00 (in)
Height:
39.00 (in)
Depth:
12.63 (in)

Questions about Goodman 3 Ton 19 SEER2 Heat Pump Air Conditioner Split System | GZV7SA3610 AHVE60DP1300?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Avaliable

$6,664.00

20 in stock • Ships in 2-3 Business Days
Overview

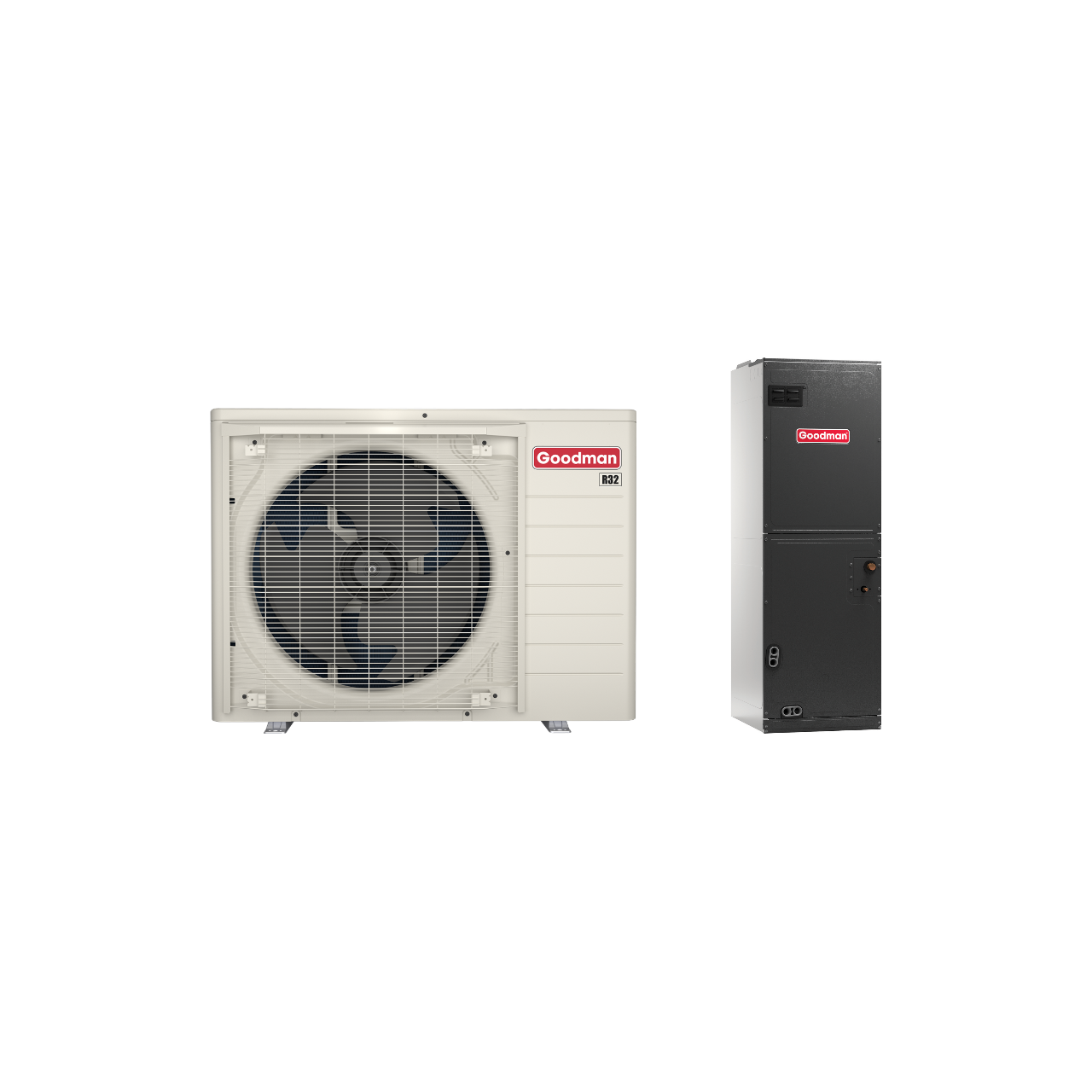

Goodman 3 Ton 19 SEER2 Heat Pump Air Conditioner Split System | GZV7SA3610 AHVE60DP1300

Goodman 3 Ton Heat Pump Split System
Product details

Description

This bundled package combines the outdoor unit (GZV7SA3610) with the air handler (AHVE60DP1300) to create a complete split-system pairing designed for simpler buying and cleaner system matching. Instead of building a system from separate listings, you’re starting with an indoor/outdoor combination selected to go together—ideal when you want speed without introducing compatibility risk.

For contractors and property managers, bundles like this reduce quoting friction and keep equipment selection consistent across homes, turns, or recurring replacement work. For homeowners, it keeps the decision centered on a whole-home comfort system rather than a confusing parts hunt. That’s especially useful when your priority is getting the right match quickly and confidently.

If your purchase is driven by local efficiency requirements or rebate opportunities, confirm the official match documentation tied to these exact model numbers for your ZIP code. Local rules and programs can vary, and verifying the rated match is what ensures you’re selecting the right system for your geography.

Key Features

  • One-line-item system pairing: Outdoor unit and air handler bundled for simpler purchasing.

  • Reduced selection risk: Helps avoid mismatched component combinations.

  • Ducted comfort configuration: Air-handler-based indoor setup for whole-home applications.

  • GEO-ready verification: Supports confirming match documentation for your state/utility territory.

  • Built for repeatable ordering: Good option for multi-property and standardized replacement work.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Goodman
Width:
37.00 (in)
Height:
39.00 (in)
Depth:
12.63 (in)
Weight:
335.00 LBS
Capacity (Tons):
3
Color:
Gray
Configuration:
Multi-Position
Airflow (CFM):
2,000
Cooling Capacity (BTU):
36,000
Electrical Frequency:
60 Hz
Product Category:
Heat Pump Split System
Heating Output (BTU):
30,000 - 39,000 BTU
Electrical Phase:
1-Phase
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Refrigerant Type:
R-32
SEER2:
18 SEER2
Unit Weight:
350 lb
Shipping Weight:
385 lb
Suction Line Size:
7/8 in
AHRI Reference Number:
215429747
AHRI Certified:
Yes
EER2:
10 EER2
ETL Listed:
Yes
Energy Star Listed:
No
Liquid Line Size:
3/8 in
Max Sound (dB):
68
Maximum Overcurrent Protection (MOP):
35
ISO Certified:
Yes
Minimum Circuit Ampacity (MCA):
25
HSPF2:
8 HSPF2
Prop 65 Warning:
Yes
DOE Regional Compliance:
Nationwide
Compressor Stages:
Variable Speed
Discharge:
Side
Matched Indoor Type:
Air Handler
Voltage / Phase:
208/230V 1-Phase
Heat Pump GZV7SA3610 - Nominal Capacity (Tons):
3
Heat Pump GZV7SA3610 - Cooling Capacity (BTU/h):
36,000
Heat Pump GZV7SA3610 - Refrigerant:
R-32
Heat Pump GZV7SA3610 - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Heat Pump GZV7SA3610 - Minimum Circuit Ampacity (MCA):
31.8 A
Heat Pump GZV7SA3610 - Maximum Overcurrent Protection (MOP):
35 A
Heat Pump GZV7SA3610 - Compressor Type:
Inverter
Heat Pump GZV7SA3610 - Compressor Stages:
Variable Speed
Heat Pump GZV7SA3610 - Liquid Line Size:
3/8 in
Heat Pump GZV7SA3610 - Suction Line Size:
1-1/8 in
Heat Pump GZV7SA3610 - Unit Dimensions (W x D x H):
37 in x 12.625 in x 39 in
Heat Pump GZV7SA3610 - Unit Weight:
179 lb
Heat Pump GZV7SA3610 - Shipping Weight:
185 lb
Air Handler AHVE60DP1300 - Nominal Capacity (Tons):
5
Air Handler AHVE60DP1300 - Blower Motor Type:
ECM Variable Speed
Air Handler AHVE60DP1300 - Configuration:
Multi-Position
Air Handler AHVE60DP1300 - Metering Device:
EEV
Air Handler AHVE60DP1300 - Refrigerant:
R-32
Air Handler AHVE60DP1300 - Voltage/Phase/Hz:
208-230 V / 1 Ph
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Videos5 videos
Goodman Air Conditioning and Heating - Built In America | HVAC365
Frequently asked questions
What size is the ?
The is a 3 ton unit.
How much cooling does the provide?
It is rated for 36,000 BTU of cooling.
What refrigerant does the use?
It uses R-32 refrigerant.
What is the SEER2 rating of the ?
The is rated at 18 SEER2 SEER2.
Is the AHRI certified?
Yes. The AHRI reference number is 215429747.
What is the HSPF2 heating efficiency of the ?
It is rated at 8 HSPF2 HSPF2.
What power supply does the need?
It requires 208/230V 1-Phase power.
What warranty comes with the GZV7SA3610-AHVE60DP1300?
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Who makes the GZV7SA3610-AHVE60DP1300?
The GZV7SA3610-AHVE60DP1300 is made by Goodman.
