Goodman 4 Ton 14 SEER2 92% AFUE 120,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS4BA4810 GR9S921205DN CHPTA6030D3

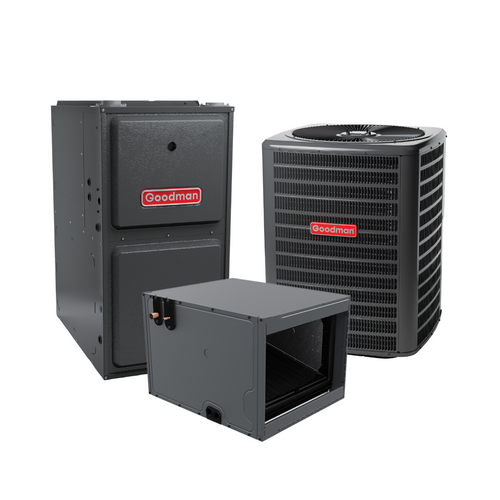

The Goodman 4 Ton 14 SEER2 92% AFUE 120,000 BTU Gas Electric Air Conditioner Split System Horizontal with R-32 Refrigerant (GLXS4BA4810-GR9S921205DN-CHPTA6030D3) is a matched residential HVAC system designed to provide reliable cooling and high-capacity gas heating for year-round indoor comfort. This configuration combines the GLXS4BA4810 outdoor air conditioner, GR9S921205DN gas furnace, and CHPTA6030D3 horizontal cased evaporator coil for horizontal installation applications.

With a nominal 4-ton / 48,000 BTU cooling capacity, 14 SEER2 cooling efficiency, and a 120,000 BTU furnace rated at 92% AFUE, this Goodman system delivers dependable climate control with improved heating efficiency. The cooling circuit uses R-32 lower-GWP refrigerant, while the horizontal configuration supports installations where equipment and airflow are arranged horizontally.

Key Features

• 4 Ton Cooling Capacity – Provides approximately 48,000 BTU of nominal cooling capacity for larger residential applications
• 14 SEER2 Efficiency – Designed for reliable seasonal cooling performance
• 120,000 BTU Gas Furnace – Provides high heating capacity for larger residential comfort requirements
• 92% AFUE Rating – High-efficiency furnace helps improve fuel utilization during heating operation
• Single-Stage Gas Furnace – Provides dependable and consistent heating performance
• Horizontal R-32 System – Horizontal configuration using modern lower-GWP R-32 refrigerant technology

Product Specifications

• Brand: Goodman
• Outdoor Condenser Model: GLXS4BA4810
• Gas Furnace Model: GR9S921205DN
• Evaporator Coil Model: CHPTA6030D3
• Cooling Capacity / Efficiency: 4 Ton / 14 SEER2
• Heating Capacity / Efficiency: 120,000 BTU / 92% AFUE
• System Configuration / Refrigerant: Horizontal / R-32

Benefits

• Provides complete cooling and high-capacity gas heating from one matched HVAC system
• 120,000 BTU furnace supports larger residential heating requirements
• 92% AFUE rating improves heating efficiency compared with standard-efficiency models
• Horizontal configuration provides installation flexibility for compatible applications
• Matched Goodman components help simplify equipment selection and replacement planning

Compatibility & Installation

The Goodman GLXS4BA4810-GR9S921205DN-CHPTA6030D3 package combines the primary components required for a horizontal gas/electric split-system installation. Proper sizing, airflow setup, refrigerant installation, and professional commissioning are required to achieve reliable system performance.

Installation considerations:

• Verify the 4-ton cooling and 120,000 BTU heating capacities match the home's calculated requirements
• Confirm ductwork and available installation space support the horizontal configuration
• Verify gas supply, electrical connections, furnace venting, and condensate drainage requirements
• Follow R-32 A2L refrigerant handling and safety requirements
• Install according to Goodman instructions and applicable HVAC codes

Frequently Asked Questions

What cooling capacity does this Goodman system provide?
The system provides a nominal 4-ton cooling capacity, equivalent to approximately 48,000 BTU.

What is the cooling efficiency rating?
This matched configuration is listed at 14 SEER2.

What is the furnace capacity and efficiency?
The GR9S921205DN furnace has a 120,000 BTU input capacity and is rated at 92% AFUE.

Is the furnace single-stage or two-stage?
The GR9S921205DN is a single-stage gas furnace, designed for dependable residential heating.

What refrigerant does this system use?
The air-conditioning circuit uses R-32, a lower-GWP A2L refrigerant used in newer HVAC systems.

What installation orientation does this system support?
This configuration is designed for horizontal installation, where airflow is arranged horizontally through the system.
