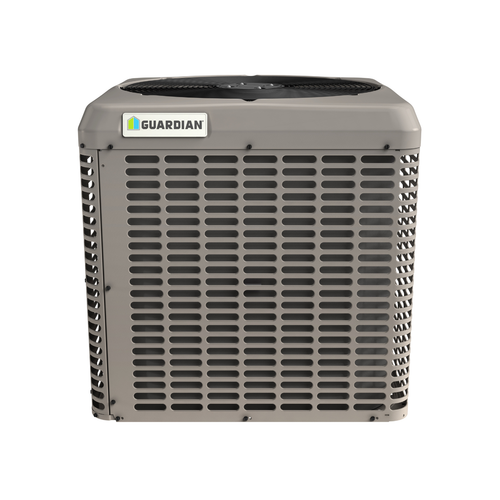

The Guardian by York 5 Ton 14.3 SEER2 Air Conditioner Condenser with R-454B Refrigerant (RC460E2S11) is an outdoor condensing unit designed for compatible residential split-system cooling applications. With a 5-ton capacity, 14.3 SEER2 efficiency, and R-454B refrigerant, it provides an efficient cooling solution when matched with compatible indoor equipment.

The RC460E2S11 features a single-stage scroll compressor and is designed to be paired with compatible Guardian indoor coils, furnaces, or air handlers. Guardian's published documentation lists multiple certified system combinations using this condenser.

Key Features

• 5 Ton Capacity – Designed for larger residential cooling applications
• 14.3 SEER2 Efficiency – Provides efficient seasonal cooling performance
• R-454B Refrigerant – Uses lower-GWP A2L refrigerant technology
• Single-Stage Operation – Provides straightforward cooling operation
• Scroll Compressor – Designed for dependable compressor performance
• Split-System Compatible – Designed for use with compatible Guardian indoor equipment
• Outdoor Condenser – Designed for exterior installation
• Copper Refrigerant Connections – 3/8" liquid and 7/8" vapor connections
• 10-Year Limited Parts Warranty – Manufacturer-listed limited parts coverage

Product Specifications

• Brand: Guardian by York
• Model: RC460E2S11
• Product Type: Air Conditioner Condenser
• Nominal Capacity: 5 Ton
• Nominal Cooling Capacity: 60,000 BTU
• Efficiency: 14.3 SEER2
• Refrigerant: R-454B
• Compressor Type: Scroll
• Compressor Configuration: Single Stage
• Voltage: 208/230V
• Phase: Single Phase
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 30.7A
• Maximum Fuse: 50A
• Liquid Connection: 3/8"
• Vapor Connection: 7/8"
• Dimensions: 42.75" H x 38" W x 31.75" D
• Weight: 235 lb
• Application: Residential Split-System Cooling

Benefits

• Provides reliable cooling for larger residential applications
• Offers 5-ton cooling capacity
• Delivers up to 14.3 SEER2 system efficiency depending on matched indoor equipment
• Uses R-454B refrigerant technology
• Features a single-stage scroll compressor
• Supports multiple compatible indoor system configurations
• Suitable for replacement and new split-system installations

Compatibility & Installation

The Guardian RC460E2S11 is an outdoor condenser designed to be matched with compatible Guardian indoor coils, furnaces, or air handlers. Actual system efficiency varies according to the matched indoor equipment. For example, Guardian lists a 5-ton air-handler combination at 14.25 SEER2 and 12 EER2, while other certified combinations are rated at 14.0 or 13.8 SEER2.

Installation considerations:

• Verify the 5-ton system size is appropriate for the application
• Confirm the condenser and indoor equipment are properly matched
• Verify electrical and refrigerant-line requirements
• Follow applicable R-454B/A2L installation and safety requirements
• Confirm proper airflow and ductwork configuration
• Follow manufacturer installation instructions and local codes
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What size is the Guardian RC460E2S11?
The RC460E2S11 is a 5-ton air conditioner condenser with a nominal 60,000 BTU capacity.

What is the SEER2 rating?
The condenser is part of 14.3 SEER2 system configurations, although exact certified system ratings can vary depending on the indoor equipment selected.

What refrigerant does this condenser use?
It uses R-454B refrigerant.

Does this condenser provide heating?
No. The RC460E2S11 is a straight-cool air conditioner condenser designed for cooling applications.

What type of compressor does it use?
The unit uses a single-stage scroll compressor.
