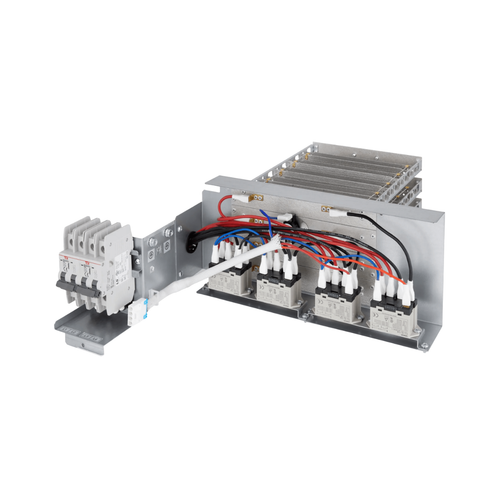

The LG 10kW Electric Heat Strip for KNUKE Series Air Handlers (ANEH103C2) is an auxiliary electric heater kit designed for compatible LG multi-position air handling units. It provides 10kW of supplemental electric heating and is intended to integrate with supported LG air-handler configurations. LG documentation identifies ANEH103C2 as the 10kW electric heater accessory.

The heater is designed for 208/230V, 60Hz, single-phase electrical service. At 208/230V, it has an input/heating capacity of approximately 8.2/10kW and heater current of 39.4/43.5 amps. The specified minimum circuit amps are 49.3/54.3A, with a 60A circuit breaker and 6 AWG power cable for the single-circuit configuration.

Key Features

• 10kW Electric Heating Capacity – Provides supplemental electric heat for compatible air handlers
• LG Multi-Position Air Handler Accessory – Designed for supported LG air-handling units
• 208/230V Operation – Designed for 60Hz, single-phase electrical service
• Factory-Designed Heater Kit – Integrates with compatible LG air-handler systems
• Single-Circuit Configuration – Uses a dedicated single electrical circuit
• 60A Circuit Breaker – Specified for the single-circuit configuration
• R-32 System Accessory – Designed for LG's R-32 multi-position air-handler platform

Product Specifications

• Brand: LG
• Model: ANEH103C2
• Product Type: Electric Heat Kit / Heat Strip
• Heating Capacity: 10kW
• Input Power: 8.2 / 10kW at 208/230V
• Heater Amperage: 39.4 / 43.5A
• Minimum Circuit Amps: 49.3 / 54.3A
• Power Supply: 208/230V, 60Hz, 1 Phase
• Circuit Breaker: 60A
• Power Cable: 6 AWG
• Conduit Size: 1"
• Knockout Diameter: 1-23/64"
• Application: Compatible LG Multi-Position Air Handling Units

Benefits

• Adds supplemental electric heating capability
• Provides 10kW of heating capacity
• Designed specifically for compatible LG multi-position air handlers
• Provides an integrated heater solution for supported HVAC systems
• Supports multiple compatible LG air-handler capacities
• Uses a factory-designed electrical and mounting configuration

Compatibility & Installation

The LG ANEH103C2 is intended for compatible LG multi-position air handling units. LG documentation lists the 10kW heater for supported air-handler capacities ranging from 18k to 60k BTU/h, while the 10kW heater is not available for the 12k BTU/h model.

Installation considerations:

• Verify compatibility with the specific LG air-handler model
• Confirm available electrical service and circuit requirements
• Verify wiring, breaker, and conductor requirements
• Follow LG installation instructions
• Follow applicable electrical codes and local requirements
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is the LG ANEH103C2?
It is a 10kW electric heater kit designed for compatible LG multi-position air handling units.

What is the heating capacity?
The ANEH103C2 provides up to 10kW of electric heating capacity at 230V.

What voltage does it use?
It is designed for 208/230V, 60Hz, single-phase power.

What circuit breaker is specified?
LG's technical data specifies a 60A circuit breaker for the single-circuit configuration.

Is ANEH103C2 compatible with every LG air handler?
No. Compatibility depends on the specific LG multi-position air-handler model and capacity. LG provides compatibility tables for supported units.
