Description
Overview

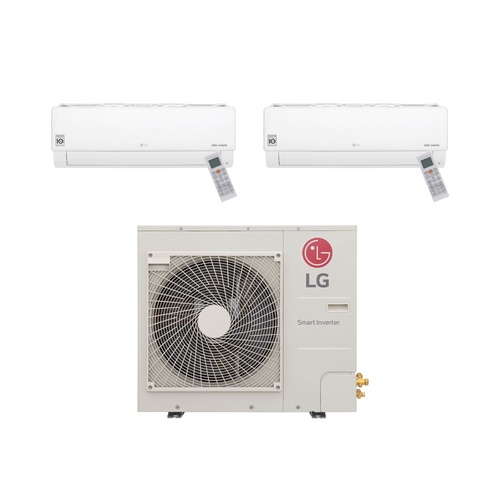

This bundled LG Multi F ductless heat pump system pairs one KUMXB241A R32 outdoor unit with 2 wall-mounted indoor zones for room-by-room control. The outdoor unit is rated at 24,000 Btu/h cooling and 24,600 Btu/h heating, while each indoor unit serves its own space with independent setpoints. This configuration includes 2Ć KNUAB121A 12,000 Btu/h wall-mounted indoor units, connected as a single coordinated refrigerant system. Seasonal efficiency is 21.5 SEER2 for cooling and 9.6 HSPF2 for heating for this matched indoor-unit combination. All components use electronic expansion valve metering with R32 refrigerant for precise capacity control across changing loads. It is designed for U.S. residential and light commercial applications where multiple rooms need zoning without ductwork.
Performance
The KUMXB241A outdoor unit uses a twin rotary inverter-driven compressor to modulate capacity instead of cycling, improving part-load efficiency and temperature stability. Rated combination performance for this system includes 11.1 EER2 and 21.5 SEER2 cooling, supporting lower operating costs during long run times. For heating, the system maintains output through variable-speed operation and coordinated refrigerant flow to the active zones, with a rated HSPF2 of 9.6. Outdoor operating range supports cooling down to 14Ā°F and heating operation down to -4Ā°F, enabling shoulder-season cooling and cold-weather heat pump use. A Gold Finā¢ coated outdoor coil helps protect the heat exchanger in humid and coastal environments where corrosion risk is higher. Each indoor unitās cross-flow fan and coil assembly is sized for steady airflow at multiple fan speeds to match the outdoor unitās modulation.
Smart Features
Each wall-mounted indoor unit includes built-in WiāFi for control through the LG ThinQ app, supporting temperature changes, fan speed selection, and mode control by zone. Group control and scheduling features such as a 24-hour on/off timer help coordinate daily setbacks and occupancy patterns. Auto restart functionality restores operation after power interruptions, which is useful for vacation homes and multi-family common areas. Self-diagnosis and service-oriented controls support troubleshooting during commissioning and maintenance visits. Controller options can be expanded with compatible wired or centralized controls where a dedicated thermostat-style interface is preferred. Because each indoor unit communicates with the outdoor inverter platform, the system can prioritize the zones calling for capacity and reduce output when demand drops.
Comfort & Noise
Zoned operation reduces temperature swing by delivering capacity only where it is needed, rather than pushing a single air stream through ducts to the whole building. Indoor sound levels vary by model and fan speed, and this bundle includes 2Ć 12,000 Btu/h (KNUAB121A) wall units with 282/233/177 CFM fan airflow and 38/34/29 dB(A) sound levels (high/med/low). The outdoor unit sound pressure rating is 50/54 dB(A) (cool/heat), helping with placement near patios, property lines, and multifamily corridors. Auto swing vane control distributes air across the room to limit hot or cold spots at the wall unit discharge. Dehumidification performance is supported by continuous low-speed operation and coil temperature control, with indoor moisture removal rates ranging from 2.75 to 2.75 pints/hour depending on zone size. Multiple fan speeds let each room balance noise level versus airflow, which is useful for bedrooms, offices, and open living areas.
Use Case Fit
This configuration is a practical fit for apartments, townhomes, and multi-level houses where zoning helps address different exposures such as sun-facing rooms versus interior spaces. With 2 indoor zones, occupants can condition bedrooms, living spaces, and home offices independently to reduce overconditioning. The wall-mounted format supports fast installation on exterior or interior walls and keeps equipment accessible for filter maintenance. R32 refrigerant and inverter modulation make the system well-suited for regions with long cooling seasons, frequent part-load operation, or mixed shoulder-season loads. Heating operation down to -4Ā°F extends heat pump usability in colder U.S. climates, while still allowing efficient cooling when outdoor temperatures climb. Where future space changes are expected, the multi-zone architecture supports balancing capacity by adjusting zone setpoints rather than resizing ductwork.
Value & Reliability
Protective outdoor coil treatment and inverter soft-start behavior help reduce stress during start-up and improve long-term durability. Defrost and deicing control logic supports winter reliability by managing frost accumulation on the outdoor coil during heating operation. The system includes washable pre-filters and a 3M Micro Dust secondary filter in each indoor unit to support routine indoor air maintenance. Self-cleaning indoor coil functionality helps reduce moisture-related buildup and supports consistent airflow over time. R32 leak detection sensors in the indoor units add an additional safety and service indicator layer for installations in occupied spaces. Because the outdoor unit can ramp output to match the combined zone demand, it can reduce cycling wear compared with fixed-capacity equipment.
Summary Wrap-Up
Overall, this LG Multi F bundle delivers a coordinated outdoor inverter platform with 2 wall-mounted zones for tailored comfort across multiple rooms. Matched seasonal ratings of 21.5 SEER2 and 9.6 HSPF2 support efficiency goals for homeowners, property managers, and HVAC contractors specifying ductless solutions. The combination of WiāFi control, zone-level airflow adjustment, and low-ambient capability makes it a strong choice for both retrofit and new construction projects. With cross-flow indoor fans and a quiet outdoor unit, the system is appropriate for noise-sensitive spaces such as bedrooms and multi-family applications. R32 refrigerant, EEV control, and inverter modulation provide the control precision needed for stable temperatures during partial loads. For buyers who want a complete multi-zone package with clear component roles, this bundle provides the outdoor capacity, zoning behavior, and indoor air delivery in one coordinated system.
Key Features
- Multi-zone inverter outdoor unit: One KUMXB241A outdoor unit modulates capacity to serve 2 connected zones without on/off cycling.
- Wall-mounted zone distribution: 2Ć KNUAB121A 12,000 Btu/h wall-mounted indoor units deliver direct air delivery to each room with independent fan and vane control.
- Matched seasonal efficiency ratings: Combination performance is 21.5 SEER2 for cooling and 9.6 HSPF2 for heating for this indoor-unit match.
- R32 refrigerant with EEV metering: Electronic expansion valves manage refrigerant flow to active zones for stable superheat and load tracking.
- Built-in Wi-Fi zone control: Indoor units include LG ThinQ connectivity plus timer, group control, and auto restart functions for daily scheduling.
- Sound and airflow management: Indoor fan airflow ranges from 177 to 282 CFM by zone size, with indoor sound levels as low as 29 dB(A).
- Low-ambient operating range: Outdoor operation supports cooling down to 14Ā°F and heating down to -4Ā°F for extended seasonal use.
