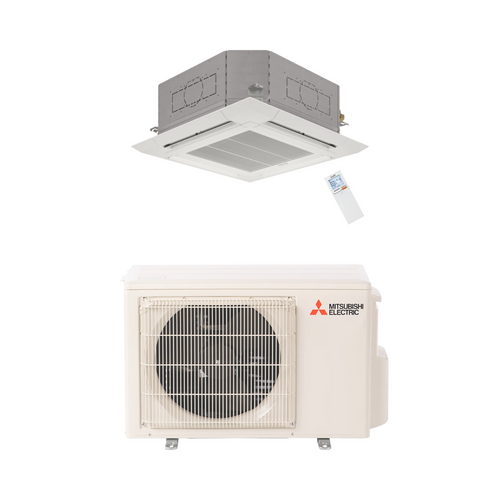

Mitsubishi Electric 12,000 BTU 24.8 SEER2 4 Way Ceiling Cassette Heat Pump Mini Split System R454B Refrigerant P Series | PZ-PLA12

Mitsubishi Electric

5 Star RatingLeave a review

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
PUZ-AK12NL-PLA-AE12NL
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives
Mitsubishi Electric 12,000 BTU 24.8 SEER2 4 Way Ceiling Cassette Heat Pump Mini Split System R454B Refrigerant P Series, model PZ-PLA12
Condition:
New
Width:
34.30 (in)
Height:
24.81 (in)
Depth:
11.81 (in)

Questions about Mitsubishi Electric 12,000 BTU 24.8 SEER2 4 Way Ceiling Cassette Heat Pump Mini Split System R454B Refrigerant P Series | PZ-PLA12?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$7,346.15
15 in stock • Ships in 1-2 Business Days
Overview

Mitsubishi Electric 12,000 BTU 24.8 SEER2 4 Way Ceiling Cassette Heat Pump Mini Split System R454B Refrigerant P Series | PZ-PLA12

Mitsubishi Electric 12,000 BTU 24.8 SEER2 4 Way Ceiling Cassette Heat Pump Mini Split System R454B Refrigerant P Series, model PZ-PLA12
Product details

Description

Replaces Discontinued Models

Replacement matches are based on unit type, capacity and features. Verify line set, electrical supply and controls before ordering. See the discontinued Mitsubishi model cross-reference for details and original manuals.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Mitsubishi Electric
Width:
34.30 (in)
Height:
24.81 (in)
Depth:
11.81 (in)
Weight:
145.00 LBS
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Warning:
Yes
Cooling Capacity (BTU):
12,000
Capacity (Tons):
1
Zones:
1
Mount Type:
Ceiling Recessed
System Type:
Heat Pump
SEER2:
20+ SEER2
EER2:
13+ EER2
HSPF2:
10+ HSPF2
Cold Climate:
No
Minimum Heating Temp (°F):
-4
Refrigerant Type:
R-454B
Electrical Phase:
1-Phase
Wi-Fi Control:
Optional Kit
Energy Star Listed:
Yes
Sound Level Indoor (dB):
26
Sound Level Outdoor (dB):
44
Line Set Size:
1/4 in x 1/2 in
Voltage / Phase:
208/230V 1-Phase
Outdoor Unit PUZ-AK12NL - Nominal Capacity (Tons):
1
Outdoor Unit PUZ-AK12NL - Cooling Capacity (BTU/h):
12,000
Outdoor Unit PUZ-AK12NL - Heating Capacity (BTU/h):
18,000
Outdoor Unit PUZ-AK12NL - Maximum Indoor Units (Zones):
1
Outdoor Unit PUZ-AK12NL - Refrigerant:
R-454B
Outdoor Unit PUZ-AK12NL - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Outdoor Unit PUZ-AK12NL - Minimum Circuit Ampacity (MCA):
16 A
Outdoor Unit PUZ-AK12NL - Maximum Overcurrent Protection (MOP):
27 A
Outdoor Unit PUZ-AK12NL - Compressor Type:
Twin Rotary
Outdoor Unit PUZ-AK12NL - Minimum Heating Temp (F):
-4 F
Outdoor Unit PUZ-AK12NL - Sound Level (dB):
44
Outdoor Unit PUZ-AK12NL - Liquid Line Size:
1/4 in
Outdoor Unit PUZ-AK12NL - Suction Line Size:
1/2 in
Outdoor Unit PUZ-AK12NL - Unit Dimensions (W x D x H):
34.3 in x 11.81 in x 24.81 in
Outdoor Unit PUZ-AK12NL - Unit Weight:
99 lb
Outdoor Unit PUZ-AK12NL - Shipping Weight:
112 lb
Indoor Unit PLA-AE12NL - Type:
Ceiling Cassette
Indoor Unit PLA-AE12NL - Nominal Capacity (Tons):
1
Indoor Unit PLA-AE12NL - Cooling Capacity (BTU/h):
12,000
Indoor Unit PLA-AE12NL - Heating Capacity (BTU/h):
14,000
Indoor Unit PLA-AE12NL - Refrigerant:
R-454B
Indoor Unit PLA-AE12NL - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Indoor Unit PLA-AE12NL - Airflow (CFM):
370-530
Indoor Unit PLA-AE12NL - Sound Level (dB):
26-30
Indoor Unit PLA-AE12NL - Liquid Line Size:
1/4 in
Indoor Unit PLA-AE12NL - Suction Line Size:
1/2 in
Indoor Unit PLA-AE12NL - Unit Dimensions (W x D x H):
33.06 in x 33.06 in x 10.19 in
Indoor Unit PLA-AE12NL - Unit Weight:
46 lb
Indoor Unit PLA-AE12NL - Shipping Weight:
71 lb
Replaces Models:
PUZ-A12NKA7, PUZ-A12NKA7-BS, PL12AK, PLA-A12AA, PLA-A12BA, PLA-A12BA4, PLA-A12BA6, PLA-A12EA7, PLA-A12EA8, PLL12FK
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase
Frequently asked questions
How much cooling does the provide?
It is rated for 12,000 BTU of cooling.
What size is the ?
The is a 1 ton unit.
How many zones does the support?
It supports 1 zone(s).
What is the SEER2 rating of the ?
The is rated at 20+ SEER2 SEER2.
What is the HSPF2 heating efficiency of the ?
It is rated at 10+ HSPF2 HSPF2.
How cold can it be outside for the to keep heating?
It is rated to heat down to -4 °F outdoors.
What refrigerant does the use?
It uses R-454B refrigerant.
Can the be controlled over Wi-Fi?
Optional Kit.
How loud is the outdoors?
The rated outdoor sound level is 44 dB.
What power supply does the need?
It requires 208/230V 1-Phase power.
Which models does the replace?
PUZ-A12NKA7, PUZ-A12NKA7-BS, PL12AK, PLA-A12AA, PLA-A12BA, PLA-A12BA4, PLA-A12BA6, PLA-A12EA7, PLA-A12EA8, PLL12FK
What warranty comes with the PUZ-AK12NL-PLA-AE12NL?
7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase
Who makes the PUZ-AK12NL-PLA-AE12NL?
The PUZ-AK12NL-PLA-AE12NL is made by Mitsubishi Electric.
