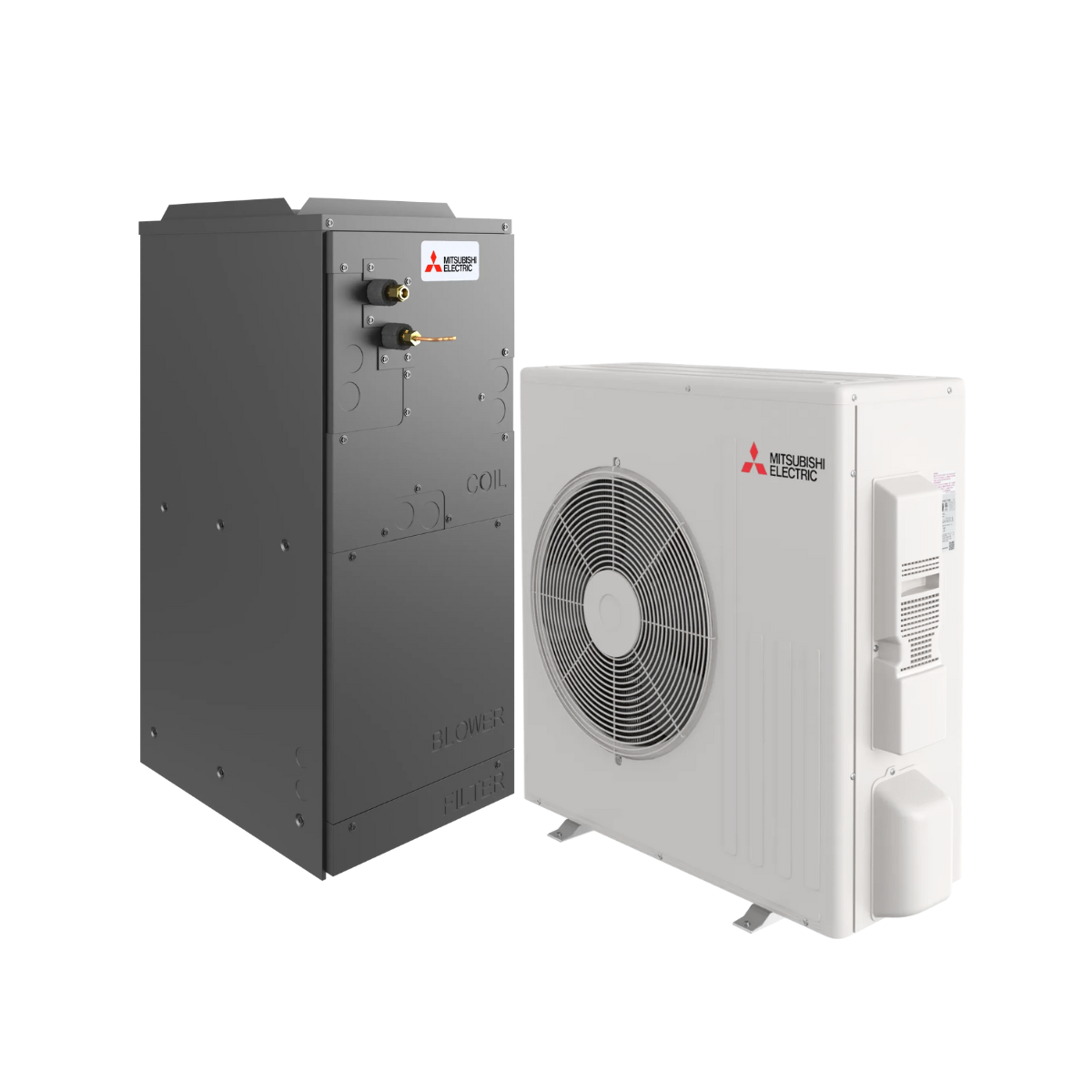

Mitsubishi Electric 2.5 Ton 30,000 BTU 18 SEE2R2 Ducted Multi Position Heat Pump Side Discharge System R454B Refrigerant P Series | SZ-PVA30

This Mitsubishi Electric intelli-AIR ducted heat pump pairing matches the PUZ-AH30NL outdoor unit with the PVA-AA30NL multi-position air handler. It’s designed for customers who want a stronger-capacity ducted system that still feels smooth and controlled. The PVA air handler supports horizontal left, horizontal right, upflow, and downflow configurations to fit common mechanical layouts. This is a single-zone, one-to-one pairing that keeps sizing and performance straightforward for buyers comparing online. The “NL” platform is part of Mitsubishi Electric’s low-GWP R-454B (A2L) equipment generation for modern compliance and forward compatibility. The air handler includes built-in control inputs for a humidifier, ERV, and auxiliary heat, which helps future-proof accessory options. If the customer wants ducted comfort that feels premium and reads clean on a product page, this pairing sells well.

Cooling performance is rated at 30,000 BTU/h, with a listed maximum cooling capacity of 30,600 BTU/h. That puts it in a sweet spot for larger single-zone ducted applications where airflow consistency matters. Moisture removal is listed at 10.5 pints per hour, which supports comfort in humid climates where “sticky air” is the real complaint. Because the system can modulate, it’s built to maintain temperature more steadily instead of swinging hot and cold. That steady control is a big reason buyers choose inverter-driven ducted systems. For shoppers comparing models, the rated and maximum capacity numbers help them self-qualify quickly. When they can see the performance story clearly, they stay engaged and move closer to purchase.

Heating is rated at 33,400 BTU/h at 47°F, with a listed maximum heating capacity of 34,400 BTU/h at 47°F. Heating at 17°F is listed at 18,200 BTU/h, giving a solid reference point for colder-weather capability. For low outdoor temperatures, maximum heating capacity at 5°F is listed at 12,800 BTU/h. The published COP at 47°F is 3.5, which supports an efficiency-forward heating story in typical heating conditions. This is the kind of data that helps buyers feel they are choosing performance, not hype. The one-to-one pairing keeps the system story clean for property managers and contractors standardizing across units. If the customer wants ducted heat that stays consistent without constant cycling, this pairing is positioned for that expectation.

Air delivery is engineered for real ductwork, not just perfect lab conditions. The PVA air handler offers selectable external static pressures of 0.30, 0.50, or 0.80 in. w.g., helping it fit a wide range of duct designs. Airflow at cooling (dry) is listed at 613, 744, or 875 CFM depending on fan setting. It uses an ECM fan motor designed for efficient airflow control and smoother ramping. Indoor sound pressure levels at cooling are listed at 34, 40, or 44 dB(A), supporting a quieter ducted experience when applied correctly. The cabinet uses a blow-through positive-pressure design with 1-inch R4.2 fiberglass-free insulation. Cabinet air leakage is listed at less than 2% at 1.0 in. w.g., helping preserve delivered comfort through the duct system.

Efficiency and operating cost are long-term levers, and this pairing posts clear published ratings. SEER2 is listed at 18.0, HSPF2 is listed at 8.5, and EER2 is listed at 9.9. Those ratings help buyers compare real-world value across brands and sizes. The cabinet uses corrosion-resistant Black ZAM material to support durability in humid and coastal mechanical environments. Power is listed for 208/230V, single-phase, 60 Hz, which is common and widely supported. Recommended outdoor fuse/breaker size is listed at 25 A, which helps pros plan electrical scope. If the buyer wants a ducted system with strong output, clean specs, and a modern A2L-ready platform, this one closes confidently.

Key Features

• Matched ducted heat pump pairing: PUZ-AH30NL outdoor unit paired one-to-one with PVA-AA30NL multi-position air handler for predictable selection.

• Rated cooling capacity: 30,000 BTU/h rated cooling with 30,600 BTU/h maximum cooling capacity for larger ducted single-zone needs.

• Humidity support: 10.5 pints per hour moisture removal listed for better comfort in humid conditions.

• Rated heating capacity: 33,400 BTU/h rated at 47°F with 34,400 BTU/h maximum at 47°F and 18,200 BTU/h listed at 17°F.

• Low-temperature heating reference: 12,800 BTU/h maximum heating capacity listed at 5°F to support cold-weather planning.

• Published efficiency ratings: 18.0 SEER2, 8.5 HSPF2, 9.9 EER2, and 3.5 COP at 47°F for clear comparison shopping.

• Duct and airflow flexibility: Selectable 0.30/0.50/0.80 in. w.g. external static pressure with airflow listed at 613/744/875 CFM (cooling, dry).
