Mitsubishi Electric 3 Ton 36,000 BTU Multi-zone Ductless Mini Split Hyper Heat Pump Condenser R454B Refrigerant | MXZ-SM36NLHZ

Overview

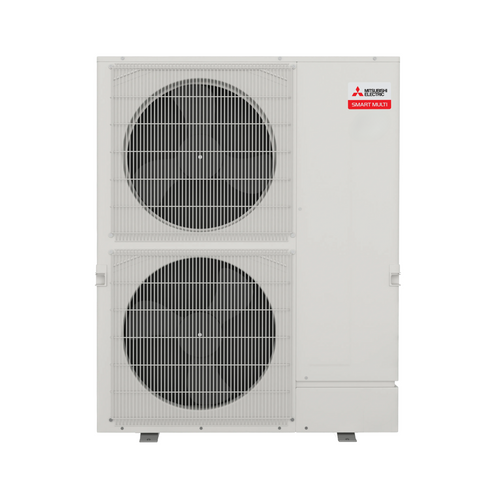

The Mitsubishi Electric MXZ-SM36NLHZ is a 36,000 BTU/H multi-zone heat pump outdoor unit designed to condition multiple rooms through connected indoor units. It operates on 208/230V, single-phase power with a guaranteed voltage range of 198–253V and is factory charged with R454B refrigerant (6 lb 10 oz). Cooling is rated at 36,000 BTU/H at 95°F outdoor conditions, supporting comfort cooling applications. Heating is rated up to 42,000 BTU/H at 47°F and is designed to deliver heat in outdoor temperatures down to -13°F. This outdoor unit can connect up to 11 indoor units in a direct connection layout, or up to 4 indoor units when a branch box is used. Key physical specs include a 41.34 in W × 13.00 in D × 52.69 in H cabinet and a 283 lb unit weight.

Performance

The system modulates output to match load, with cooling capacity ranging from 13,000 to 36,000 BTU/H and heating capacity ranging from 12,600 to 42,000 BTU/H at 47°F. At 17°F outdoor conditions, rated heating capacity ranges from 26,600 to 32,600 BTU/H depending on the connected indoor configuration, with maximum heating capacity listed at 42,000 BTU/H at both 5°F and -13°F. Efficiency varies by configuration, with SEER2 values from 17.70 to 23.00 and HSPF2 (IV) values from 10.50 to 12.00; EER2 ranges from 10.90 to 14.50. The outdoor unit uses a twin rotary inverter-driven compressor and reverse-cycle defrost to maintain heating operation in low ambient conditions. Coil protection includes Blue Fin heat exchanger coating, and the outdoor fan section is specified at 200 W + 200 W motor output. Refrigerant piping connections are 3/8 in liquid and 5/8 in gas with total piping length capability up to 492 ft.

Smart Features

MXZ-SM36NLHZ is built around multi-zone control, enabling room-by-room zoning through compatible Mitsubishi Electric indoor units. It is specified as compatible with M- and P-Series and CITY MULTI indoor units, with a branch box required for certain M- and P-Series connections. Control and system communication are supported through Mitsubishi control wiring architecture, including provisions for centralized control connections. Multi-zone layouts allow the system to prioritize occupied spaces and reduce unnecessary operation in unused zones, which can improve comfort consistency in multi-room applications. Because performance and efficiency depend on indoor unit selection (non-ducted, mixed, or ducted), the system supports flexible configuration to fit different room types and installation constraints. Indoor unit quantity, connected capacity, and optional branch box selection should be matched to the project’s zoning goals and total connected load limits.

Comfort & Noise

The inverter-driven compressor is designed to hold temperature set points with precise capacity control rather than frequent start/stop cycling. Sound pressure levels are specified at 49 dB(A) in cooling and 53 dB(A) in heating at rated test conditions, supporting installations where outdoor sound matters. A built-in base pan heater helps maintain winter operation and supports stable defrost performance in cold climates. The system uses reverse-cycle defrost and is designed for outdoor heating intake air temperatures from 70°F down to -13°F. A 1°F thermal differential specification supports tighter temperature control when paired with compatible indoor zoning. Outdoor operating range for cooling intake air is specified from 23°F to 115°F, expanding seasonal flexibility.

Use Case Fit

This outdoor unit is intended for comfort cooling and heat pump heating in residential and light commercial multi-zone applications. It supports both non-ducted indoor options (such as wall-mounted or ceiling cassette styles) and ducted or mixed configurations where concealed distribution is preferred. For projects that need multiple zones from one outdoor unit, the ability to connect up to 11 indoor units (or up to 4 via branch box) supports multi-room layouts and multi-family unit zoning. Electrical requirements include 208/230V power with recommended breaker sizing of 40A when no branch box is powered by the outdoor unit, or 45A when the outdoor unit powers a branch box. The specified SCCR of 5 kA and inverter power factor performance support typical service panel planning for modern variable-speed equipment. These characteristics make it a fit for new installs and replacement projects where a multi-zone outdoor platform is required.

Value & Reliability

Reliability features include compressor thermal protection, compressor overcurrent detection, fan motor overheating and voltage protection, and high pressure protection. The heat exchanger and base panel include seacoast protection rated for 2,000 hours in ASTM B117 testing, supporting coastal and corrosive environments where applicable. Blue Fin coating on the heat exchanger further supports corrosion resistance and long-term performance stability. Factory specifications list a 6 lb 10 oz pre-charge of R454B, helping streamline system charging for standard line lengths before any additional field charge is required. The cabinet and component selections are specified to support low-ambient heating operation with a built-in base pan heater and reverse-cycle defrost. Together, these elements support a serviceable platform for contractors and a predictable long-term asset for homeowners and property managers.

Summary Wrap-Up

The Mitsubishi Electric MXZ-SM36NLHZ provides a 36,000 BTU/H multi-zone heat pump outdoor foundation that can be configured for non-ducted, mixed, or ducted indoor applications. With rated heating up to 42,000 BTU/H at 47°F and operation down to -13°F, it targets cold-climate performance needs while still supporting cooling operation up to 115°F outdoor intake air. Efficiency performance reaches up to 23.00 SEER2 and 12.00 HSPF2 (IV), depending on the indoor configuration selected for the project. Technical highlights such as the inverter twin rotary compressor, Blue Fin coil coating, seacoast protection, and built-in base pan heater support durable operation across seasons. For wholesale buyers, it offers a flexible multi-zone platform with broad indoor compatibility and clear electrical and piping specifications for planning. For D2C buyers, it supports multi-room comfort from a single outdoor unit with zoning flexibility that can be tailored to the home’s layout.

Key Features

• 36,000 BTU/H rated cooling: Provides rated cooling capacity at 95°F outdoor conditions to support multi-room comfort cooling.
• 42,000 BTU/H rated heating at 47°F: Delivers heat pump heating capacity for cold-weather operation with rated performance at standard heating conditions.
• Heating operation to -13°F: Supports low-ambient heating intake air temperatures down to -13°F for cold-climate applications.
• Inverter twin rotary compressor: Modulates capacity to match load and maintain tighter temperature control across changing conditions.
• R454B factory refrigerant charge: Ships with 6 lb 10 oz of R454B refrigerant to support standard installation scenarios before any additional field charge.
• Multi-zone indoor connectivity: Connects up to 11 indoor units without a branch box or up to 4 indoor units with a branch box for zoning flexibility.
• Blue Fin and seacoast coil protection: Specifies Blue Fin heat exchanger coating and seacoast protection rated for 2,000 hours in ASTM B117 testing.
