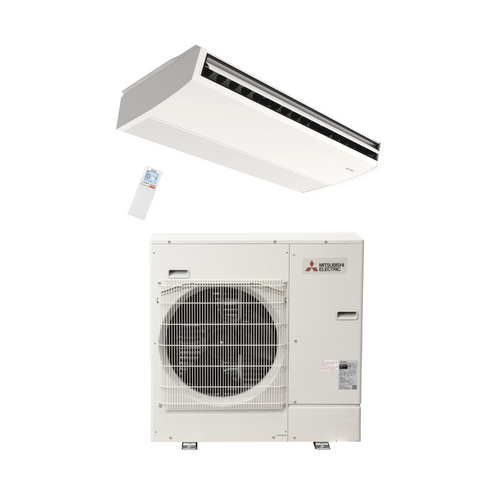

Name: Mitsubishi Electric 30,000 BTU 18.7 SEER2 Ceiling Suspended Ductless Mini Split Heat Pump y System R454B Refrigerant P Series | PZ-PAC30
Brand: Mitsubishi Electric
SKU: PUZ-AH30NL-PCA-AK30NL
Price: 7286.01 USD
Availability: InStock

Mitsubishi Electric 30,000 BTU 18.7 SEER2 Ceiling Suspended Ductless Mini Split Heat Pump y System R454B Refrigerant P Series | PZ-PAC30

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Mitsubishi Electric

Width:

50.38 (in)

Height:

9.06 (in)

Depth:

26.75 (in)

Weight:

226.00 LBS

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Prop 65 Warning:

Yes

Cooling Capacity (BTU):

30,000

Capacity (Tons):

2.5

Zones:

Mount Type:

Ceiling Suspended

System Type:

Heat Pump

SEER2:

18 SEER2

EER2:

9 EER2

HSPF2:

9 HSPF2

Cold Climate:

Minimum Heating Temp (°F):

-4

Refrigerant Type:

R-454B

Electrical Phase:

1-Phase

Wi-Fi Control:

Optional Kit

Energy Star Listed:

Sound Level Indoor (dB):

Sound Level Outdoor (dB):

Line Set Size:

3/8 in x 5/8 in

Voltage / Phase:

208/230V 1-Phase

Outdoor Unit PUZ-AH30NL - Nominal Capacity (Tons):

2.5

Outdoor Unit PUZ-AH30NL - Cooling Capacity (BTU/h):

28,200

Outdoor Unit PUZ-AH30NL - Heating Capacity (BTU/h):

34,000

Outdoor Unit PUZ-AH30NL - Maximum Indoor Units (Zones):

Outdoor Unit PUZ-AH30NL - Refrigerant:

R-454B

Outdoor Unit PUZ-AH30NL - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Outdoor Unit PUZ-AH30NL - Minimum Circuit Ampacity (MCA):

22 A

Outdoor Unit PUZ-AH30NL - Maximum Overcurrent Protection (MOP):

37 A

Outdoor Unit PUZ-AH30NL - Compressor Type:

Twin Rotary

Outdoor Unit PUZ-AH30NL - Minimum Heating Temp (F):

-4 F

Outdoor Unit PUZ-AH30NL - Sound Level (dB):

Outdoor Unit PUZ-AH30NL - Liquid Line Size:

3/8 in

Outdoor Unit PUZ-AH30NL - Suction Line Size:

5/8 in

Outdoor Unit PUZ-AH30NL - Unit Dimensions (W x D x H):

37.41 in x 14 in x 37.13 in

Outdoor Unit PUZ-AH30NL - Unit Weight:

155 lb

Outdoor Unit PUZ-AH30NL - Shipping Weight:

179 lb

Indoor Unit PCA-AK30NL - Type:

Ceiling Suspended

Indoor Unit PCA-AK30NL - Nominal Capacity (Tons):

2.5

Indoor Unit PCA-AK30NL - Cooling Capacity (BTU/h):

28,200

Indoor Unit PCA-AK30NL - Heating Capacity (BTU/h):

34,000

Indoor Unit PCA-AK30NL - Refrigerant:

R-454B

Indoor Unit PCA-AK30NL - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Indoor Unit PCA-AK30NL - Airflow (CFM):

530-670

Indoor Unit PCA-AK30NL - Sound Level (dB):

35-41

Indoor Unit PCA-AK30NL - Liquid Line Size:

3/8 in

Indoor Unit PCA-AK30NL - Suction Line Size:

5/8 in

Indoor Unit PCA-AK30NL - Unit Dimensions (W x D x H):

50.38 in x 26.75 in x 9.06 in

Indoor Unit PCA-AK30NL - Unit Weight:

71 lb

Indoor Unit PCA-AK30NL - Shipping Weight:

82 lb

Replaces Models:

PUGH30AKB, PUGH30AYB, PUGH30BKB, PUGH30CKB, PUGH30CKC, PUGH30CKE, PUH-30G6, PUH30EK, PUH30EK1, PUH30EK2, PUZ-A30NHA, PUZ-A30NHA2, PUZ-A30NHA3, PUZ-A30NHA4, PUZ-A30NHA6, PUZ-A30NHA7, PUZ-A30NHA7-BS, PC30BK, PC30EK, PC30EK1, PC30GK, PCA-A30GA

Replaces Models:

PCA-A30KA, PCA-A30KA4, PCA-A30KA6, PCA-A30KA7, PCA-A30KA8, PCH30BK, PCH30EK, PCH30EK1, PCH30GK

Warranty Information

7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
