Description
Product Summary

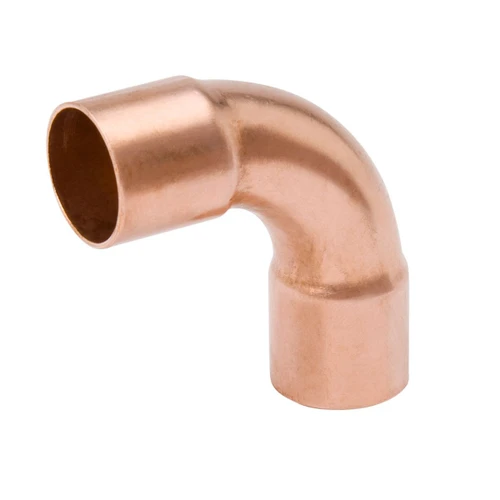

The Mueller CFW02747 is a 1-1/8-inch OD 90-degree long-radius copper elbow for brazing refrigerant line sets and field piping on split systems and heat pumps.
OD sizing matches ACR copper tubing used on HVAC refrigerant lines. Both cup ends accept tube for a clean brazed joint.
Key Features
- ACR OD sizing: matches 1-1/8-inch OD refrigerant tubing.
- Wrot copper construction: brazes cleanly with standard HVAC alloys.
- Line set routing: makes clean turns on suction and liquid lines.
- Connection: C x C ends.
Specifications
| Brand | Mueller |
|---|---|
| Model | CFW02747 |
| Manufacturer Part Number | W 02747 |
| Fitting Type | 90-Degree Long-Radius Copper Elbow |
| Tube Size | 1-1/8 in OD |
| Connection | C x C |
| Material | Wrot copper |
| Angle | 90° |
| Radius | Long radius |
Ideal Applications
- Refrigerant line set installation and repair
- Split system and heat pump change-outs
- Mini split and air handler field piping
Frequently Asked Questions
What tube size does it fit?
It fits 1-1/8-inch OD copper tubing.
What does C x C mean?
C (cup) ends accept tubing on both sides.
Can it be used on R-32 and R-454B systems?
Copper ACR fittings are commonly used on these systems; follow the equipment manufacturer brazing and pressure-test instructions.
