Olmo Sierra 9,000 BTU Mini Split Heat Pump Outdoor Unit R-32 115V | OS-SR09-115VO

Olmo

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
OS-SR09-115VO
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives

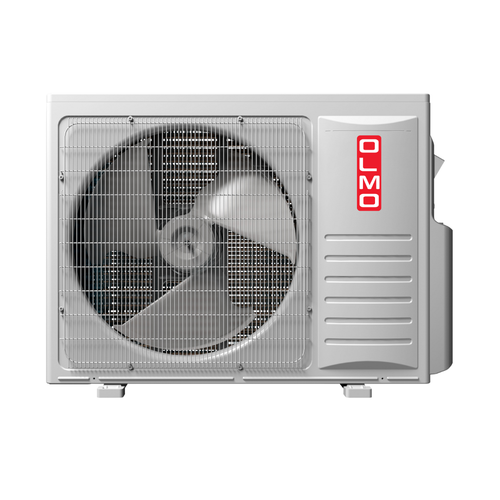

Olmo Sierra 9,000 BTU Mini Split Heat Pump Outdoor Unit R-32 115V, model OS-SR09-115VO
Condition:
New

Questions about Olmo Sierra 9,000 BTU Mini Split Heat Pump Outdoor Unit R-32 115V | OS-SR09-115VO?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Avaliable

$1,582.22
10 in stock • Ships in 3-5 Business Days

Description

The Olmo OS-SR09-115VO is a 9,000 BTU single-zone inverter heat pump condenser sold on its own.

Specifications

  • Model: OS-SR09-115VO
  • Cooling Capacity, rated (min~max) BTU/h: 9,000 (3,600~10,000)
  • Heating Capacity, rated (min~max) BTU/h: 9,500 (3,600~10,000)
  • COP @ 47°F: 4.1
  • HSPF2 (Region IV / V): 9 / 7
  • Refrigerant Piping (Liquid/Gas): 1/4"/3/8"
  • Max Line Length (ft): 65.6
  • Max Height Difference (ft): 49.2
  • Refrigerant Pre-Charge: 24.6 ft of line
  • Minimum Circuit Ampacity (A): 14.6
  • Max Fuse / Breaker (A): 25
  • Outdoor Sound Level (dB(A)): 53
  • Cooling Operating Range (°F outdoor): 5~118
  • Heating Operating Range (°F outdoor): -5~75
  • Unit Dimensions (W x H x D): 28-1/8 in x 21-1/4 in x 9-1/2 in
  • Net / Shipping Weight: 52.9 lb / 61.7 lb

Compatibility

Use only with Olmo indoor units approved for this outdoor unit in the manufacturer's match-up charts. Indoor units, line sets, communication cable and installation materials are sold separately. Installation requires a licensed HVAC technician.

White Paper

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Olmo
Weight:
61.70 LBS
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Category:
Mini Split Outdoor Unit
Series:
Olmo Sierra
System Type:
Heat Pump
Capacity (Tons):
1
Cooling Capacity (BTU):
9,000
Refrigerant Type:
R-32
Compressor Type:
Inverter
Voltage / Phase:
115V 1-Phase
Electrical Phase:
1-Phase
HSPF2:
9 HSPF2
Cooling Capacity, rated (min~max) BTU/h:
9,000 (3,600~10,000)
Heating Capacity, rated (min~max) BTU/h:
9,500 (3,600~10,000)
COP @ 47°F:
4.1
HSPF2 (Region IV / V):
9 / 7
Refrigerant Piping (Liquid/Gas):
1/4"/3/8"
Max Line Length (ft):
65.6
Max Height Difference (ft):
49.2
Refrigerant Pre-Charge:
24.6 ft of line
Minimum Circuit Ampacity (A):
14.6
Max Fuse / Breaker (A):
25
Outdoor Sound Level (dB(A)):
53
Cooling Operating Range (°F outdoor):
5~118
Heating Operating Range (°F outdoor):
-5~75
Unit Dimensions (W x H x D):
28-1/8 in x 21-1/4 in x 9-1/2 in
Net / Shipping Weight:
52.9 lb / 61.7 lb
Unit Weight:
52.9 lb
Ship Weight (lbs):
61.7
Liquid Line Size | OD - Outside Diameter:
1
Suction Line Size | OD - Outside Diameter:
4"
Heating Capacity (BTU):
9,500
Sound Level Outdoor (dB):
53
Minimum Circuit Ampacity (MCA):
14.6
Maximum Overcurrent Protection (MOP):
25
Breaker Size (Amps):
25
Cold Climate:
No
Minimum Heating Temp (°F):
-5
Connection Type:
Flare Fittings

Warranty Information

7 Years Compressor & 5 Years Parts

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
