Description

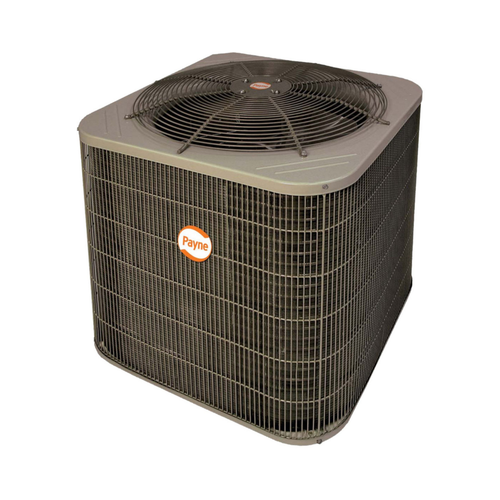

The Payne by Carrier 2 Ton 18 SEER2 Air Conditioner Condenser with Two-Stage Compressor (PA8TAN52400W) is a high-efficiency outdoor cooling unit designed to provide dependable residential comfort with enhanced temperature control. With a nominal 2 ton / 24,000 BTU cooling capacity, this condenser is designed for properly matched residential split-system applications.
Featuring a two-stage compressor, the PA8TAN52400W can operate at different capacity levels based on cooling demand, helping provide more consistent comfort and efficient operation compared with conventional single-stage equipment. When properly matched with compatible indoor equipment, the system can achieve up to 18 SEER2 efficiency. It is designed for the latest generation of residential HVAC installations using R-454B refrigerant.
Key Features
- 2 Ton Cooling Capacity – Provides approximately 24,000 BTU of nominal cooling capacity
- Up to 18 SEER2 Efficiency – Designed for high-efficiency residential cooling when properly matched
- Two-Stage Compressor – Adjusts cooling output to better match changing comfort demands
- Enhanced Temperature Control – Two-stage operation helps maintain more consistent indoor temperatures
- R-454B Refrigerant System – Designed for next-generation lower-GWP A2L refrigerant
- Split-System Design – Pairs with compatible indoor HVAC equipment for complete cooling operation
- Energy-Efficient Performance – Lower-stage operation can reduce unnecessary energy use during moderate cooling demand
- Durable Outdoor Construction – Engineered for dependable residential HVAC operation
Product Specifications
- Brand: Payne by Carrier
- Model: PA8TAN52400W
- Product Type: Air Conditioner Condenser
- Nominal Capacity: 2 Ton
- Nominal Cooling Capacity: 24,000 BTU
- Cooling Efficiency: Up to 18 SEER2
- Compressor Type: Two-Stage
- Refrigerant: R-454B
- Refrigerant Classification: A2L
- System Configuration: Split System
- Installation Location: Outdoor
- Primary Function: Cooling
- Application: Residential HVAC
Benefits
- Delivers high-efficiency cooling for properly sized residential applications
- Two-stage compressor adapts operation to changing cooling demands
- Helps maintain more consistent indoor comfort than basic single-stage operation
- Can reduce full-capacity operation during milder cooling conditions
- Uses modern lower-GWP R-454B refrigerant technology
- Provides up to 18 SEER2 efficiency with an approved indoor equipment match
- Suitable for new HVAC installations and compatible system replacements
- Designed for dependable long-term residential cooling
Compatibility & Installation
The Payne PA8TAN52400W is an outdoor air conditioner condenser and must be paired with compatible indoor equipment, such as an approved air handler/fan coil or evaporator coil and furnace combination. Final capacity and SEER2 performance depend on the complete matched system.
Installation considerations:
- Verify that 2-ton capacity is appropriate through a professional cooling-load calculation
- Match with approved indoor equipment for the desired SEER2 performance
- Confirm controls are compatible with two-stage operation
- Verify refrigerant line-set requirements
- Confirm electrical requirements before installation
- Follow all R-454B/A2L refrigerant safety requirements
- Maintain manufacturer-required airflow and service clearances
- Follow Payne installation instructions and applicable local codes
- Installation should be performed by a qualified HVAC professional
Frequently Asked Questions
What capacity is the Payne PA8TAN52400W?
It is a 2-ton air conditioner condenser, equivalent to approximately 24,000 BTU nominal cooling capacity.
What is the efficiency rating?
The PA8TAN52400W can provide up to 18 SEER2 efficiency when paired with qualifying matched indoor equipment.
Does this condenser have a single-stage or two-stage compressor?
It features a two-stage compressor, allowing the system to operate at different capacity levels based on cooling demand.
What refrigerant does the PA8TAN52400W use?
It is designed for R-454B, a lower-GWP A2L refrigerant used in newer HVAC systems.
Is this a complete air conditioning system?
No. The PA8TAN52400W is the outdoor condenser only. Compatible indoor equipment and other required installation components are needed to create a complete system.
Does this unit provide heating?
No. This is a straight-cool air conditioner condenser, not a heat pump, so it does not provide heat-pump heating.
