Description

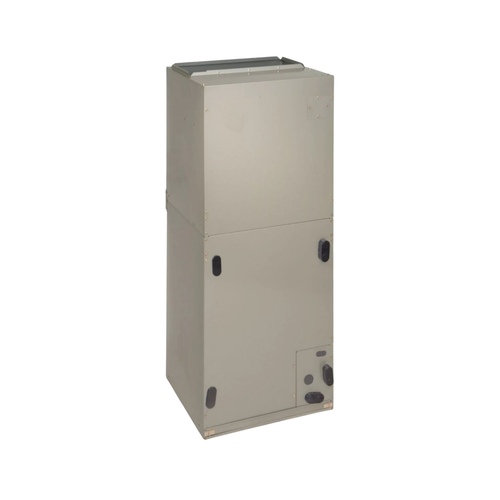

The Payne by Carrier 5 Ton Multi Position Air Handler with InteliSense Technology and R-454B Refrigerant (FT5ANXC60L00) is a high-capacity indoor air handler designed to deliver reliable airflow, enhanced comfort control, and efficient performance for residential split-system air conditioning and heat pump applications. Built for 5 ton systems, this air handler features InteliSense Technology, advanced airflow management, and multi-position installation capability to provide flexible installation options for a variety of residential configurations.
Designed for compatibility with modern R-454B refrigerant systems, the FT5ANXC60L00 supports next-generation A2L refrigerant requirements while providing dependable indoor air distribution. Its multi-position design allows installation flexibility, making it suitable for replacement applications and new HVAC system installations.
Key Features
- 5 Ton Capacity – Designed to support residential HVAC systems requiring approximately 60,000 BTU capacity
- InteliSense Technology – Provides advanced system communication and intelligent performance monitoring capabilities
- Multi-Position Installation – Supports flexible installation configurations including upflow, downflow, and horizontal applications
- R-454B Refrigerant Compatible – Designed for modern lower-GWP A2L refrigerant systems
- Efficient Air Distribution – Helps deliver consistent airflow and indoor comfort
- Advanced Comfort Control – Designed to support improved system operation and performance
- Split-System Compatible – Works with compatible Payne by Carrier outdoor air conditioners and heat pump systems
- Durable Construction – Built for reliable long-term residential HVAC operation
Product Specifications
- Brand: Payne
- Model: FT5ANXC60L00
- Product Type: Air Handler
- Nominal Capacity: 5 Ton
- Nominal Capacity Range: Approximately 60,000 BTU
- Technology: InteliSense Technology
- Installation Type: Multi-Position
- Refrigerant Compatibility: R-454B
Benefits
- Provides dependable airflow for high-capacity residential HVAC systems
- Supports flexible installation in multiple orientations
- Compatible with modern R-454B refrigerant equipment
- Helps maintain consistent indoor comfort levels
- Designed for improved system communication and monitoring with InteliSense Technology
- Supports efficient operation when matched with compatible outdoor equipment
- Suitable for new construction and replacement HVAC applications
- Helps simplify system integration with advanced indoor airflow management
Compatibility & Installation
The Payne FT5ANXC60L00 is designed to operate as the indoor air handling component of a compatible split-system HVAC installation. Proper matching with the outdoor condenser or heat pump unit is required to achieve expected capacity, efficiency, and performance.
Installation considerations:
- Verify compatibility with the selected outdoor unit
- Confirm 5-ton capacity matches the home's heating and cooling requirements
- Ensure proper ductwork sizing and airflow configuration
- Verify electrical requirements before installation
- Follow R-454B/A2L refrigerant safety guidelines
- Configure installation position correctly for upflow, downflow, or horizontal applications
- Follow manufacturer installation instructions and local HVAC codes
- Installation should be completed by a qualified HVAC professional
Frequently Asked Questions
What size system is the Payne FT5ANXC60L00 designed for?
It is a 5-ton air handler designed for systems requiring approximately 60,000 BTU capacity.
What refrigerant is this air handler compatible with?
The FT5ANXC60L00 is designed for use with R-454B refrigerant systems.
What is InteliSense Technology?
InteliSense Technology provides advanced system communication and monitoring features designed to support improved HVAC performance and control.
Can this air handler be installed in different positions?
Yes. The FT5ANXC60L00 supports multi-position installation, allowing flexible placement options.
Is this a complete HVAC system?
No. This is an indoor air handler only and requires a compatible outdoor condenser or heat pump unit.
