Description

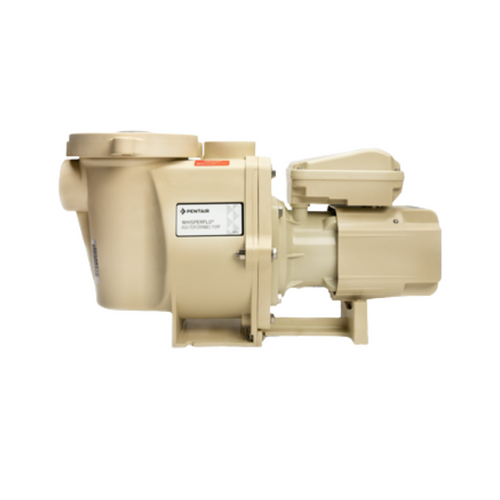

Clean, clear water starts with good circulation, and the Pentair WhisperFlo 011643 is designed to deliver it. It features a 2 HP motor (2.60 total HP) and 2 in connections and is suited to in-ground pools.
WhisperFlo is Pentair's heavy-duty high-performance pump with an oversized strainer basket and volute, Funnel-Flo diffusers, Cam & Ramp see-through lid, 2 in NPT ports and a commercial-duty 56-frame motor. In this guide we break down how pool pumps work, how to size one with simple turnover math, what to know about energy rules and electrical requirements, and how to keep your pump running quietly for years.
Quick Answer: What Is the Pentair WhisperFlo 011643?
The Pentair WhisperFlo 011643 is a single speed pool pump rated at 2 HP running on 208-230/460V 3-Phase with 2 in plumbing connections. It is a straightforward, fixed-speed design that is simple to install and operate.
Pentair WhisperFlo 011643 Specifications
| Brand | Pentair |
|---|---|
| Equipment Type | Single Speed Pool Pump |
| Model Number | 011643 |
| Product Line | WhisperFlo |
| Voltage / Phase | 208-230/460V 3-Phase |
| Amperage | 7.5-7.2/3.6 A at 208-230/460V |
| Horsepower (HP) | 2 |
| Total Horsepower (THP) | 2.60 |
| Motor Speed | Single Speed |
| Connection Size (in) | 2 |
| Pool Type | In-Ground |
| Certifications | UL, NSF/ANSI 50 |
Key Features of the Pentair WhisperFlo 011643
- Three-phase super-duty motor (208-230/460V)
- Oversized strainer basket and volute
- Cam & Ramp see-through lid
- Self-priming, high flow
- Funnel-Flo diffuser for efficient hydraulics
- 2 in NPT suction and discharge ports
- Commercial-duty 56-frame threaded-shaft motor
- UL 1081 and NSF/ANSI 50 evaluated
How a Pool Pump Works
A pool pump pulls water from the skimmers and main drain, passes it through a strainer basket that catches leaves and debris, and then pushes it through the filter, heater and sanitizer before returning it to the pool. Inside, an electric motor spins an impeller; the faster it spins, the more water it moves and the more pressure it can overcome.
That pressure is called total dynamic head (TDH). Every foot of pipe, every elbow, the filter and the heater add resistance. A typical residential pool plumbing system falls somewhere around 40 to 60 feet of head, which is why a pump's real-world flow is always lower than its open-flow maximum. Matching the pump to your plumbing, not just your pool size, is the key to quiet, efficient circulation.
Single- and two-speed pumps run at fixed speeds. They are simple and inexpensive up front, but they use more energy than variable-speed pumps for daily filtration. Check local rules before replacing an in-ground filtration pump with a fixed-speed model.
How to Size a Pool Pump
Pool pumps are sized by flow, measured in gallons per minute (GPM). The goal is to circulate, or turn over, the full volume of the pool in a set time. Many residential pools target one turnover every 8 hours; commercial pools often require 6 hours or less by code. The formula is simple: required GPM = pool gallons / (turnover hours x 60).
| Pool volume | 8-hour turnover | 6-hour turnover |
|---|---|---|
| 10,000 gal | 21 GPM | 28 GPM |
| 15,000 gal | 31 GPM | 42 GPM |
| 20,000 gal | 42 GPM | 56 GPM |
| 25,000 gal | 52 GPM | 69 GPM |
| 30,000 gal | 62 GPM | 83 GPM |
| 40,000 gal | 83 GPM | 111 GPM |
To estimate pool volume, multiply length x width x average depth in feet, then multiply by 7.5 for rectangular pools (or by about 5.9 for round pools using diameter x diameter x depth).
Then check the rest of the pad: the pump's flow should not exceed the maximum flow rating of your filter, heater or salt cell, and the pipe size should match the pump ports. Oversizing a pump wastes energy and can push water through the filter too fast. If you are replacing an existing pump, matching the horsepower and port size is a good starting point, and our team can help you confirm the right fit.
Good, Better, Best: Where the Pentair WhisperFlo 011643 Fits
At HVAC365 we organize every category into a simple Good, Better, Best framework so you can compare options without wading through jargon. Within our pool pump lineup, this model sits in the Better tier: Enhanced comfort and smarter control.
The Better tier steps up efficiency and adds smarter control. It balances up-front cost with lower operating cost and more convenience, which is why property managers and owners who plan to keep their equipment for years often land here.
Not sure the Better tier is right for you? Compare it with the Good and Best options in the same category. Whatever tier you choose, the equipment is brand new and covered by the full manufacturer warranty, and our team is here to help you weigh features against budget.
Installation, Electrical and Energy Rules
Pool pumps should be installed on a level pad near the pool, below or close to water level when possible, with the correct pipe size on the suction and return sides. Electrical work must follow the manufacturer's instructions and the National Electrical Code, including GFCI protection and proper bonding. Professional installation by a licensed pool contractor or electrician is recommended. This model is rated for 208-230/460V 3-Phase and draws 7.5-7.2/3.6 A at 208-230/460V.
Since July 2021, U.S. Department of Energy efficiency standards for dedicated-purpose pool pumps have pushed most new residential in-ground filtration pumps toward variable-speed technology, and some states add their own rules. Many utilities also offer rebates for qualifying variable-speed pumps, so check with your local provider before you buy.
Maintenance Tips
- Empty the strainer basket weekly, or more often during leaf season.
- Keep the lid O-ring clean and lightly lubricated with a silicone-based lubricant to prevent air leaks.
- Watch the filter pressure gauge; rising pressure means it is time to clean the filter, which also helps the pump.
- Listen for changes. Grinding or screeching can point to worn bearings, and bubbles in the basket usually mean an air leak on the suction side.
- Keep the motor dry, shaded and clear of debris, and make sure vents are not blocked.
- In freezing climates, drain the pump and plumbing or run freeze protection before winter.
Choosing a Pump for Your Climate
In the South and Sun Belt, including Florida, Texas, Arizona and Southern California, pools often run year-round and pumps log thousands of hours a year. That is where variable-speed savings add up fastest. Heat and heavy bather loads also demand steady circulation for sanitizer to work well. In northern states, the season is shorter, but pumps still need to handle spring openings, heater operation and freeze protection. Wherever you live, a pump that is sized correctly and programmed well is one of the best ways to cut the cost of owning a pool.
What's Included and Compatibility
This listing is for the Pentair WhisperFlo 011643. Unions, fittings and automation accessories may be sold separately unless listed above.
Ideal for:
- Commercial and large residential pools with three-phase power
- Water features and spas needing steady high flow
Built for Homeowners, Contractors and Property Managers
- Homeowners: use our sizing tools and the pool math on this page, then reach out with your pool size, location and existing equipment. We will help you confirm the right model before you order.
- Contractors and installers: order in two clicks, follow every shipment with live tracking, and reorder common parts from the HVAC365 Contractor Portal. We know the labor shortage is real, so we focus on getting the right part to the job the first time.
- Property managers: manage equipment for multiple properties from one dashboard and book a strategy call with our team to standardize models, plan replacements and control maintenance costs.
Why Buy from HVAC365?
HVAC365 is your everyday source for home comfort products. Our mission is to make buying equipment simple, transparent and accessible. Instead of a wall of part numbers, you get clear specifications, honest guidance and technology-driven tools that help you choose with confidence. Compared with traditional online wholesalers, we add AI-guided product discovery, side-by-side selection tools and help coordinating service, so you are never left guessing about compatibility or installation.
- Brand-new equipment with the full manufacturer warranty
- Clear, published specifications and plain-language explanations
- Fast shipping with tracking from order to delivery
- Real people who answer questions before and after the sale
- Ask about financing options to spread the cost of larger projects
We believe great home comfort should be accessible to everyone. Our team is happy to help with large-print spec summaries, phone-based ordering, or any other accommodation that makes shopping easier for you.
Frequently Asked Questions About the Pentair WhisperFlo 011643
What size pool is the Pentair WhisperFlo 011643 for?
Use the turnover table above and your plumbing size to confirm the fit, or ask us to check it for you.
Is a variable-speed pump worth it?
For most in-ground pools, yes. Running at lower speeds for longer can cut pump energy use dramatically, many pumps qualify for utility rebates, and federal efficiency rules now favor variable-speed models for most residential filtration pumps.
What voltage does this pump use?
208-230/460V 3-Phase. Have a licensed electrician confirm your circuit and breaker size.
Can I replace my old pump with this one?
Usually, if the port size, horsepower range and voltage are compatible with your pad. Send us the model number on your current pump's label and we will confirm.
How many hours a day should I run my pool pump?
Enough to achieve at least one full turnover per day, which for most residential pools means about 8 to 12 hours at low speed with a variable-speed pump. Hot weather and heavy use may call for more.
What warranty does it have?
It carries the full manufacturer warranty; warranty terms can depend on the installer and registration..
Ready to order? Add the Pentair WhisperFlo 011643 to your cart, or contact the HVAC365 team for help confirming sizing and compatibility. We are here to make your project simple from start to finish.
