Description
Upgrade or replace your pool filter with confidence with the Pentair Triton II 140243. With 7 square feet of filter area and a maximum flow of 106 GPM, it can handle an 8-hour turnover of about 50,880 gallons.

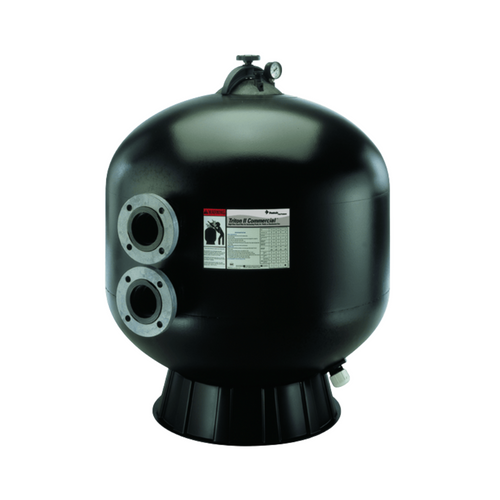

Triton is Pentair's premium fiberglass side-mount sand filter with a 36 in tank, 7.06 sq ft bed, full 2 in drain and valve sold separately; C-3 versions use 3 in bulkhead connections for commercial service. Below we explain how sand filtration works, how to size a filter to your pump and pool, and how to keep it clean.
Quick Answer: What Is the Pentair Triton II 140243?
The Pentair Triton II 140243 is a sand pool filter with 7 sq ft of filter area, a 106 GPM maximum flow rate and an 8-hour turnover capacity of about 50,880 gallons. Sand filters trap particles of about 20 to 40 microns.
Pentair Triton II 140243 Specifications
| Brand | Pentair |
|---|---|
| Equipment Type | Sand Filter |
| Model Number | 140243 |
| Product Line | Triton II |
| Filter Type | Sand |
| Filter Area (sq ft) | 7.06 |
| Flow (GPM) | 106 |
| Turnover Capacity (gal) | 50,880 |
| Connection Size (in) | 2 |
| Tank Diameter (in) | 36 |
| Valve Type | Side Mount (sold separately) |
| Shipping Weight | 75 lb |
Key Features of the Pentair Triton II 140243
- Corrosion-proof fiberglass tank
- Side-mount valve sold separately (1.5 in/2 in MPV or HiFlow)
- Full 2 in drain for fast draining
- 7.06 sq ft filter area
- 50 psi max operating pressure
- Pea gravel and sand underbed (925 lb total media)
How Pool Filters Work: Cartridge vs Sand vs D.E.
Every pool filter has the same job: catch dirt, debris and fine particles from the water the pump sends through it. The difference is the filter media.
- Cartridge filters use pleated polyester cartridges. They filter to about 10 to 20 microns, run at low pressure, and are cleaned by removing and hosing off the cartridges, so there is no backwashing and less water waste.
- Sand filters push water down through a bed of filter sand. They filter to about 20 to 40 microns and are cleaned by backwashing, which reverses flow to flush debris out to waste. They are simple and durable.
- D.E. filters use grids coated with diatomaceous earth powder and deliver the finest filtration, down to about 3 to 5 microns. They are backwashed and recharged with fresh D.E.
This model is a sand filter.
How to Size a Pool Filter
A filter must handle the full flow of your pump and still turn over the pool's volume in the target time, usually 8 hours for residential pools. Start with the pump: the filter's maximum flow rating should be equal to or greater than the pump's actual flow. Then check turnover: required GPM = pool gallons / 480 for an 8-hour turnover.
| Pool volume | Flow for 8-hour turnover | Within this filter's max flow? |
|---|---|---|
| 15,000 gal | 31 GPM | Yes |
| 20,000 gal | 42 GPM | Yes |
| 30,000 gal | 62 GPM | Yes |
| 40,000 gal | 83 GPM | Yes |
| 50,000 gal | 104 GPM | Yes |
Many pool professionals size filters with extra capacity, especially cartridge filters. More filter area means lower pressure, cleaner water and longer time between cleanings, and it works hand in hand with variable-speed pumps that run at lower flow for longer periods.
Tank diameter: 36 in. Valve: Side Mount (sold separately). Connections: 2 in.
Good, Better, Best: Where the Pentair Triton II 140243 Fits
At HVAC365 we organize every category into a simple Good, Better, Best framework so you can compare options without wading through jargon. Within our sand filter lineup, this model sits in the Best tier: Advanced comfort with future-ready tech.
The Best tier delivers top efficiency, premium controls and the most advanced features in its category. It is designed for smart homes, high-end renovations, direct-to-consumer buyers who want the best experience, and government or commercial installs that demand long-term performance.
Not sure the Best tier is right for you? Compare it with the Good and Better options in the same category. Whatever tier you choose, the equipment is brand new and covered by the full manufacturer warranty, and our team is here to help you weigh features against budget.
Installation Tips
Install the filter on a level pad after the pump and before the heater and chlorinator. Leave room above and around it to remove the lid, cartridges or grids, and to read the pressure gauge. Use the correct pipe size, support the plumbing so it does not stress the filter ports, and follow the manufacturer's pressure rating. Professional installation by a pool contractor is recommended, especially for new pads or when changing filter type.
Sand and D.E. filters need a multiport or slide valve and a place to send backwash water, which may be regulated where you live.
Maintenance and Cleaning
- Write down the pressure gauge reading when the filter is clean. When pressure rises about 8 to 10 psi above that, it is time to clean.
- Backwash until the sight glass runs clear, then rinse before returning to filter mode.
- Replace filter sand every several years, or consider glass media as an alternative.
- Inspect the lid O-ring and air relief valve, and lubricate O-rings with a silicone-based lubricant.
- Drain the filter before winter in freezing climates.
Filtration by Region
In the South and Southwest, pools run year-round and face heavy pollen, dust, leaves and algae pressure in warm water, so larger filters and regular cleaning keep water clear. In drought-prone areas such as California, Arizona and Texas, cartridge filters are popular because they do not require backwashing, saving water. In northern climates, filters work hardest at spring opening; choosing a filter with ample capacity makes that cleanup much easier.
What's Included and Compatibility
This listing is for the Pentair Triton II 140243. Valves, unions and media may be sold separately unless listed.
Ideal for:
- Pools up to 50,880 gal (8-hour turnover)
- Low-maintenance backwashable filtration
Built for Homeowners, Contractors and Property Managers
- Homeowners: use our sizing tools and the pool math on this page, then reach out with your pool size, location and existing equipment. We will help you confirm the right model before you order.
- Contractors and installers: order in two clicks, follow every shipment with live tracking, and reorder common parts from the HVAC365 Contractor Portal. We know the labor shortage is real, so we focus on getting the right part to the job the first time.
- Property managers: manage equipment for multiple properties from one dashboard and book a strategy call with our team to standardize models, plan replacements and control maintenance costs.
Frequently Asked Questions About the Pentair Triton II 140243
What size pool can the Pentair Triton II 140243 handle?
About 50,880 gallons with an 8-hour turnover at its 106 GPM maximum flow. Many owners choose extra capacity for longer cleaning intervals.
Which filter type is best?
D.E. filters trap the smallest particles, cartridge filters save water and are easy to clean, and sand filters are simple and durable. The best choice depends on your priorities and local water rules.
How often should I clean my filter?
When pressure rises about 8 to 10 psi above the clean reading. For many pools, that is every few weeks to a few months.
Will this filter work with a variable-speed pump?
Yes, as long as the pump's maximum flow does not exceed the filter's rating. Lower flow rates often improve filtration.
Can I replace a sand filter with a cartridge filter?
Yes, with plumbing changes. Cartridge filters do not use a backwash valve, so the plumbing at the pad will be different.
