Description

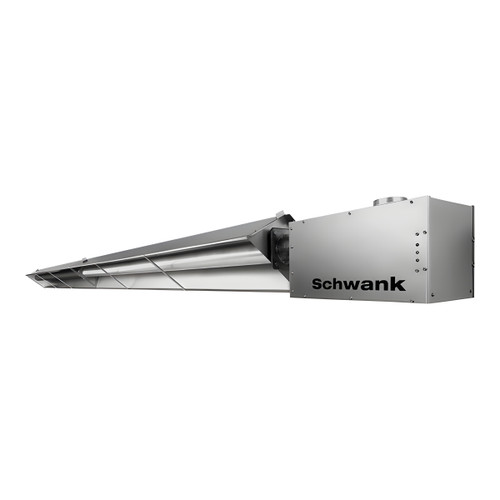

Schwank 60 FT 155,000 BTU Harsh Environment Tube Heater | duraSchwank STWS | STWS-155-60-AN
The Schwank STWS-155-60-AN is a duraSchwank STWS gas-fired, low-intensity infrared tube heater rated at 155,000 BTU/h on natural gas, with a 60 ft straight radiant tube. Instead of heating the air, an infrared tube heater sends radiant energy down to the floor, equipment and people below, much like the sun. Those surfaces warm up and release heat back into the space, so the area at working level stays comfortable even in tall buildings where warm air would otherwise collect at the ceiling, and heat recovers quickly after overhead doors open.
This is a single-stage heater that fires at its full rated input whenever the thermostat calls for heat. The burner housing is stainless steel and the tube and reflector are stainless steel. Stainless construction makes this model suited to harsh environments such as wash bays, agricultural buildings and corrosive or humid spaces.
Where It Works Best
- Warehouses, distribution centers and manufacturing plants
- Auto repair shops, garages and fire stations
- Loading docks and areas with frequent overhead door openings
- Aircraft hangars, arenas and other high-ceiling buildings
Matched Options Available on This Page
Every option below was checked against Schwank's installation manual for this model.
- Thermostat / Control: Moisture Proof Thermostat (F1092), 24 Volt Luminous Digital Thermostat, 24 Volt Luminous 5/2 Programmable Digital Thermostat, 24V Thermostat Relay (Multiple Heaters per Thermostat)
- Gas Conversion Kit: Conversion Kit STS-150/155 NG to LP
- Wireless Remote / Patio Controls: Wireless Remote Control Receiver Kit (Field Installed), Wireless Remote 4 Button Handset / Transmitter, Wireless Remote Control Keypad Transmitter, Patio Panel (up to 4 Zones) and more
- Tube & Reflector Accessories: 90° Modular Elbow Kit - JZ System, Side Reflector Extension 10" x 9 ft 8" with S-Hooks, Decorative Tuxedo Grille Kit - Black 10 ft
- Venting: Wall Vent Terminal 4" Horizontal, Vent Tee 4" x 4" x 6", 4" x 8" Vent Coupling Kit (STSp), Fresh Air Intake Vent Cap
- Hanging Hardware & Clearance Sign: Gripple Express 10 ft Suspension Cable Kit (Set of 10), #2 Lion Chain - 200 ft Roll (115 lb Work Load), #8 Jack Chain - 50 ft Box (Heater Suspension), S-Hooks 1-7/8" (Pkg of 25) and more
- Flexible Gas Connector: Flexible Gas Connector 3/4" x 24", Flexible Gas Connector 3/4" x 36"
Installation Notes
- Installation by a qualified, licensed gas technician following the Schwank installation manual and local codes.
- The heater is built for natural gas; order the matching conversion kit if the site uses a different gas.
- Maintain the clearances to combustibles printed on the heater label and post a clearance sign where vehicles or storage are nearby.
- Vent and supply combustion air exactly as the manual specifies.
