Description

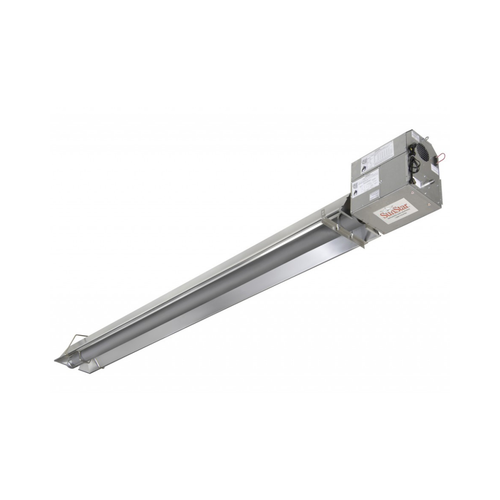

Sunstar SPS Positive Pressure Straight Tube Tough Guy Heater | SPS40-20-TG-L5
The Sunstar SPS40-20-TG-L5 is a 40,000 BTU/hr propane infrared tube heater with 20 feet of radiant emitter in a straight run. It is part of Sunstar’s SPS positive pressure straight tube Tough Guy line, built for warehouses, maintenance shops, loading docks, fire stations and other high-ceiling spaces where doors open often and heated air is lost the moment they do.
SPS and SPU heaters use a push-through (positive pressure) burner: a blower sealed inside the burner box drives combustion through the tube, so the heater runs quietly, and Sunstar’s Tube Integrity Safety System (TISS) continuously monitors the space above the reflector for overheating or a compromised tube.
Because a straight tube always runs hotter at the burner end than at the exhaust end, it works best for whole-building heat with the minimum mounting heights observed; for spot heating a work station or dock door, the SPU U-tube version of this heater is the better fit.
It has a single-stage gas valve and can be run from a line voltage or 24V thermostat, or switched on and off manually.
The Tough Guy option means every emitter tube is heat-treated aluminized steel, the construction Sunstar recommends for car washes, dairy barns, greenhouses, pools, wastewater plants and other humid or corrosive spaces.
For planning, mount it at least 10 feet above the floor when level or 9 feet when tilted 45 degrees, and keep 52 inches clear below it and 22 inches to the sides. It can be vented on its own, common vented with other heaters, or run indirect vented with building exhaust, and it can draw outside combustion air through its fresh air collar in dusty or humid buildings. Installation must be done by a licensed contractor to the manufacturer’s instructions and local codes.
Key Features
- 40,000 BTU/hr propane input
- 20' straight all-aluminized Tough Guy emitter
- Quiet push-through burner with Tube Integrity Safety System
- Direct spark ignition with 100% gas shut-off
Frequently Asked Questions
How high should the SPS40-20-TG-L5 be mounted?
Sunstar lists a minimum of 10 feet above the floor with the heater level and 9 feet at a 45-degree tilt. Mount it as high as the space allows for even coverage; going below the minimum can make the area right underneath uncomfortably hot.
What clearance does it need from combustibles?
Keep at least 52 inches below the heater and 22 inches to the sides clear of anything that can burn, including stacked materials and vehicles parked underneath. The full clearance chart, including ceiling and end distances, is in the installation manual.
Can I convert it to natural gas?
Yes. Sunstar makes a conversion kit matched to this model, offered in the gas conversion kit option above, and it must be installed by a qualified technician.
What controls can I use?
A line voltage or 24V thermostat, a 24V thermostat with a relay kit, or a simple on/off switch. One thermostat can run several heaters within its rated load, or more with relay kits.
