Description
Product Summary

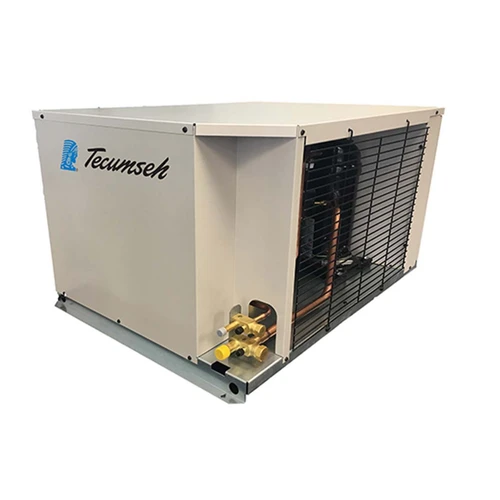

The Tecumseh 2JH4001-PF (model ASHS9532ZNAFP1) is a 4 HP medium temp outdoor condensing unit from the Tecumseh ARGUS-Large line, running on 208/230V 1-phase power.
It is designed for refrigeration contractors and equipment owners serving walk-in coolers, freezers and commercial boxes. Tecumseh lists a minimum circuit ampacity of 32.9 A and a maximum fuse of 50 A.
Approved refrigerants include R-404A, R-448A, R-449A, R-452A.
Key Features
- Outdoor ARGUS Platform: Tecumseh ARGUS-Large outdoor cabinet built for rooftop or pad installation
- Scroll Compressor: Tecumseh VS324ET-110-J7 compressor
- Multi-Refrigerant: rated for R-404A, R-448A, R-449A and R-452A
- Air-Cooled Condenser: tube-and-fin coil with 1 fan moving 4,300 CFM
- Platinum Feature Package: Tecumseh Platinum-configured unit with field kits available for low-pressure control, head-master and receiver service
- Serviceable Design: Tecumseh publishes replacement kits (contactor, fan motor, capacitors) for this item
Specifications
| Brand | Tecumseh |
|---|---|
| Item Number | 2JH4001-PF |
| Model | ASHS9532ZNAFP1 |
| Family | ARGUS-Large |
| Horsepower | 4 HP |
| Application | CBP (commercial back pressure, medium temp) |
| Compressor | VS324ET-110-J7 Scroll |
| Refrigerants | R-404A, R-448A, R-449A, R-452A |
| Voltage / Phase | 208/230V, 1-phase, 60 Hz |
| Minimum Circuit Ampacity | 32.9 A |
| Max Fuse Size | 50 A |
| Condenser Fans | 1 |
| Condenser Airflow | 4,300 CFM |
| Discharge / Suction Line | 1/2 in / 1-1/8 in |
| Dimensions (W x H x L) | 33.2 x 34.8 x 44 in |
| Weight | 347 lb |
Ideal Applications
- Walk-in coolers for restaurants and commercial kitchens
- Convenience store and grocery cooler boxes
- Floral, produce and beverage coolers
- School, hospital and institutional food service
Frequently Asked Questions
What is the Tecumseh model number for item 2JH4001-PF?
Tecumseh item 2JH4001-PF corresponds to model ASHS9532ZNAFP1.
What refrigerants does it use?
Approved refrigerants include R-404A, R-448A, R-449A, R-452A.
What power supply is required?
208/230V 1-phase, 60 Hz, with 32.9 A minimum circuit ampacity and 50 A maximum fuse.
What else do I need?
Pair the condensing unit with a matched evaporator, expansion device, controls and line set sized to the load, installed by a qualified refrigeration technician.
