Description
Product Summary

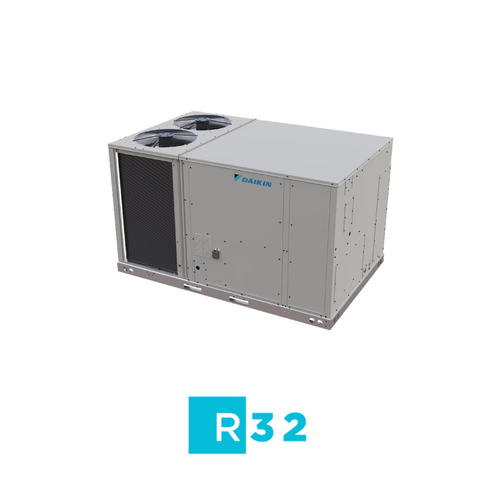

The Daikin DSG1507DL00001S is a 12.5-ton standard efficiency gas/electric packaged rooftop unit from the Daikin DSG Series 7.5-12.5 Ton lineup, built for cooling with natural gas heating on light commercial buildings. It is factory charged with low-GWP R-32 refrigerant and wired for 575/3/60 power.
Key ratings include a rated cooling capacity of 140,000 BTU/h, efficiency of 15.2 IEER / 11.4 EER, 130,000 BTU/h of gas heating input (105,300 BTU/h output). Electrical requirements are 22.8 A minimum circuit ampacity and 25 A maximum overcurrent protection. It suits contractors, facility managers and building owners replacing or adding rooftop equipment.
Key Features
- R-32 Refrigerant: Lower global warming potential refrigerant, factory charged and tested.
- Scroll Compression: 2 scroll compressors (2 stages) for reliable, quiet operation.
- Gas Heat: 130,000 BTU/h input natural gas heat with WrinkleBend heat exchanger technology.
- Direct-Drive Supply Fan: Direct-drive indoor fan for simple airflow setup and efficient operation.
- Durable Cabinet: Galvanized steel cabinet with powder-paint finish for rooftop corrosion resistance.
- Service Access: Draw-through filter section and accessible, weatherproof control box.
- Factory Wired: Single-point power entry, factory wiring and run testing speed up commissioning.
- Convertible Airflow: Field convertible between downflow and horizontal supply and return.
Specifications
| Model Number | DSG1507DL00001S |
|---|---|
| Brand / Series | Daikin DSG Series 7.5-12.5 Ton (Standard Efficiency) |
| Unit Type | Gas/Electric Packaged Rooftop Unit |
| Nominal Capacity | 12.5 Tons |
| Rated Cooling Capacity | 140,000 BTU/h |
| IEER | 15.2 |
| EER | 11.4 |
| Gas Heating Input (High Fire) | 130,000 BTU/h |
| Gas Heating Output | 105,300 BTU/h |
| Heating Efficiency | 81% Thermal Efficiency |
| Compressor | 2 scroll compressors (2 stages) |
| Refrigerant | R-32 (factory charged) |
| Supply Fan | Direct drive, standard static |
| Nominal Airflow | 4,200 CFM |
| Electrical | 575/3/60 |
| Minimum Circuit Ampacity (MCA) | 22.8 A |
| Maximum Overcurrent Protection (MOP) | 25 A |
| Shipping Weight | 1,316 lb |
| Airflow Configuration | Convertible downflow or horizontal |
| Manufacturer Warranty | 5 Years Parts, 20 Years Heat Exchanger, limited commercial warranty |
Ideal Applications
- Retail stores and strip centers
- Restaurants and quick-service kitchens
- Offices and professional buildings
- Schools, churches and community buildings
- Light industrial and warehouse spaces
- Replacement of existing light commercial rooftop units
Frequently Asked Questions
What size is the Daikin DSG1507DL00001S?
It is a nominal 12.5-ton unit with a rated cooling capacity of 140,000 BTU/h. Have a load calculation done to confirm the size for your building.
What refrigerant does it use?
It uses R-32 and ships factory charged. Service technicians should use R-32 rated tools and recovery equipment.
What power supply does it need?
This model is built for 575/3/60 power, with 22.8 A MCA and 25 A MOP.
How much gas heat does it provide?
It has a 130,000 BTU/h high-fire input with 105,300 BTU/h output. Propane conversion and high-altitude kits are sold separately.
What accessories are available?
Daikin offers roof curbs, economizers, power exhaust, hail guards, dampers and thermostats for this cabinet. Contact HVAC365 to match the right accessories.
