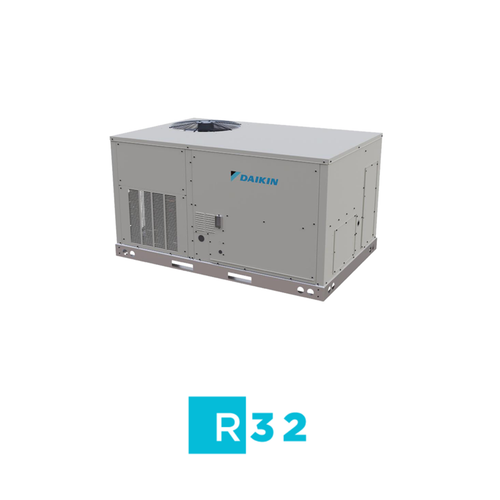

Daikin 3 Ton 14 SEER2 Packaged Rooftop Air Conditioner, R-32, 208/230V 1-Phase | DSC0361D000001S

Daikin

5 Star RatingLeave a review
No reviews yet Write a Review
SKU:
DSC0361D000001S
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives
Daikin 3 Ton 14 SEER2 Packaged Rooftop Air Conditioner, R-32, 208/230V 1-Phase | DSC0361D000001S
Condition:
New
Width:
73.38 (in)
Height:
39.88 (in)
Depth:
47.63 (in)

Questions about Daikin 3 Ton 14 SEER2 Packaged Rooftop Air Conditioner, R-32, 208/230V 1-Phase | DSC0361D000001S?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$7,406.47
  • Qualifies for FREE Shipping
25 in stock • Ships in 2-3 Business Days
Overview

Daikin 3 Ton 14 SEER2 Packaged Rooftop Air Conditioner, R-32, 208/230V 1-Phase | DSC0361D000001S

Daikin 3 Ton 14 SEER2 Packaged Rooftop Air Conditioner, R-32, 208/230V 1-Phase | DSC0361D000001S
Product details

Description

Product Summary

The Daikin DSC0361D000001S is a 3-ton standard efficiency packaged rooftop air conditioner from the Daikin DSC Series 3-6 Ton lineup, built for electric cooling (no factory heat) on light commercial buildings. It is factory charged with low-GWP R-32 refrigerant and wired for 208-230/1/60 power.

Key ratings include a rated cooling capacity of 35,000 BTU/h, efficiency of 14 SEER2 / 12 EER2. Electrical requirements are 27.2 A minimum circuit ampacity and 40 A maximum overcurrent protection. It suits contractors, facility managers and building owners replacing or adding rooftop equipment.

Key Features

  • R-32 Refrigerant: Lower global warming potential refrigerant, factory charged and tested.
  • Scroll Compression: Single-stage scroll compressor for reliable, quiet operation.
  • Direct-Drive Supply Fan: Direct-drive indoor fan for simple airflow setup and efficient operation.
  • Durable Cabinet: Galvanized steel cabinet with powder-paint finish for rooftop corrosion resistance.
  • Service Access: Draw-through filter section and accessible, weatherproof control box.
  • Factory Wired: Single-point power entry, factory wiring and run testing speed up commissioning.

Ideal Applications

  • Retail stores and strip centers
  • Restaurants and quick-service kitchens
  • Offices and professional buildings
  • Schools, churches and community buildings
  • Light industrial and warehouse spaces
  • Replacement of existing light commercial rooftop units

Frequently Asked Questions

What size is the Daikin DSC0361D000001S?

It is a nominal 3-ton unit with a rated cooling capacity of 35,000 BTU/h. Have a load calculation done to confirm the size for your building.

What refrigerant does it use?

It uses R-32 and ships factory charged. Service technicians should use R-32 rated tools and recovery equipment.

What power supply does it need?

This model is built for 208-230/1/60 power, with 27.2 A MCA and 40 A MOP.

Does it include heat?

No. It is a cooling-only unit. Field-installed electric heat kits are available for many sizes.

What accessories are available?

Daikin offers roof curbs, economizers, power exhaust, hail guards, dampers and thermostats for this cabinet. Contact HVAC365 to match the right accessories.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Daikin
Width:
73.38 (in)
Height:
39.88 (in)
Depth:
47.63 (in)
Weight:
554.00 LBS
Capacity (Tons):
3
SEER2:
14 SEER2
Refrigerant Type:
R-32
Voltage / Phase:
208/230V 1-Phase
Cooling Capacity (BTU):
35,000
EER2:
12 EER2
Compressor Stages:
Single Stage
DOE Regional Compliance:
Nationwide
Electrical Phase:
1-Phase
Electrical Frequency:
60 Hz
Minimum Circuit Ampacity (MCA):
27.2 A
Maximum Overcurrent Protection (MOP):
40 A
Breaker Size (Amps):
40
Number of Compressors:
1
Compressor Type:
Scroll
Blower Motor Type:
Direct Drive
Blower Motor HP:
0.75 HP
Airflow (CFM):
1,160
Max External Static Pressure (in. W.C.):
0.8
Filter Size:
20 x 25 x 2 (qty 2)
Condensate Drain Size:
3/4" NPT
Refrigerant Charge (oz):
46
Sound Level (dB):
72
Unit Weight:
484 lb
Shipping Weight:
554 lb
Product Height:
39.875 in
Product Width:
73.375 in
Product Depth:
47.625 in
AHRI Certified:
Yes
AHRI Reference Number:
215414886
Product Line:
DSC
Package Type:
Air Conditioner
Product Category:
Package Air Conditioner
Warranty Information:
5 Years Parts & Compressor
Model Number:
DSC0361D000001S
Nominal Capacity:
3 Tons
Rated Cooling Capacity:
35,000 BTU/h
Compressor:
Single-stage scroll compressor
Supply Fan:
Direct drive, standard static
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
5 Years Parts | Registration Required within 60 Days of Purchase
Videos3 videos
Daikin R-32 Light Commercial Rooftop Units
Frequently asked questions
What size is the ?
The is a 3 ton unit.
What is the SEER2 rating of the ?
The is rated at 14 SEER2 SEER2.
What refrigerant does the use?
It uses R-32 refrigerant.
What power supply does the need?
It requires 208/230V 1-Phase power.
How much cooling does the provide?
It is rated for 35,000 BTU of cooling.
Is the AHRI certified?
Yes. The AHRI reference number is 215414886.
What warranty comes with the DSC0361D000001S?
5 Years Parts | Registration Required within 60 Days of Purchase
Who makes the DSC0361D000001S?
The DSC0361D000001S is made by Daikin.
