Product Summary

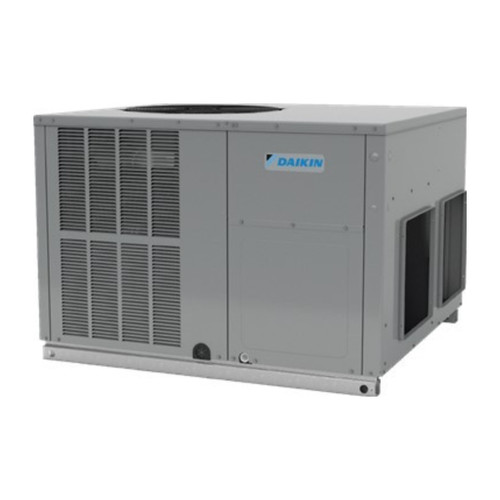

The Daikin DP3HM6033 is a 5-ton heat pump packaged unit from the Daikin DP3HM M Series. It combines cooling and heat pump heating in one outdoor cabinet and is wired for 208-230/3/60 power.
Ratings include 55,000 BTU/h rated cooling at 13.4 SEER2 / 10.6 EER2, 54,000 BTU/h heating at 47°F with 6.7 HSPF2. The multi-position cabinet suits homes, small offices and light commercial spaces on a slab or roof curb.
Key Features
- R-32 Refrigerant: Lower-GWP refrigerant, factory charged.
- Multi-Position Airflow: Convertible horizontal or downflow (downflow conversion kit DWNFLWCONV required for downflow).
- Scroll Compressor: Two-stage scroll compressor.
- Heat Pump Heating: Electric heat pump heating with optional field-installed heat kits.
- All-in-One Package: Cooling and heating components in one outdoor cabinet saves indoor space.
- Three-Phase Power: Built for 208-230/3/60 electrical service.
Specifications
| Model Number | DP3HM6033 |
|---|---|
| Series | Daikin DP3HM M Series (multi-position) |
| Nominal Capacity | 5 Tons |
| Rated Cooling Capacity | 55,000 BTU/h |
| SEER2 / EER2 | 13.4 / 10.6 |
| HSPF2 | 6.7 |
| Heating Capacity (47°F) | 54,000 BTU/h |
| Compressor | Two-stage scroll compressor |
| Refrigerant | R-32 |
| Airflow Configuration | Multi-position, convertible horizontal or downflow |
| Electrical | 208-230/3/60 |
| MCA | 27.96 A |
| MOP | 40 A |
| Shipping Weight | 500 lb |
Ideal Applications
- Single-family homes with three-phase service
- Small offices and retail spaces
- Modular and light commercial buildings
- Replacement of existing packaged units
- Slab or roof-curb installations
Frequently Asked Questions
What size is the Daikin DP3HM6033?
It is a nominal 5-ton packaged unit rated at 55,000 BTU/h cooling. A load calculation confirms the right size.
Can it be installed downflow?
Yes. The M Series cabinet is multi-position; Daikin requires downflow conversion kit DWNFLWCONV for downflow installations.
What power does it need?
This model is built for 208-230/3/60 power, 27.96 A MCA and 40 A MOP.
Which accessories fit?
Daikin M Series accessories fit this cabinet, including D14CRBPGCHMA roof curb, SQRPG square-to-round adapters, DDNECNJ economizers and DDNIFRP filter racks.
