ProTech 1/3 HP ECM Condenser Fan Motor - 208-230V, 1075 RPM, Variable Speed, CCW | 51-106394-03

ProTech

5 Star RatingLeave a review

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
51-106394-03
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives
ProTech 1/3 HP ECM Condenser Fan Motor - 208-230V, 1075 RPM, Variable Speed, CCW – 51-106394-03
UPC:
662766665208
Condition:
New
Width:
15.00 (in)
Height:
7.00 (in)
Depth:
72.00 (in)

Questions about ProTech 1/3 HP ECM Condenser Fan Motor - 208-230V, 1075 RPM, Variable Speed, CCW | 51-106394-03?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$903.80
106 in stock • Ships in 1-2 Business Days
Overview

ProTech 1/3 HP ECM Condenser Fan Motor - 208-230V, 1075 RPM, Variable Speed, CCW | 51-106394-03

ProTech 1/3 HP ECM Condenser Fan Motor - 208-230V, 1075 RPM, Variable Speed, CCW – 51-106394-03
Product details

Description

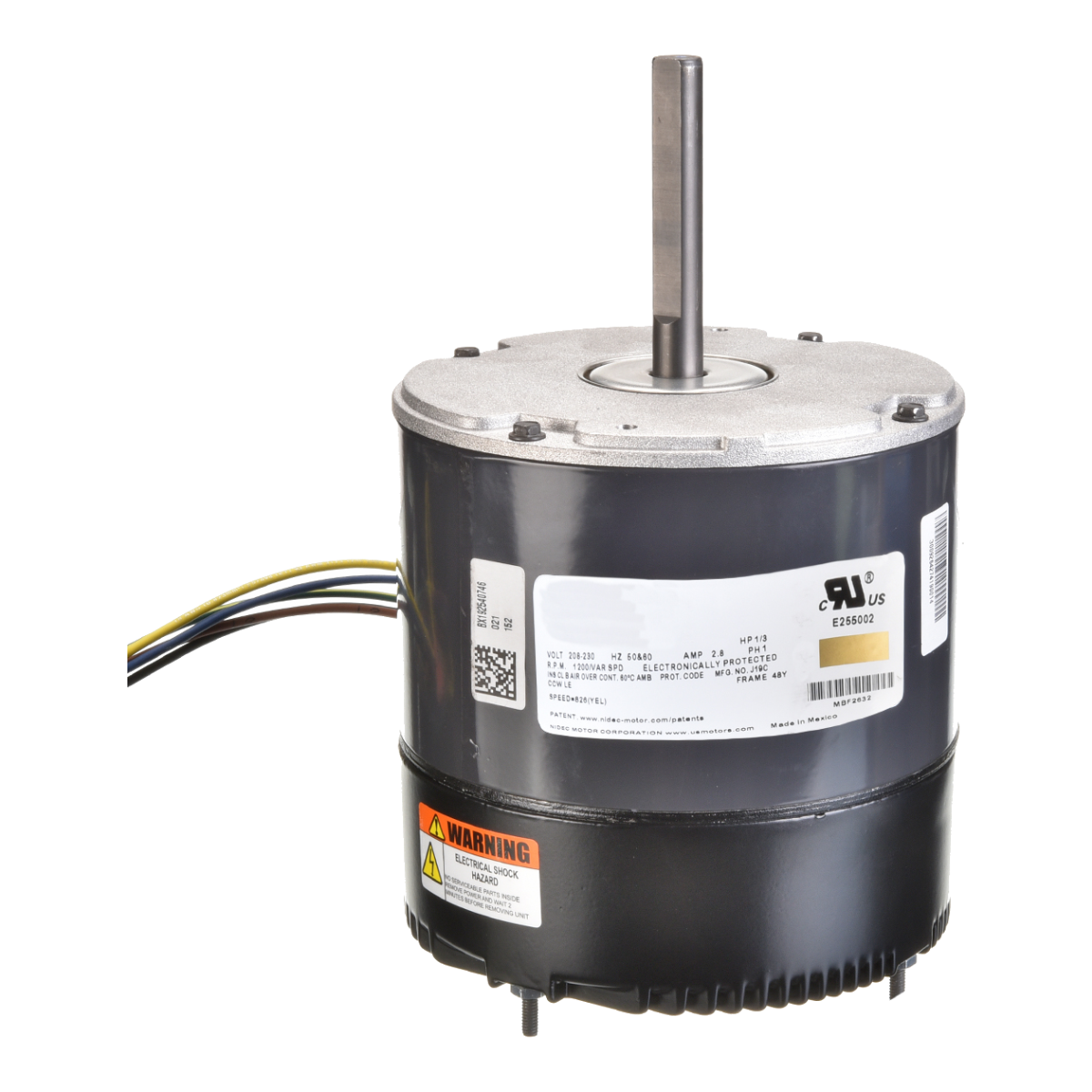

ProTech 1/3 HP ECM Condenser Fan Motor - 208-230V, 1075 RPM, Variable Speed, CCW

The ProTech 51-106394-03 is a 1/3 HP ECM condenser fan motor for 208-230 volt single-phase power, rated at 1075 RPM with variable-speed control.

It uses a 48Y frame, ball bearings, a totally enclosed non-ventilated (tenv) enclosure and a 0.5" (1/2") shaft that is 3-1/16 inches long. Rotation is counter clockwise as viewed from the shaft end. Full load current is 2.8 amps.

An ECM motor holds steady airflow across changing static pressure and uses far less power than a comparable PSC motor, which keeps the system quieter and cuts operating cost.

Before you order, match the horsepower, voltage, shaft size and mounting to the motor you are replacing, and confirm the motor is approved for your equipment model.

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
ProTech
Width:
15.00 (in)
Height:
7.00 (in)
Depth:
72.00 (in)
Weight:
1.75 LBS
Product Category:
HVAC Parts & Supplies
Product Type:
ECM Condenser Fan Motor
Motor Type:
ECM
Horsepower:
1/3 HP
Voltage:
208/230V
Electrical Phase:
1 Phase
Hertz:
60Hz
RPM:
1075
Speeds:
Variable Speed
Rotation:
CCW
Programming:
Pre-programmed
Frame Size:
48Y
Shaft Diameter:
1/2"
Shaft Length:
3-1/16
Bearing Type:
Ball
Enclosure:
Totally Enclosed Non-Ventilated (TENV)
Mount Type:
Thru-Bolt
Full Load Amps:
2.8
Duty:
(S1) Continuous Running Duty
Country of Origin:
Varies
Manufacturer Part Number:
51-106394-03
Part Type:
ECM Condenser Fan Motor
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
Covered by the Part Manufacturer Warranty
Frequently asked questions
What warranty comes with the 51-106394-03?
Covered by the Part Manufacturer Warranty
Who makes the 51-106394-03?
The 51-106394-03 is made by ProTech.
