Rheem Select 4 Ton 48,000 BTU Heat Pump Condenser R454B - Up to 14.3 SEER2 | WP14AY48AC2NA

Rheem

5 Star RatingLeave a review
No reviews yet Write a Review
SKU:
WP14AY48AC2NA
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives

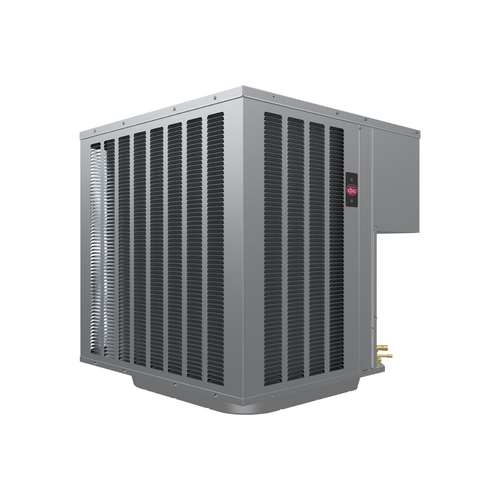

Rheem WP14AY48AC2NA - outdoor unit
Condition:
New
Width:
33.70 (in)
Height:
35.20 (in)
Depth:
33.70 (in)

Questions about Rheem Select 4 Ton 48,000 BTU Heat Pump Condenser R454B - Up to 14.3 SEER2 | WP14AY48AC2NA?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$7,616.89
25 in stock • Ships in 2-3 Business Days
Overview

Rheem Select 4 Ton 48,000 BTU Heat Pump Condenser R454B - Up to 14.3 SEER2 | WP14AY48AC2NA

Rheem WP14AY48AC2NA - outdoor unit
Product details

Description

Rheem Select 4 Ton 48,000 BTU Heat Pump Condenser R454B - Up to 14.3 SEER2

The Rheem WP14AY48AC2NA is a 4-ton Endeavor Line Select Series heat pump outdoor unit with a two-stage scroll compressor. It runs on R-454B, the lower global-warming-potential refrigerant required for new U.S. residential systems, and it is rated in the 14 SEER2 class when installed with a matched indoor unit.

Matching and efficiency

Rated efficiency depends on the indoor unit it is paired with. For the certified SEER2 and HSPF2 numbers, pair it with a Rheem air handler or coil listed for this model in the AHRI directory. HVAC365 also sells this outdoor unit as part of ready-matched split systems with the AHRI reference listed.

Installation

The outdoor unit needs its own electrical circuit and disconnect sized to the rating plate, a level pad, and a refrigerant line set matched to its connection sizes. Because R-454B is a mildly flammable (A2L) refrigerant, installation and service require a licensed HVAC technician using A2L-rated tools, which also keeps the manufacturer warranty in force.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Rheem
Width:
33.70 (in)
Height:
35.20 (in)
Depth:
33.70 (in)
Weight:
230.00 LBS
Product Category:
Heat Pump Condenser
Product Line:
WP14AY
Refrigerant Type:
R-454B
Capacity (Tons):
4
Cooling Capacity (BTU):
48,000
Product Height:
35.2 in
Product Width:
33.7 in
Product Depth:
33.7 in
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Warning:
Yes
SEER2:
14 SEER2
Compressor Stages:
Two Stage
Discharge:
Top
DOE Regional Compliance:
Nationwide
Model Number:
WP14AY48AC2NA
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Videos2 videos
Introducing the All-New Rheem® Endeavor® Line
Frequently asked questions
What refrigerant does the use?
It uses R-454B refrigerant.
What size is the ?
The is a 4 ton unit.
How much cooling does the provide?
It is rated for 48,000 BTU of cooling.
What is the SEER2 rating of the ?
The is rated at 14 SEER2 SEER2.
What warranty comes with the WP14AY48AC2NA?
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Who makes the WP14AY48AC2NA?
The WP14AY48AC2NA is made by Rheem.
