Description

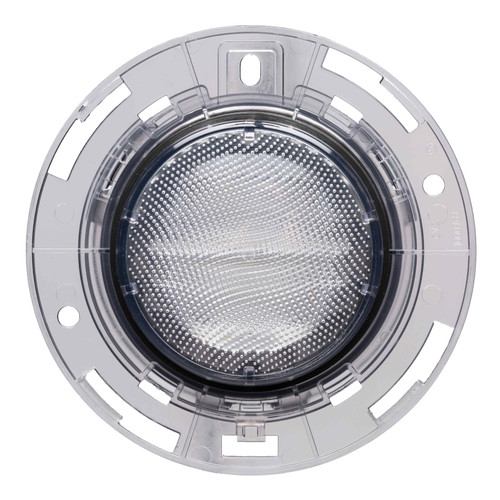

The Hayward Universal ColorLogic LED Pool & Spa Light is designed to provide customizable RGBW lighting for pools and spas. Compatible with 12 V systems and featuring a 100-foot cord, it offers multiple color and dynamic light show options to enhance any poolside environment. The thermoplastic trim allows for flexible installation across a variety of pool and spa configurations.
Quick Answer: What Is the Hayward LPCUS22100?
The Hayward LPCUS22100 is a in-ground pool light: Hayward Universal ColorLogic 2.0 LED Pool Light, 53.2 W, 12 V, 100' Cord. It is brand new, ships in 1-2 business days, and is backed by the Hayward manufacturer warranty.
Hayward LPCUS22100 Specifications
| Brand | Hayward |
|---|---|
| Equipment Type | In-Ground Pool Light |
| Model Number | LPCUS22100 |
| Cord Length | 100' |
| Light Color | Multicolor |
| Rim Material | Thermoplastic |
| Voltage | 12 V to 15 V |
| Wattage | 53.2 W |
| Application | Pool |
| Light Bulb Type | LED |
| Product Line | ColorLogic 2.0 |
Key Features
- Offers 10 solid colors and 7 dynamic light shows
- UL listed for safe installation in most pool and spa niches
- Detachable cord simplifies installation and maintenance
- Targeted light distribution reduces glare and increases coverage
- Rotatable mounting flange allows adjustment for angled niches
- Adjustable lower catch accommodates variations in plaster thickness
- Available trim options include white, gray, and stainless steel for pools
How It Works
Pool and spa lights mount in a niche in the pool wall or install as nicheless or portable fixtures. Modern LED lights use a fraction of the power of incandescent or halogen bulbs and many offer color shows that sync with automation systems. Low-voltage (12 V) fixtures require a transformer; 120 V fixtures must be GFCI protected.
How to Choose the Right In-Ground Pool Light
- Match voltage (12 V or 120 V), cord length (long enough to reach the junction box) and niche size (large or small).
- Confirm the light is compatible with the existing niche or choose a matching niche.
- For color lights, confirm compatibility with your automation or lighting controller.
- Check the pool surface type for niches: concrete, vinyl or fiberglass.
If you are replacing an existing part, the fastest way to confirm compatibility is to match the brand and model number on the old equipment. Send us the model number or a photo of the label and our team will help confirm the LPCUS22100 is the right fit before you order.
Installation and Safety
Pool lights and niches must be installed and bonded per NEC Article 680, with GFCI protection, correct junction box placement and cord length. Installation and replacement should be performed by a licensed electrician or qualified pool professional.
Maintenance Tips
- Replace lens gaskets whenever the fixture is opened.
- Check for water inside the lens.
- Test GFCI protection monthly.
- Keep cords free of damage and leave a service loop in the niche.
What's Included
This listing is for the Hayward LPCUS22100 as described in the specifications above. Plumbing, wiring, unions and accessories are not included unless they are listed in the product name or specifications.
Built for Homeowners, Pool Pros and Property Managers
- Homeowners: match your existing model number, then reach out if you want a second set of eyes on compatibility before you order.
- Pool service pros and builders: order quickly, track every shipment, and reorder common parts for your routes and builds.
- Property managers and commercial pools: standardize equipment across properties and plan replacements with help from our team.
White Paper
- Hayward LPCUS22100 Owner's Manual (PDF)
- Hayward LPCUS22100 Manual (PDF)
- Hayward LPCUS22100 Manual 2 (PDF)
- Hayward LPCUS22100 Brochure (PDF)
- Hayward LPCUS22100 Brochure 2 (PDF)
- Hayward LPCUS22100 Line Drawing (PDF)
- Hayward LPCUS22100 Line Drawing 2 (PDF)
Frequently Asked Questions About the Hayward LPCUS22100
Can I replace an incandescent light with LED?
Usually yes, as long as voltage, niche size and cord length match.
Why does my light trip the GFCI?
Water intrusion, a damaged cord or a failing fixture are common causes; have it inspected by an electrician.
How long should the cord be?
Long enough to reach the deck junction box with a service loop so the fixture can be serviced on the deck.
Is this the genuine Hayward part?
Yes. It is brand new Hayward equipment (model LPCUS22100) covered by the manufacturer warranty. Warranty terms vary by product and application; see the manufacturer documentation or ask our team.
