Name: LG 4-Port Branch Distribution Unit for Multi F MAX R32 | PMBD3641ZR
Brand: LG
SKU: PMBD3641ZR
Price: 1123.5 USD
Availability: InStock

Overview

LG 4-Port Branch Distribution Unit for Multi F MAX R32 | PMBD3641ZR

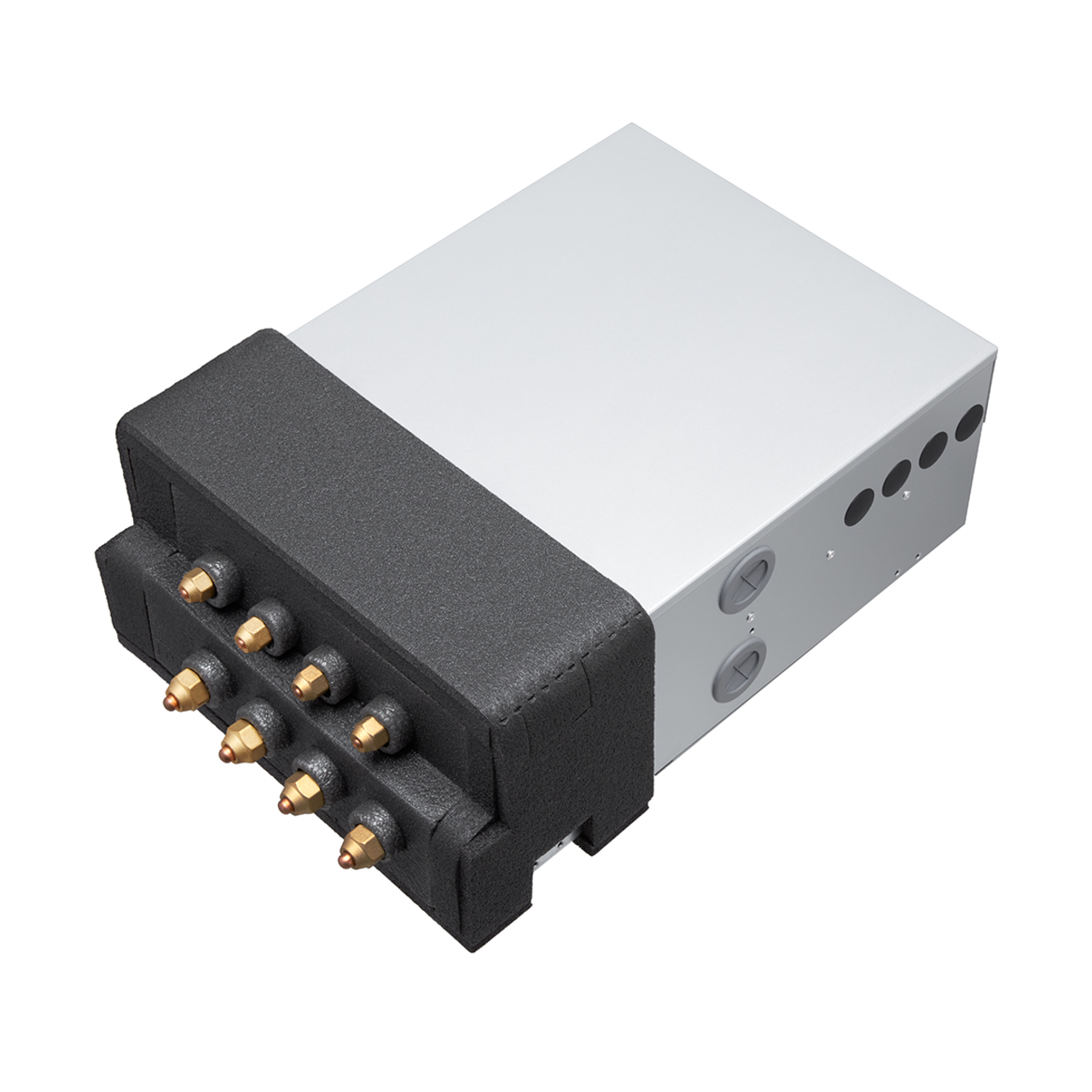

LG 4-Port Branch Distribution Unit for Multi F MAX R32, model PMBD3641ZR

Product details

Description

Overview

The LG PMBD3641ZR is a genuine LG 4-port branch distribution unit for multi f max r32. It uses R-32 refrigerant and is sold individually so it can be matched with compatible LG equipment.

Specifications

Unit Type: 4-Port Branch Distribution Unit (R-32)
Ports: 4
Maximum Capacity per Port (BTU/h): Ports A-C 24,000; Port D 36,000
Maximum Total Capacity (BTU/h): 73,000
Outdoor Side Connection: 3/8 in liquid / 3/4 in vapor (brazed)
Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
Installation: Indoor

Compatibility

Confirm the approved combination, line set sizes and electrical requirements against the LG submittal before ordering. Professional installation is recommended.

Warranty

7 Years Compressor & 5 Years Parts | Registration Required within 60 Days of Purchase

White Paper

LG PMBD3641ZR Submittal Sheet

What's in this bundle

Complete your install

Sizing helpNeed a product but don't know the size? We've got you covered.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

LG

Weight:

10.00 LBS

Prop 65 Warning:

Yes

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Category:

Mini Split Accessory

Product Line:

LG Multi F

Unit Type:

4-Port Branch Distribution Unit (R-32)

Ports:

4

Maximum Capacity per Port (BTU/h):

Ports A-C 24,000; Port D 36,000

Maximum Total Capacity (BTU/h):

73,000

Outdoor Side Connection:

3/8 in liquid / 3/4 in vapor (brazed)

Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Installation:

Indoor

Refrigerant Type:

R-32

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Energy standards

Documents & warranty

Warranty

7 Years Compressor & 5 Years Parts | Registration Required within 60 Days of Purchase

Frequently asked questions

What refrigerant does the use?

It uses R-32 refrigerant.

What warranty comes with the PMBD3641ZR?

7 Years Compressor & 5 Years Parts | Registration Required within 60 Days of Purchase

Who makes the PMBD3641ZR?

The PMBD3641ZR is made by LG.
