Name: Mitsubishi Electric 30,000 BTU 16 SEER2 Quad Zone Low Static Ducted Mini Split Heat Pump System 9+9+9+9 R454B Refrigerant | MXZ-4D30NL-SEZ-AD09NL-SEZ-AD09NL-SEZ-AD09NL-SEZ-AD09NL
Brand: Mitsubishi Electric
SKU: MXZ-4D30NL-SEZ-AD09NL-SEZ-AD09NL-SEZ-AD09NL-SEZ-AD09NL
Price: 15713.38 USD
Availability: InStock

Mitsubishi Electric 30,000 BTU 16 SEER2 Quad Zone Low Static Ducted Mini Split Heat Pump System 9+9+9+9 R454B Refrigerant | MXZ-4D30NL-SEZ-AD09NL-SEZ-AD09NL-SEZ-AD09NL-SEZ-AD09NL

Description

Overview

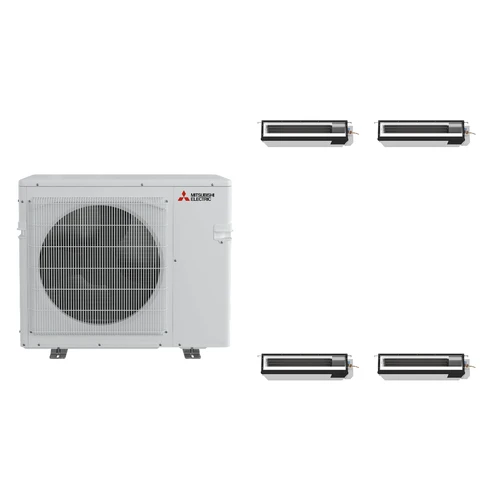

This Mitsubishi Electric multi-zone heat pump system pairs the MXZ-4D30NL outdoor unit with 4 SEZ-AD low-static ducted indoor units for quad-zone heating and cooling. Every indoor unit in this system uses the same mount style, so each room gets matching appearance, airflow and controls. The system runs on 208/230V, 1-phase, 60 Hz power and uses R-454B refrigerant.

What Is Included

1 x MXZ-4D30NL multi-zone outdoor unit (4-port, Inverter Twin Rotary compressor)
4 x SEZ-AD09NL (9,000 BTU class SEZ-AD low-static ducted)

Performance

Ducted system ratings for the MXZ-4D30NL: up to 16.1 SEER2, 9.6 EER2 and 8.8 HSPF2, with rated capacities of 27,400 BTU/h cooling and 27,600 BTU/h heating. Connected indoor capacity for this combination totals 36,000 BTU/h class (9K + 9K + 9K + 9K). Heating operation is rated down to 6 F outdoor temperature. Final efficiency depends on the exact AHRI-matched combination.

Comfort and Noise

Each zone has its own indoor unit and controller, so occupied rooms can be conditioned independently while unused rooms stay idle. The INVERTER-driven compressor modulates capacity to hold set points closely and reduce on/off cycling. Outdoor sound level is rated at 53 dB(A).

Smart Features

Wi-Fi control through the Mitsubishi Electric Comfort app is available with the optional Wi-Fi interface kit. Each indoor unit supports Mitsubishi Electric wireless or wired controllers for local zone control.

Use Case Fit

Concealed ducted indoor units sit in an attic, crawlspace or soffit and deliver air through short duct runs, keeping equipment out of sight. Confirm room loads, line set lengths and electrical requirements before ordering.

Value and Reliability

Bundling the outdoor unit with matched indoor units in one product simplifies ordering. Warranty: 7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase

Key Features

Quad-zone system: 9K + 9K + 9K + 9K
Ducted rating up to 16.1 SEER2 / 8.8 HSPF2
R-454B refrigerant
Heating down to 6 F
Single mount style throughout: Ducted

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Mitsubishi Electric

Weight:

411.00 LBS

Prop 65 Warning:

Yes

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Cooling Capacity (BTU):

30,000

Capacity (Tons):

2.5

Zones:

Mount Type:

Ducted

System Type:

Heat Pump

SEER2:

16 SEER2

EER2:

9 EER2

HSPF2:

8 HSPF2

Cold Climate:

Minimum Heating Temp (°F):

Refrigerant Type:

R-454B

Voltage (delete):

208/230V

Electrical Phase:

1-Phase

Voltage / Phase:

208/230V 1-Phase

Sound Level Outdoor (dB):

Indoor Unit Combination:

9K + 9K + 9K + 9K

Wi-Fi Control:

Optional Kit

Product Line:

MXZ Multi-Zone

AHRI Rating Basis:

Ducted system rating (submittal)

Outdoor Unit MXZ-4D30NL - Nominal Capacity (Tons):

2.5

Outdoor Unit MXZ-4D30NL - Cooling Capacity (BTU/h):

28,600

Outdoor Unit MXZ-4D30NL - Heating Capacity (BTU/h):

28,600

Outdoor Unit MXZ-4D30NL - Maximum Indoor Units (Zones):

Outdoor Unit MXZ-4D30NL - Refrigerant:

R-454B

Outdoor Unit MXZ-4D30NL - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Outdoor Unit MXZ-4D30NL - Minimum Circuit Ampacity (MCA):

28.7 A

Outdoor Unit MXZ-4D30NL - Maximum Overcurrent Protection (MOP):

48 A

Outdoor Unit MXZ-4D30NL - Compressor Type:

Inverter Twin Rotary

Outdoor Unit MXZ-4D30NL - Minimum Heating Temp (F):

5 F

Outdoor Unit MXZ-4D30NL - Sound Level (dB):

Outdoor Unit MXZ-4D30NL - Liquid Line Size:

1/4 in

Outdoor Unit MXZ-4D30NL - Suction Line Size:

1/2 in (port A); 3/8 in (ports B-D)

Outdoor Unit MXZ-4D30NL - Unit Dimensions (W x D x H):

37.41 in x 13 in x 31.34 in

Outdoor Unit MXZ-4D30NL - Unit Weight:

137 lb

Outdoor Unit MXZ-4D30NL - Shipping Weight:

163 lb

Indoor Unit SEZ-AD09NL - Type:

Ducted (Low Static)

Indoor Unit SEZ-AD09NL - Nominal Capacity (Tons):

0.75

Indoor Unit SEZ-AD09NL - Cooling Capacity (BTU/h):

8,100

Indoor Unit SEZ-AD09NL - Heating Capacity (BTU/h):

10,900

Indoor Unit SEZ-AD09NL - Refrigerant:

R-454B

Indoor Unit SEZ-AD09NL - Airflow (CFM):

194-247-317

Indoor Unit SEZ-AD09NL - Sound Level (dB):

23-26-30

Indoor Unit SEZ-AD09NL - External Static Pressure:

0.02/0.06/0.14/0.20 in.WG

Indoor Unit SEZ-AD09NL - Liquid Line Size:

1/4 in

Indoor Unit SEZ-AD09NL - Suction Line Size:

3/8 in

Indoor Unit SEZ-AD09NL - Unit Dimensions (W x D x H):

31.125 in x 27.5625 in x 7.875 in

Indoor Unit SEZ-AD09NL - Unit Weight:

42 lb

Indoor Unit SEZ-AD09NL - Shipping Weight:

62 lb

Indoor Unit SEZ-AD09NL - Quantity:

Warranty Information

7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
