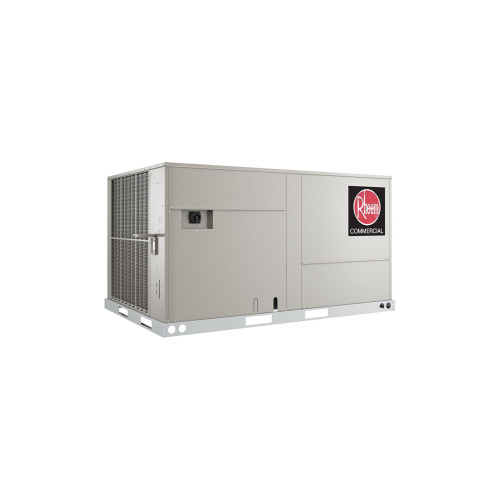

Rheem 10 Ton Commercial Heat Pump Package Unit (RHPDYB120ACG000AAAA0)
The Rheem RHPDYB120ACG000AAAA0 is a Commercial Classic Series packaged heat pump rooftop unit for light commercial buildings with 208/230 volt 3-phase service: retail, offices, restaurants, schools and churches. It heats and cools from one refrigerant circuit with no gas connection, and it ships as one self-contained cabinet for a roof curb or slab.
Cooling performance
- Nominal capacity: 10 ton (114,000 BTU/h AHRI net cooling)
- Cooling efficiency: 11.0 EER, 14.1 IEER (AHRI 340/360)
- Compressor: 1 scroll, 2-stage; RLA 26.5 A, LRA 255.0 A
- Refrigerant: R-454B (A2L), factory charged, TXV, MicroChannel coils
- Sound rating: 81 dB (AHRI 270)
Heating performance
- High temperature heating (47°F): 112,000 BTU/h, COP 3.4
- Low temperature heating (17°F): 68,000 BTU/h, COP 2.25
- Defrost: Automatic defrost control; a stage of electric heat can be energized during defrost when a heater kit is installed
Airflow and cabinet
The cabinet converts between downflow (vertical) and horizontal duct connections in the field. The indoor blower is an adjustable belt drive with a variable frequency drive (VFD), set up for medium external static, so airflow can be matched to the duct system at startup.
- Nominal airflow: 4,000 CFM
- Indoor blower: 3 HP, 3-phase, belt drive (adjustable) with VFD, 15x15 FC centrifugal, 1725 RPM, frame 56; FLA 9.2 A
- Dimensions: 60 in H x 59-1/2 in W x 90-1/8 in L (base rail); cabinet top 89 x 57-7/8
- Operating weight: 866 lb
- Shipping weight: 905 lb
- Filters: (4) 2x25x20 in. disposable, furnished
- Condensate drain: (1) 3/4 in.
Electrical
- Power supply: 208/230V 3-Phase, 60 Hz (187-253 V)
- Minimum circuit ampacity: 48 A (53 A with powered exhaust)
- Overcurrent protection: 70 A max overcurrent protection (70 A with PE); min OCP 60 A
Auxiliary electric heat
Compatible Rheem heater kits approved for this exact model and voltage: RXJJ-DD10CP (10 kW), RXJJ-DD15CP (15 kW), RXJJ-DD20CP (20 kW), RXJJ-DD30CP (30 kW), RXJJ-DD40CP (40 kW). Choose one in the "Add an Electric Heat Strip" option; the kit is sold separately and is not included in the base price. Unit MCA and overcurrent protection increase with the heater installed; size the supply circuit from the Rheem heater table for the kit you choose.
Warranty
Rheem limited warranty for commercial applications: 5-year compressor and 1-year parts. Full terms are in the Rheem warranty document for this series.
