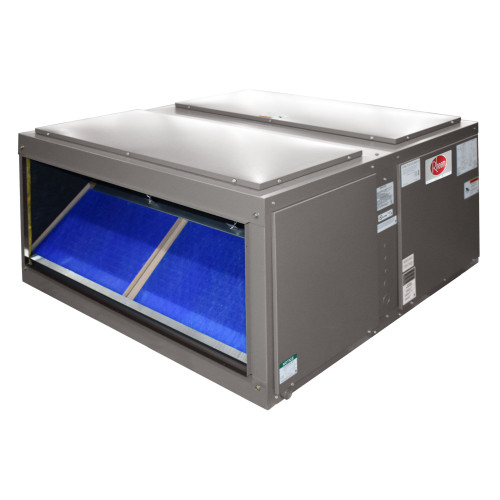

Rheem 10 Ton Commercial Heat Pump Air Handler (RHCYP2120DAS)
The Rheem RHCYP2120DAS is a RHCYP commercial heat pump air handler with an adjustable belt-drive blower and standard variable frequency drive (S = medium static). It is the indoor half of a Commercial Classic split system and is matched to the Rheem RPCY2120DAZ heat pump for R-454B.
Specifications
- Nominal capacity: 10 ton
- Airflow range: 3500-5100 CFM
- Blower: S = medium static; belt (adjustable) with standard VFD; 1725 rpm motor; motor 2 / 2 / 3 HP by drive
- Fan wheel: 18x15 in
- Coil: 3 rows / 18 FPI / 16.5 sq ft face, louvered fin, 0.375 in rifled tube
- Metering: TXV field adjustable
- Configuration: Convertible vertical upflow / horizontal sideflow
- Refrigerant connections: 5/8" liquid, 1-3/8" vapor
- Filters: 1 x 16x25 or 2 x 16x25 (MERV 8/13 accessory, p.3)
Electrical
- Power supply: 460V 3-Phase, 60 Hz
- Blower MCA (S drive): 4 A
- Blower overcurrent protection: 15/15 A
- Motor FLA / LRA: 3.0 A / 24 A
Electric heat
Rheem's RHCYP spec sheet (H11-596) lists auxiliary heater kits for the 7.5-ton RHCYP2090 only; no electric heat kit is approved for this 10-ton RHCYP2120.
Dimensions
- Width x height x length: 60.37 x 35.1 x 78.33 in
- Operating weight: 575 lb
- Shipping weight: 585 lb
Warranty
Rheem limited warranty for commercial applications: 5-year compressor and 1-year parts. Full terms are in the Rheem warranty document for this series.
