Rheem 15 kW Electric Heat Kit for Packaged Units, 208/240V 1-Phase | RXQJ-A15J

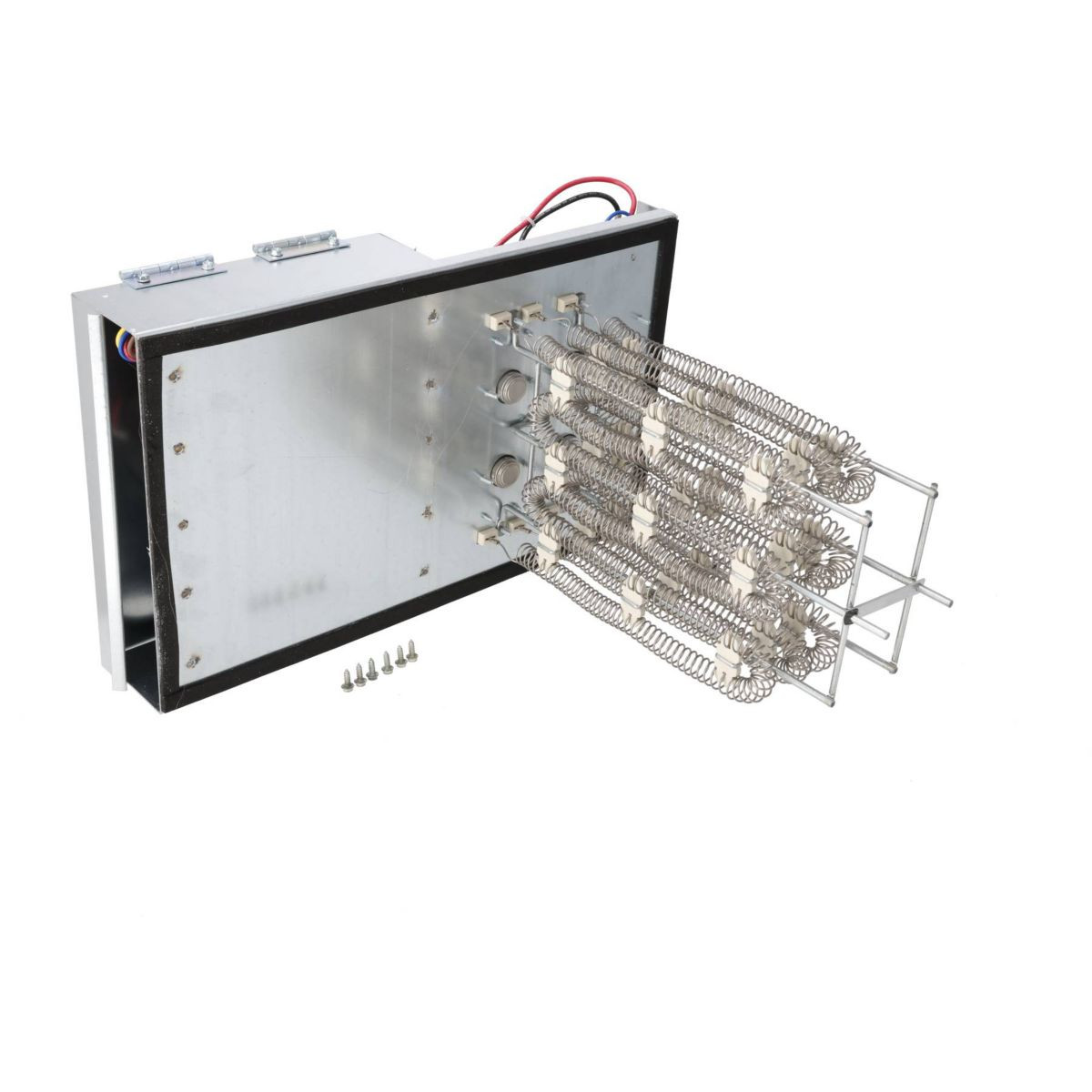

Rheem RXQJ-A15J 15 kW electric heat kit for packaged units

Product details

Description

Rheem RXQJ-A15J 15 kW Electric Heat Kit for Packaged Units

The Rheem RXQJ-A15J is a field-installed RXQJ series electric heater kit for Rheem residential packaged units. It mounts in the unit's heater section so the packaged unit's own blower delivers the heat, adding 15 kW of auxiliary heat to a packaged heat pump or turning a packaged air conditioner into an electric heating and cooling system.

Specifications

Model: RXQJ-A15J
Nominal output: 15 kW
Power supply: 208/240V, 1-phase, 60 Hz
Listed for: RACAYB036, RHPXYB036/042 (per Rheem specification sheets)

Compatibility and installation

Rheem lists the approved heater kits for each packaged unit size on the unit's specification sheet, along with the circuit sizing for single or separate power supplies. Confirm this kit is listed for your unit and that the electrical service can carry the added load. Installation by a qualified HVAC or electrical professional is required.

What's in this bundle

Complete your install

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Rheem

Width:

18.40 (in)

Height:

11.70 (in)

Depth:

18.55 (in)

Weight:

30.00 LBS

Product Category:

Electric Heat Kit

Heating Capacity (kW):

15

Heater Kit Series:

RXQJ

Voltage / Phase:

208/240V 1-Phase

Compatible Equipment:

RACAYB036, RHPXYB036/042

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Prop 65 Warning:

Yes

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty

Warranty

10 Years Parts | Registration Required within 60 Days of Purchase

Videos1 videos

Rheem Commercial: Extremely Tested. Extremely Tough.

Frequently asked questions

What power supply does the need?

It requires 208/240V 1-Phase power.

What warranty comes with the RXQJ-A15J?

10 Years Parts | Registration Required within 60 Days of Purchase

Who makes the RXQJ-A15J?

The RXQJ-A15J is made by Rheem.
