Rheem 15 Ton 14.2 IEER Commercial Air Conditioner Split System, RACY Condenser with RHCYA Belt Drive VFD Air Handler, 208/230V 3-Phase, R454B | RACY2180CAZ RHCYA2180CAS

Rheem

5 Star RatingLeave a review
No reviews yet Write a Review
SKU:
RACY2180CAZ-RHCYA2180CAS
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives
Rheem 15 Ton 14.2 IEER Commercial Air Conditioner Split System, RACY Condenser with RHCYA Belt Drive VFD Air Handler, 208/230V 3-Phase, R454B | RACY2180CAZ RHCYA2180CAS
Condition:
New
Width:
44.00 (in)
Height:
40.00 (in)
Depth:
89.90 (in)

Questions about Rheem 15 Ton 14.2 IEER Commercial Air Conditioner Split System, RACY Condenser with RHCYA Belt Drive VFD Air Handler, 208/230V 3-Phase, R454B | RACY2180CAZ RHCYA2180CAS?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$44,159.24
  • Qualifies for FREE Shipping
0 in stock • Ships in 1-2 Business Days
Overview

Rheem 15 Ton 14.2 IEER Commercial Air Conditioner Split System, RACY Condenser with RHCYA Belt Drive VFD Air Handler, 208/230V 3-Phase, R454B | RACY2180CAZ RHCYA2180CAS

Rheem 15 Ton 14.2 IEER Commercial Air Conditioner Split System, RACY Condenser with RHCYA Belt Drive VFD Air Handler, 208/230V 3-Phase, R454B | RACY2180CAZ RHCYA2180CAS
Product details

Description

Rheem 15 Ton Commercial Air Conditioner Split System (RACY2180CAZ + RHCYA2180CAS)

This AHRI-certified Rheem Commercial Classic split system pairs the RACY2180CAZ condensing unit with the RHCYA2180CAS belt-drive VFD air handler, both 208/230V 3-Phase, for light commercial buildings that need the air handler indoors in a mechanical room, mezzanine or above-ceiling platform.

System performance (AHRI 340/360)

  • AHRI reference number: 214437954
  • Rated cooling capacity: 170,000 BTU/h
  • Efficiency: 11.0 EER, 14.2 IEER
  • Refrigerant: R-454B (A2L)

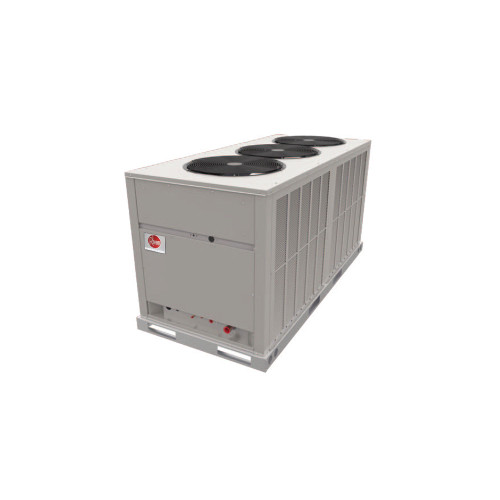

Condenser: RACY2180CAZ

  • Compressor: 2 scroll (RLA 55.4 A, LRA 357 A)
  • Power supply: 208/230V 3-Phase, 60 Hz
  • MCA / overcurrent protection: 78 A / 90/100 A (min/max)
  • Sound rating: 90 dB (AHRI 270)
  • Dimensions: 44.00 H x 89.89 L x 40.00 W in
  • Weight: 832 lb operating / 852 lb shipping

Air handler: RHCYA2180CAS

  • Blower: S = medium static; FC centrifugal belt drive (adjustable) with standard VFD; 1725 rpm motor
  • Motor HP by drive (R/S/T): R 2 / S 3 / T 5
  • Coil: 4 rows / 15 FPI / 16.5 sq ft face, louvered fin, 0.375 in rifled tube
  • Metering: TXV (field adjustable, non-bleed)
  • Configuration: Convertible vertical upflow / horizontal sideflow
  • Refrigerant connections: 7/8" liquid, 1-5/8" vapor
  • Filters: 1 x 20x25 or 2 x 20x25 (MERV 8/13 accessory, p.4)
  • Dimensions: W 61-47/50 x H 35-1/10 x L 78-25/61 in

Electric heat

Rheem's current RHCYA spec sheet (H11-595 Rev. 1) approves RXHE-AG heater kits for this air handler; they are available by special order.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Rheem
Width:
44.00 (in)
Height:
40.00 (in)
Depth:
89.90 (in)
Weight:
1,572.00 LBS
AHRI Certified:
Yes
AHRI Reference Number:
214437954
Refrigerant Type:
R-454B
Capacity (Tons):
15
Cooling Capacity (BTU):
170,000
EER:
11 EER
IEER:
14 IEER
Product Category:
Commercial Air Conditioner Split System
Product Line:
RACY / RHCYA
Outdoor Unit Model:
RACY2180CAZ
Air Handler Model:
RHCYA2180CAS
Voltage / Phase:
208/230V 3-Phase
Electrical Phase:
3-Phase
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty Information:
5 Years Compressor & 1 Year Parts
Condenser RACY2180CAZ - Nominal Capacity (Tons):
15
Condenser RACY2180CAZ - Voltage/Phase/Hz:
208/230V 3-Phase / 60 Hz
Condenser RACY2180CAZ - Minimum Circuit Ampacity (MCA):
78 A
Condenser RACY2180CAZ - Maximum Overcurrent Protection (MOP):
100 A
Condenser RACY2180CAZ - Compressor:
2 scroll
Condenser RACY2180CAZ - Sound Level (dB):
90
Condenser RACY2180CAZ - Unit Dimensions:
44.00 H x 89.89 L x 40.00 W in
Condenser RACY2180CAZ - Shipping Weight:
852 lb
Air Handler RHCYA2180CAS - Nominal Capacity (Tons):
15
Air Handler RHCYA2180CAS - Blower:
Belt drive with VFD, S = medium static
Air Handler RHCYA2180CAS - Motor HP (R/S/T drive):
R 2 / S 3 / T 5
Air Handler RHCYA2180CAS - Coil:
4 rows / 15 FPI / 16.5 sq ft face, louvered fin, 0.375 in rifled tube
Air Handler RHCYA2180CAS - Metering Device:
TXV
Air Handler RHCYA2180CAS - Voltage/Phase/Hz:
208/230V 3-Phase / 60 Hz
Air Handler RHCYA2180CAS - Liquid Line Size:
7/8 in
Air Handler RHCYA2180CAS - Suction Line Size:
1-5/8 in
Air Handler RHCYA2180CAS - Filter:
1 x 20x25 or 2 x 20x25
DOE Regional Compliance:
Nationwide
Outdoor Unit RACY2180CAZ - UPC:
662021686429
Electrical Frequency:
60 Hz
Air Handler RHCYA2180CAS - UPC:
662021686597
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Videos1 videos
Rheem Commercial: Extremely Tested. Extremely Tough.
Frequently asked questions
Is the AHRI certified?
Yes. The AHRI reference number is 214437954.
What refrigerant does the use?
It uses R-454B refrigerant.
What size is the ?
The is a 15 ton unit.
How much cooling does the provide?
It is rated for 170,000 BTU of cooling.
What power supply does the need?
It requires 208/230V 3-Phase power.
What warranty comes with the RACY2180CAZ-RHCYA2180CAS?
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Who makes the RACY2180CAZ-RHCYA2180CAS?
The RACY2180CAZ-RHCYA2180CAS is made by Rheem.
