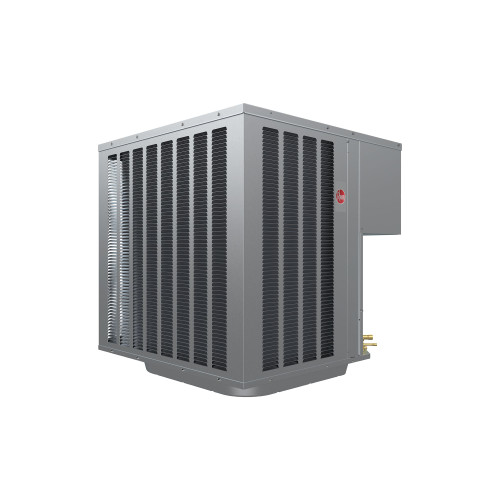

Rheem 3.5 Ton Air Conditioner Condenser (RA15AY42AC1NA)
The Rheem RA15AY42AC1NA is a Endeavor Line Classic Series RA15AY air conditioner outdoor unit built for 208/230 volt 3-phase power, the service found in many light commercial buildings, multifamily properties and offices. It is the outdoor half of a split system and must be paired with a matched R-454B indoor air handler; the AHRI-certified matches are listed below.
Performance
- Nominal capacity: 3.5 ton
- Compressor: Scroll, single-stage (RLA 12.2 A, LRA 102.8 A)
- Refrigerant: R-454B (A2L)
- Sound rating: 73 dB
AHRI-certified matched systems
Ratings below are from the AHRI Directory for this outdoor model with Rheem RH2TY air handlers. Each RH2TY rating covers both the 208/230V single-phase (J) and 460V three-phase (D) air handler versions.
| Matched air handler | Cooling BTU/h | SEER2 | EER2 | AHRI ref. |
|---|---|---|---|---|
| RH2TY4821STANA | 40,000 | 14.3 | 9.0 | 216011365 |
| RH2TY4821STANN | 40,000 | 14.3 | 9.0 | 216011361 |
| RH2TY4824MTANN | 40,000 | 13.8 | 9.0 | 216684094 |
| RH2TY4824STANN | 40,000 | 14.3 | 9.0 | 216011373 |
Electrical and connections
- Power supply: 208/230V 3-Phase, 60 Hz
- Minimum circuit ampacity: 17 A
- Maximum overcurrent protection: 25 A
- Outdoor fan FLA: 1.0 A
- Liquid line: 3/8"
- Suction line: 7/8"
Dimensions
- Height: 35.0 in
- Width x depth: 33.75 x 33.75 in
- Operating weight: 252 lb
- Shipping weight: 259 lb
Warranty
Rheem limited warranty applies per the Rheem warranty document for this series; terms differ for residential and commercial applications and require registration where stated.
