Description
Schwank 30 FT Aluminized Steel Straight Tube Kit | Primary | premierSchwank STS | TS-1030-JZ

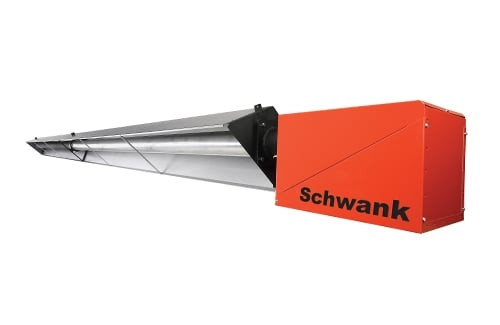

The Schwank TS-1030-JZ is a 30 ft straight tube and reflector kit for premierSchwank STS infrared tube heaters, built from aluminized steel. The radiant tube carries the hot combustion gases from the burner and gives off the infrared heat; the reflector above it aims that heat down onto the floor, so tube and reflector together decide how the heat is spread.
A primary kit is the first section after the burner and includes the parts needed to start the tube run. Combine it with a burner kit of the same series; the Schwank manual lists the approved total tube length for each burner input.
Specifications
- Brand: Schwank
- Series: premierSchwank STS
- Model: TS-1030-JZ
- Tube Length: 30 ft
- Tube Configuration: Straight
- Kit Role: Primary
- Tube & Reflector: Aluminized Steel
- Warranty: 10 Years Radiating Tubes (Registration Required within 60 Days of Purchase)
Installation Notes
- Hang from chain or cable so the tube can expand and contract freely; never use rigid hangers.
- Follow the hanger spacing, coupling torque and clearances in the Schwank manual.
- Installation by a qualified heating technician.
